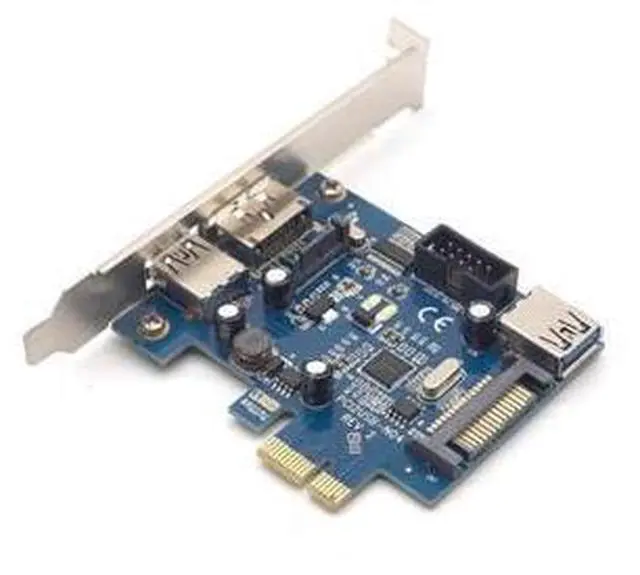

Weastlinks PCI express to 2 ports USB3.0 + Power eSATA Converter Card with 9pin USB + 15pin SATA Power Socket

Features: Compatible PCIe 1x, 4x, 8x, 16x Interface 2 x USB 3.0 Port support transfer speed up to 5Gbps ( 1 external + 1 internal ) 1 x PeSATA / USB 2.0 Combo Port ( External ) Low Profile bracket to fit HTPC or slim PC case
USB 3.0: Support Windows 8 UASP No driver needed for Windows 8 ( do not install driver in Windows 8 ) Fully compliant with PCI Express Base Specification Revision 2.0 Single-lane (x1) PCI Express Throughput Rates Up to 4.8G bps Compliant with Universal Serial Bus 3.0 Specification Revision 1.0 Fully compatible with USB 2.0, USB 1.1
Transfer Rate: 5Gbps 480Mbps, 12Mbps NEC uPD720202 Chipset Built-in
SATA Power Connector PeSATA: This 2 ports can be connected as eSATA, PeSATA, or USB 2.0. Combine with our Power over ESATA cable ( not included in package ), both 2.5" and 3.5 HDD can be supported without power supply from other sources.

Specifications

: Connect direct to SATA Hdd Data transfer up to 6Gbps ( SATA III, depends on your mother board SATA port specification), and 480Mbps (USB 2.0 ) Supports WinXP, Win Vista and windows 7/8
Kindly note: The users need to connect the SATA Connector on mainborad to the SATA port on this card, then the eSAT
Ap port will work: Only if the SATA port on the mainboard has SATAIII Signal, the external eSATAP port will support
SATAIII device: Package contents PCIe Card X 1 Low profile bracket X 1 Driver CD X 1 General manual X 1
