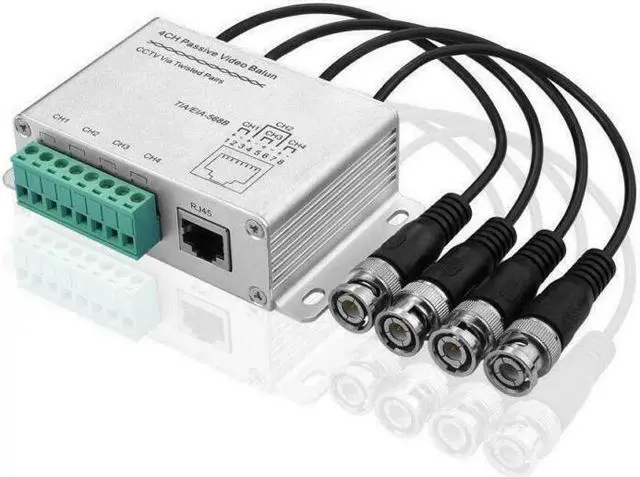

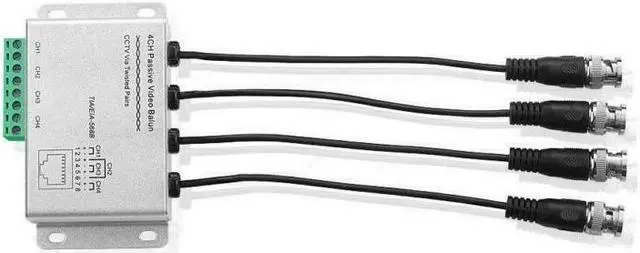

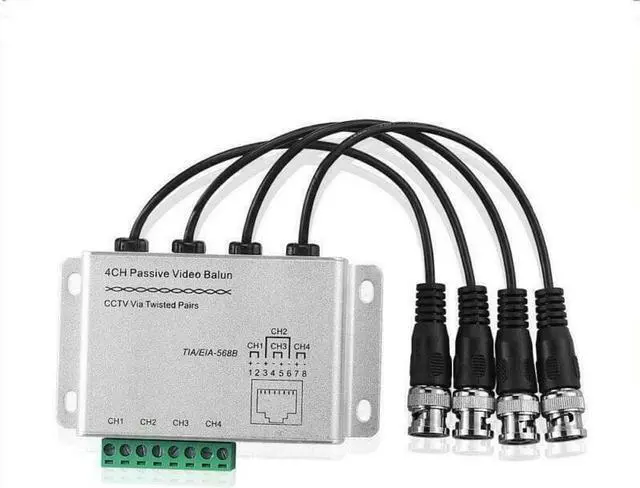

US warehouse BNC RJ45 UTP 4CH Passive HD Video Balun Cable Converter transceiver

Overviews:

4-channel Passive HD UTP Balun Transceiver, it works with passive transceivers and active transmitters allows a signal transmission of up to 300m.
It is the video signal is suitable for ordinary five types of unshielded twisted pair transmission of the balanced signal converted, can be used for video surveillance, videoconferencing and other occasions.

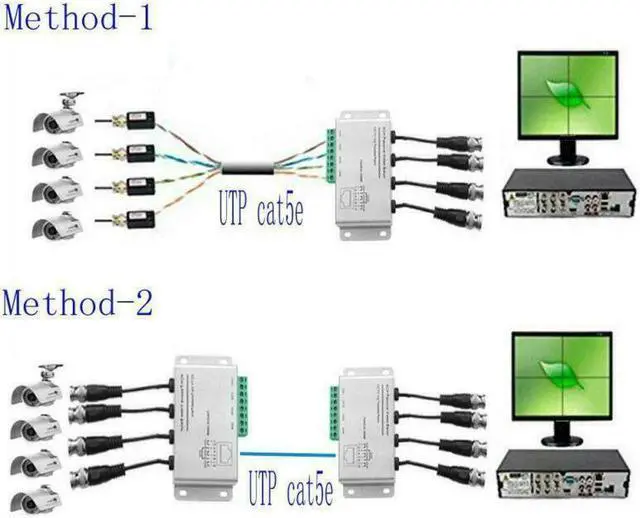

An eight core five twisted pair transmission four video signals, simplify the cabling project to save the amount of wire.
Each pair of twisted pair cables carries one channel of video signal and a common Cat-5e cable with unshielded twisted pair cables can simultaneously transmit four video signal channels.

Characteristics:
Type: Passive Video Balun
Input interface: 4 x female connector ports 1 x RJ45 female port
Output interface: 4 x BNC male ports
Video transmission Compatible format: HDCVI / HDTVI / AHD
Transmission signal: 4 channel
Transmission distance:
HDCVI 720P-300m
HDCVI 1080P-200m
HDTVI 720P / 1080P-200m
AHD 720P-300m
AHD 1080P-200m
Anti-interference: > 60db
Frequency response DC-8MHZ
Network cable type: UTP CAT5 / 5E / 6/7
Common mode rejection ratio 60DB
Impedance: BNC-75, RJ45-100
Applicable for NTSC, PAL, SECAM, CCIR standard
Operating temperature: -10 -70
Storage temperature: -30 -70
Dimensions: 105x 58x29mm (without BNC)

Note:
Please use the high quality and unshielded cat5e or more UTP cable, the bad cable or the network connection or improper construction will lead to unstable connections, video or sound interference, noise will occur.

Delivery content:
1x 4-channel passive HD UTP cable transceiver

Shipment from US warehouse delivery, saving time.
