TTXSPP Cable Adaptor for Chrysler 12+8 Programming Cable Connector for Autel DS808 Maxisys Main Test Cable for Autel DS808 Maxisys MS905 MS906 MS906BT MS906S MS908 MS908S Pro
- Replacement for Chrysler Cable Adaptor Programming Cable 12+8 Connector. This Cable Adapter can be used with Autel Maxisys series scanners ,such as MS906,MS906BT,MS906TS,MS908, MS908S, MS908S PRO, Maxisys Elite etc.
- Functions: 12+8 autel cable, use with Autel MaxiSys scanner to diagnose on chrysler renegade wrangler 300C after 2018 year. The autel 12+8 connector adapter is Autel's bypass for Chrysler's Security Gateway Module (SGM).
- High-quality & Durability: Plug & play, stable transmission, anti-jamming. High-quality materials give the cable superior flexibility and durability.

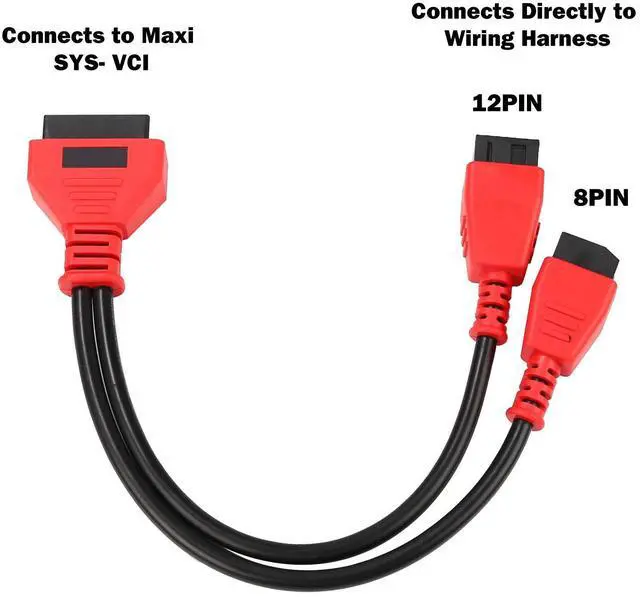

- How to use? Just 3 step to use it. First locate and unplug the 12pin and 8pin connectors of the SGW module. And then connect the FCA 12+8 directly to the 12pin and 8pin (two connectors connected to the SGW) connector on the car. At this point, normal communication with the car can be achieved.
- Satisfied Customer Service: TTXSPP Cable Adaptor for Chrysler 12+8 provide satisfied aftermarket service. Any question please click "TTXSPP-US" ASK A QUESTION, we'll reply to you in 24 Hours.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
TTXSPP Cable Adaptor for Chrysler 12+8 Programming Cable Connector for Autel DS808 Maxisys
Why choose this cable ?
The Chrysler 12+8 Adapter is Autel's bypass for Chrysler's Security Gateway Module (SGM) which limits an aftermarket scan tool to only reading DTCs and viewing data.
2018 and newer Chrysler, Dodge, Ram, Jeep, and Fiat now have a secure gateway module or SGM. This SGM will not allow your scan tool to do bidirectional controls on the vehicle. Autel has provided a cable to bypass the SGM. The new Chrysler 12+8 Diagnostic Cable allows communication with latest model Chrysler, Dodge, Jeep, Fiat & Alfa vehicles.
Suitable for:
The Cable Adapter can be used with Autel Maxisys Series Scanners, such as MS906,MS906BT,MS906TS,MS908, MS908S, MS908S PRO, Maxisys Elite etc.
What is it used for?
1. Use with Autel MaxiSys scanner to diagnose on Chrysler Jeep Renegade Wrangler 300C after 2018 year
2. Most 2018 and newer FCA vehicles include a Security Gateway Module.
Perform Active Tests
Required to Access 80% of 2018 for Chrysler and for Fiat vehicles
Required to Access 100% of 2019 for Chrysler and for Fiat Vehicles
Chrysler 12+8 Adapter needed on Vehicles with Secure Gateway
Module:
2013+ RAM Promaster2015+ Fiat 500x2015+ RAM Promaster City2016+ Jeep Renegade2017+ Alfa Romeo Giulia2017+ Jeep Compass2017+ Jeep Cherokee2018+ Jeep Wrangler2018+ Ram Trucks2018+ Dodge Durango2018+ Jeep Wrangler (JL Body only, not JK)2018+ Dodge Journey2018+ Jeep Grand Cherokee2018+ Chrysler Pacifica2018+ Chrysler 3002018+ Dodge Charger2018+ Dodge Challenger2019+ Most Fiat/ Chrysler/ Jeep/ Ram vehicles2020+ ALL FCA vehicles
Package List:
1pc x Cable Adaptor
