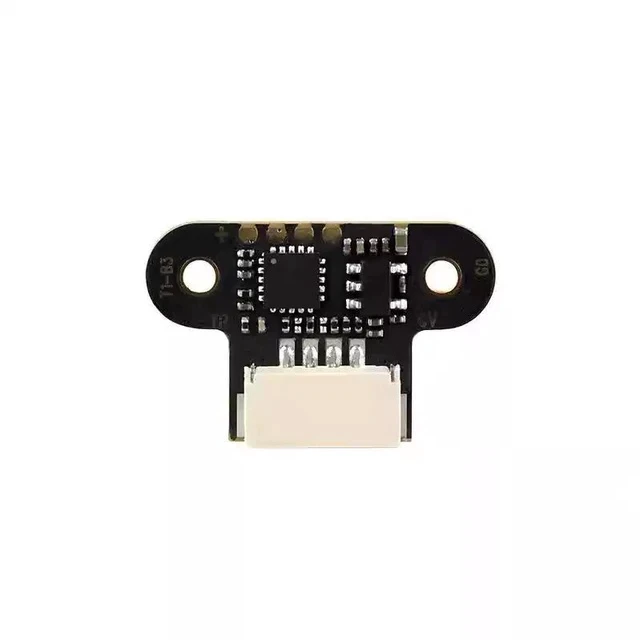

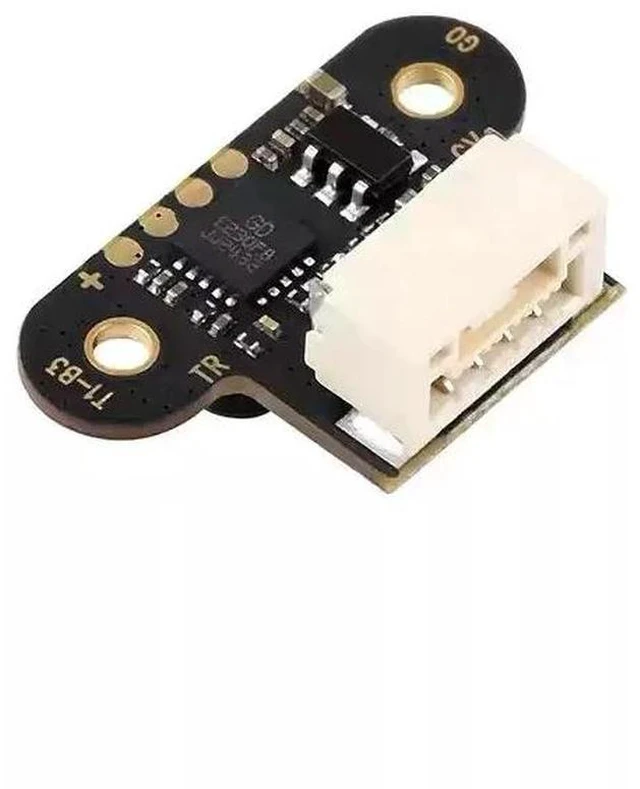

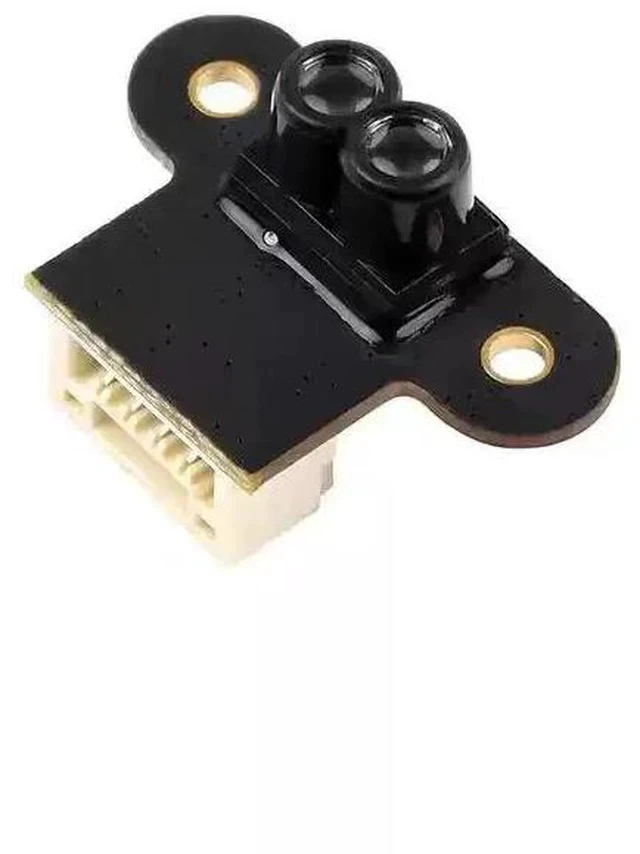

Miniature TOF Laser Range Sensor Module UART / I2C Serial Interface, LiDAR Distance Measurement for Robotics / Drones / Obstacle Avoidance
- Typical Ranging Range 0.02m ~ 7.8m
- Typical Ranging Accuracy 0.02m ~ 7.8m ± 4cm
- Wavelength 940nm
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Miniature TOF Laser Range Sensor Module UART / I2C Serial Interface, LiDAR Distance Measurement for Robotics / Drones /
Obstacle Avoidance MPN: 666ZP0803ZP. 202629 Typical Ranging Range 0.02 m ~ 7.8 m Typical Ranging Accuracy 0.02 m ~ 7.8 m ± 4cm Wavelength 940nm Field of View (FOV) 2° ~ 3°
Communication Interface Default: UART (TTL signal level 3.3V ) I²C (supports parallel connection of multiple modules, slave
address: 0x08 + Module ID) I/O complementary level output (this mode does not provide distance data)
Communication Baud Rate UART: 4.8K bps ~ 3000Kbps (default 921.6K bps)
I²C: up to 400Kbps Supply Voltage 4.3V ~ 5.2V
Obstacle Avoidance MPN: 666ZP0803ZP. 202629 Typical Ranging Range 0.02 m ~ 7.8 m Typical Ranging Accuracy 0.02 m ~ 7.8 m ± 4cm Wavelength 940nm Field of View (FOV) 2° ~ 3°
Communication Interface Default: UART (TTL signal level 3.3V ) I²C (supports parallel connection of multiple modules, slave
address: 0x08 + Module ID) I/O complementary level output (this mode does not provide distance data)
Communication Baud Rate UART: 4.8K bps ~ 3000Kbps (default 921.6K bps)
I²C: up to 400Kbps Supply Voltage 4.3V ~ 5.2V
