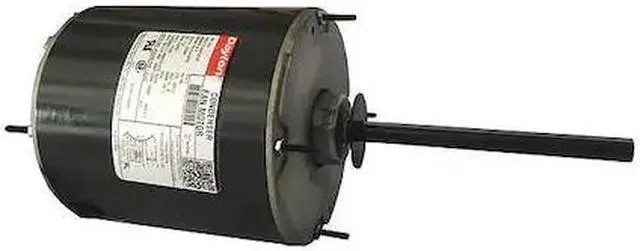

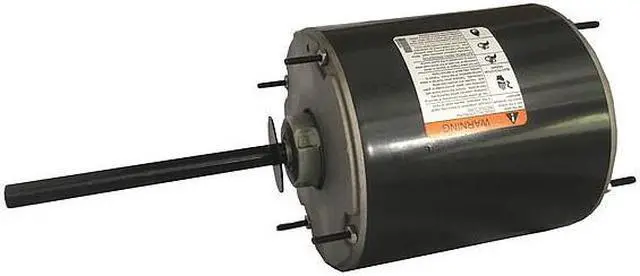

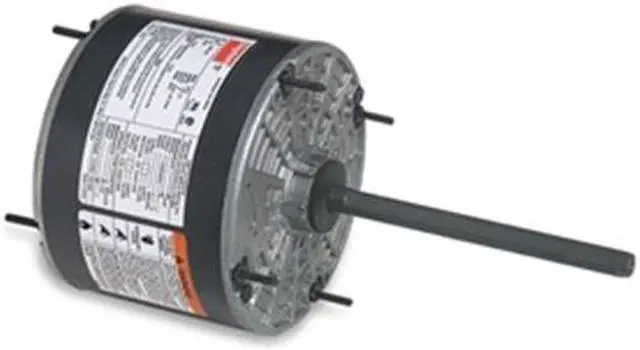

DAYTON 3M769 Condenser Fan Motor,3/4 HP,1075 rpm,60Hz
- The brand for this item is DAYTON
- This item ships free
- This item ships directly from Zoro
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Condenser Fan Motor, Motor Design Permanent Split Capacitor, Phase Single, 3/4 HP, No. of Speeds 2, Voltage 208-230V AC, Motor Shaft Rotation CW/CCW, 48YZ Frame, Motor Enclosure Design Totally Enclosed Air-Over, Stud Motor Mounting Type, Motor Mounting Position All Angle, Shaft Dia. 1/2 in, Shaft Length 5 in, Motor Thermal Protection Auto, Max. Ambient Temp. 60 Degrees C, Nameplate RPM 1, 075, HVAC/R, Condenser Fan, 60 Hz, Full Load Amps 4.0 - 4.5 A, Ins.
Class B, Motor Service Factor 1. This item has been restricted from sale in the following state (s): []
Class B, Motor Service Factor 1. This item has been restricted from sale in the following state (s): []
