Electric Water Heater Thermostats
We supply many assortments to meet your replacement needs to maintain or repair your water heaters. You can get thermostats, heating elements, element replacement tool etc...
Why Us
With many years experience in HVAC maintain and repair market, we know what's good quality and the best choice that our customers need. We dedicated to improve customers' life of quality with our expertise.
ELECTRIC WATER HEATER THERMOSTATS

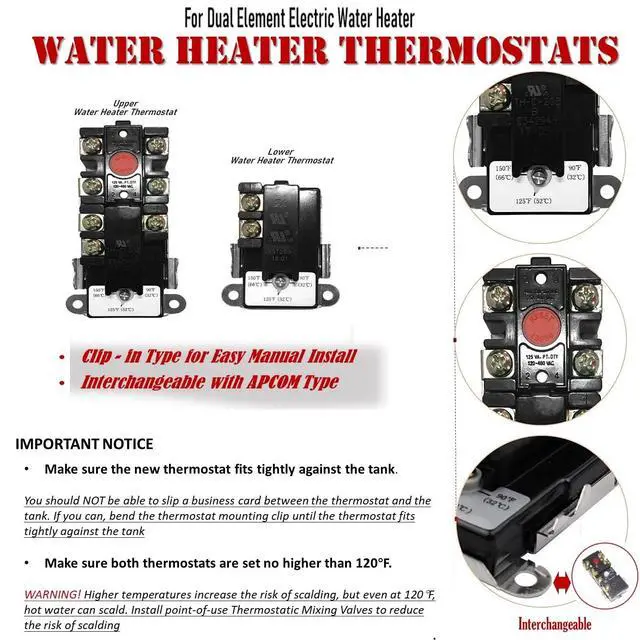

Important Notices
- Make sure the new thermostat fits tightly against the tank.
You should NOT be able to slip a business card between the thermostat and the tank. If you can, bend the thermostat mounting clip until the thermostat fits tightly against the tank
- Make sure both thermostats are set no higher than 120°F.
WARNING! Higher temperatures increase the risk of scalding, but even at 120°F, hot water can scald. Install point-of-use Thermostatic Mixing Valves to reduce the risk of scalding
- We Preserve a Good Name
- We Emphasize the Innovation
- We provide a Easy Life Style

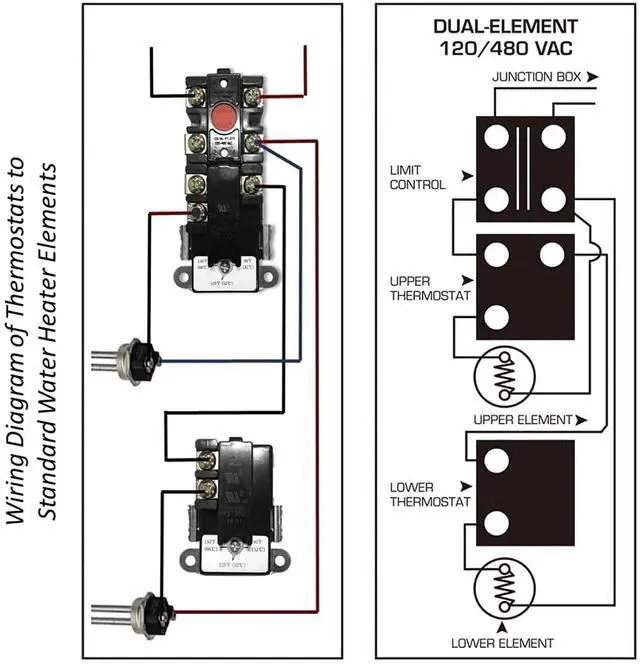

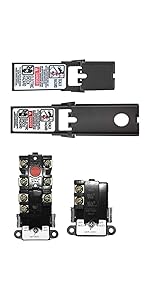

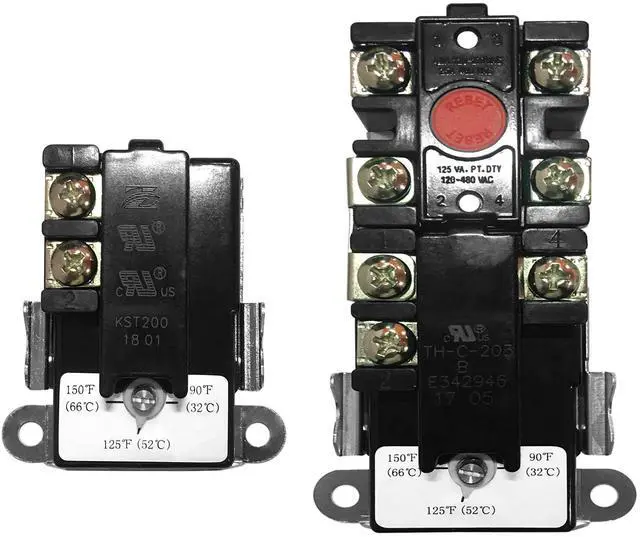

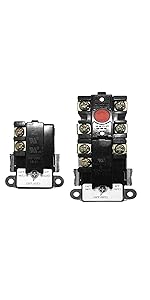

Upper & Lower Electric Water Heater Thermostat

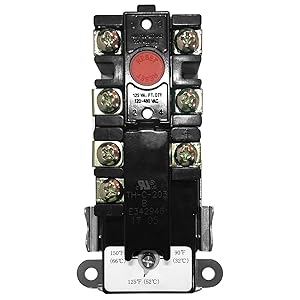

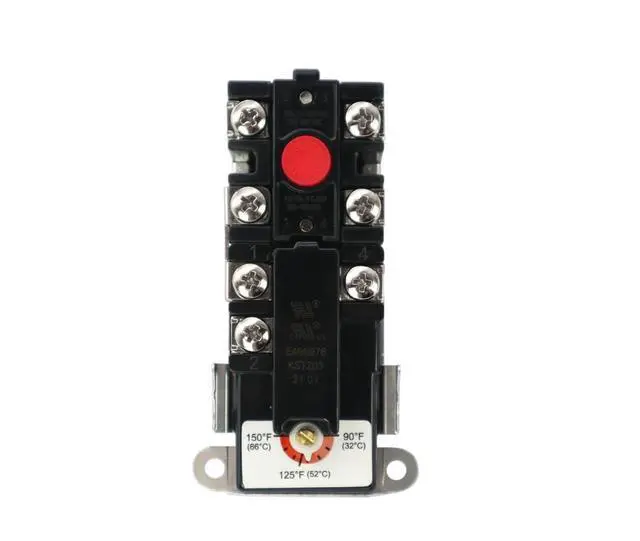

Upper Non-Simultaneous Thermostat
For dual element tanks
- Double Throw, 120/240/480 VAC
- Energy saving range setting.
- Built in safety switch to prevent overheating.
- Cross-reference: 59T SPDT+66T .

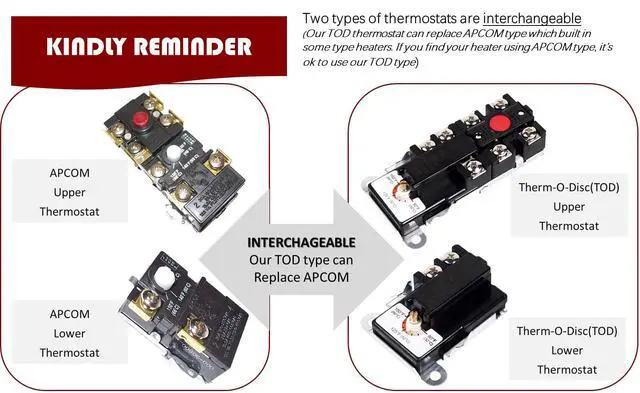

- TOD style and compatible with Apcom style
- Reset Button, Temp. set Adjustable

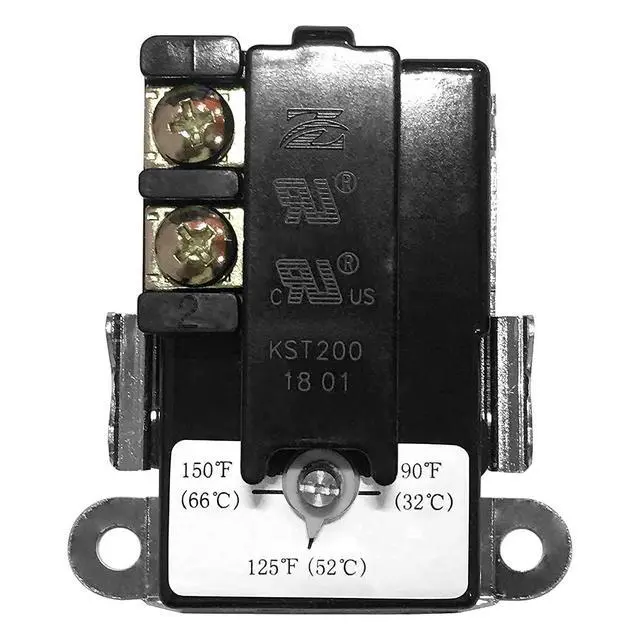

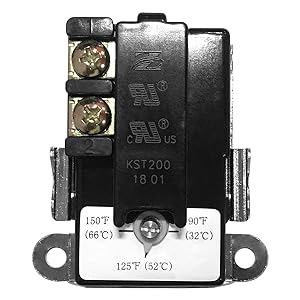

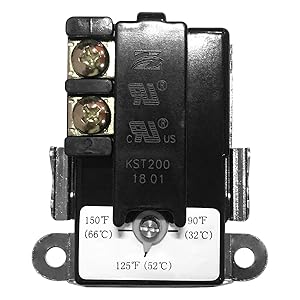

Lower Non-Simultaneous Thermostat
For dual element tanks
- Single Throw, 120/240/480 VAC
- Energy saving range setting.
- Built in safety switch to prevent overheating.
- Cross-reference: 59T
- TOD style and compatible with Apcom style
- Temperature Setting Adjustable.

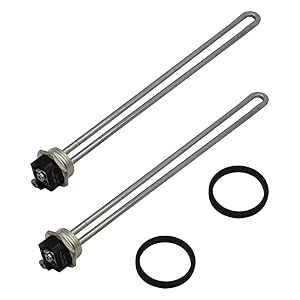

Heating Element
Heater Heating Element
- 4500W @ 240V (3500V @208V)
- Copper material with Chrome coating
- High density wattage
New element can improve the heating efficiency and save electric power cos
WHAT WE CAN OFFER
- Electric Water Heater Thermostats
- Electric Heater Heating Elements
- Powered Anode Rod
- Heater Parts Repair Tools
Assortment Contents
 EWH-00 |  EWH-00C |  EWH -01 |  EWH-02 |  EWH-03 | |
|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — |
| Price | — | — | — | — | — |
| Voltage | 120/240/480 VAC | 120/240/480 VAC | 120/240/480 VAC | 120/240/480 VAC | 120/240/480 VAC |
| Suitable Heater | Dual Elements Heater | Dual Elements Heater | Dual Elements Heater | Dual Elements Heater | Dual Elements Heater |
| Suitable Heater Size | Most double element heaters | Most double element heaters | = 30 Gal&=14" Tank | = 30 Gal&=14" Tank | = 30 Gal&=14" Tank |
| Heating Element Wattage | Not Included | Not Included | 4500W @ 240V (3500W@208V) | 4500W @ 240V (3500W@208V) | 4500W @ 240V (3500W@208V) |
| Temp. Adjustable | ? | ? | ? | ? | ? |
| Temp. Range | 90F ~ 150F | 90F ~ 150F | 90F ~ 150F | 90F ~ 150F | 90F ~ 150F |
| Heating Elements Type | Not Included | Not Included | Screw-in Flange | Screw-in Flange | Screw-in Flange |
| Element Thread Size | Not Included | Not Included | 1“(D) x 11-1/2“NPSM | 1“(D) x 11-1/2“NPSM | 1“(D) x 11-1/2“NPSM |
| Element Insert Size | Not Included | Not Included | 13-9/16" | 13-9/16" | 13-9/16" |

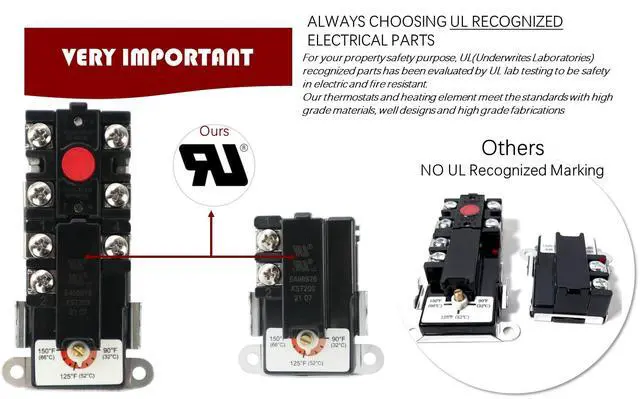

| Certification | UL | UL | UL | UL | UL |
Electric Water Heater Thermostats
We supply many assortments to meet your replacement needs to maintain or repair your water heaters. You can get thermostats, heating elements, element replacement tool etc...
ELECTRIC WATER HEATER THERMOSTATS
Why Us
With many years experience in HVAC maintain and repair market, we know what's good quality and the best choice that our customers need. We dedicated to improve customers' life of quality with our expertise.
Important Notices
- Make sure the new thermostat fits tightly against the tank.
You should NOT be able to slip a business card between the thermostat and the tank. If you can, bend the thermostat mounting clip until the thermostat fits tightly against the tank
- Make sure both thermostats are set no higher than 120°F.
WARNING! Higher temperatures increase the risk of scalding, but even at 120°F, hot water can scald. Install point-of-use Thermostatic Mixing Valves to reduce the risk of scalding
- We Preserve a Good Name
- We Emphasize the Innovation
- We provide a Easy Life Style
Upper & Lower Electric Water Heater Thermostat
Upper Non-Simultaneous Thermostat
For dual element tanks
- Double Throw, 120/240/480 VAC
- Energy saving range setting.
- Built in safety switch to prevent overheating.
- Cross-reference: 59T SPDT+66T .
- TOD style and compatible with Apcom style
- Reset Button, Temp. set Adjustable
Lower Non-Simultaneous Thermostat
For dual element tanks
- Single Throw, 120/240/480 VAC
- Energy saving range setting.
- Built in safety switch to prevent overheating.
- Cross-reference: 59T
- TOD style and compatible with Apcom style
- Temperature Setting Adjustable.
Heating Element
Heater Heating Element
- 4500W @ 240V (3500V @208V)
- Copper material with Chrome coating
- High density wattage
New element can improve the heating efficiency and save electric power cos
WHAT WE CAN OFFER
- Electric Water Heater Thermostats
- Electric Heater Heating Elements
- Powered Anode Rod
- Heater Parts Repair Tools

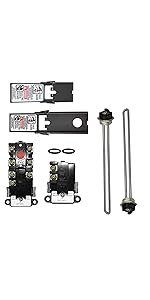

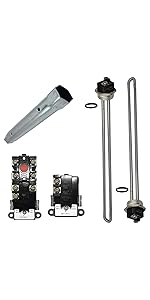

Assortment Contents
| ITEM Number | CONTENTS |

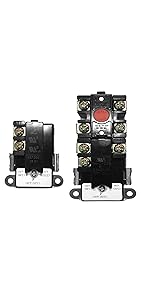

| EWH-00 | Lower and Upper Thermostat |

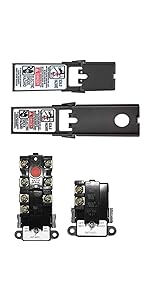

| EWH-00C | Thermostats + Terminal Covers |

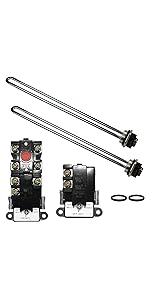

| EWH-01 | Thermostats + Water Heater Elements |
| EWH-02 | Thermostats + Water Heater Elements + Terminal Covers |
| EWH-03 | Thermostats + Water Heater Elements + Element Wrench |
| EWH-04 | Thermostats + Water Heater Elements + Terminal Covers + Element Wrench |
| EWH-05 | Thermostats + Water Heater Elements + Terminal Covers + Element Wrench + Water Drain Board |
 EWH-00 |  EWH-00C | EWH -01 | EWH-02 | EWH-03 | |
|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — |
| Price | — | — | — | — | — |
| Voltage | 120/240/480 VAC | 120/240/480 VAC | 120/240/480 VAC | 120/240/480 VAC | 120/240/480 VAC |
| Suitable Heater | Dual Elements Heater | Dual Elements Heater | Dual Elements Heater | Dual Elements Heater | Dual Elements Heater |
| Suitable Heater Size | Most double element heaters | Most double element heaters | = 30 Gal&=14" Tank | = 30 Gal&=14" Tank | = 30 Gal&=14" Tank |
| Heating Element Wattage | Not Included | Not Included | 4500W @ 240V (3500W@208V) | 4500W @ 240V (3500W@208V) | 4500W @ 240V (3500W@208V) |
| Temp. Adjustable | ? | ? | ? | ? | ? |
| Temp. Range | 90F ~ 150F | 90F ~ 150F | 90F ~ 150F | 90F ~ 150F | 90F ~ 150F |
| Heating Elements Type | Not Included | Not Included | Screw-in Flange | Screw-in Flange | Screw-in Flange |
| Element Thread Size | Not Included | Not Included | 1“(D) x 11-1/2“NPSM | 1“(D) x 11-1/2“NPSM | 1“(D) x 11-1/2“NPSM |
| Element Insert Size | Not Included | Not Included | 13-9/16" | 13-9/16" | 13-9/16" |
| Certification | UL | UL | UL | UL | UL |
