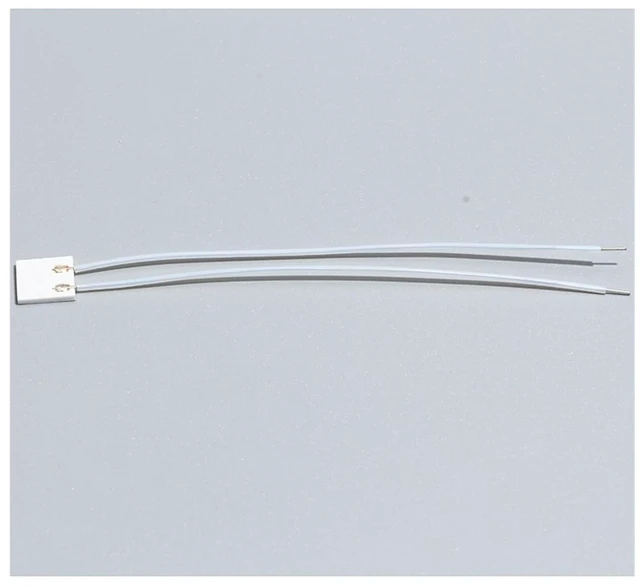

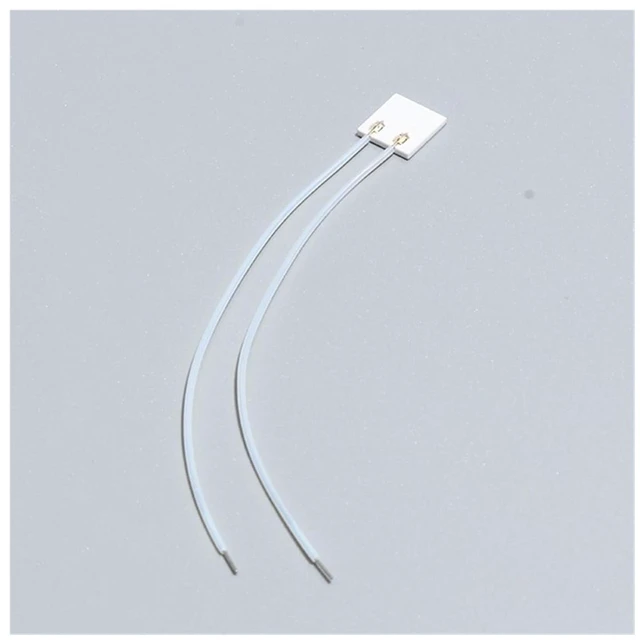

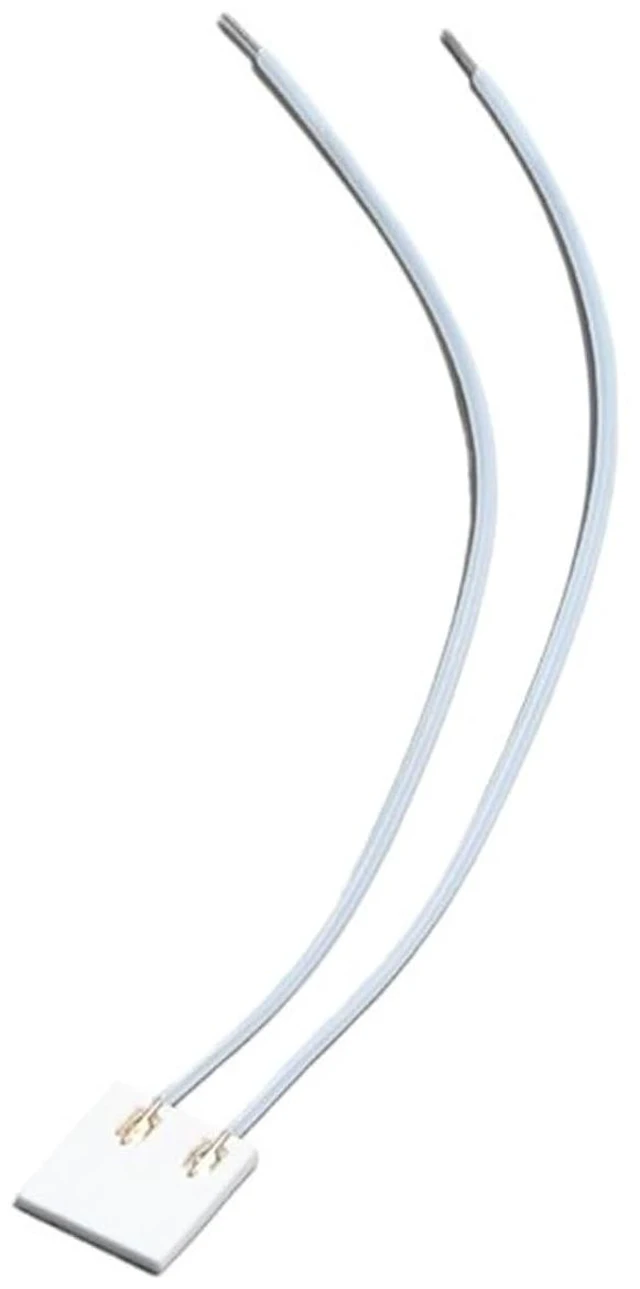

MCH Heater 5x5x2mm Micro high Temperature Ceramic Heating Plate 3.7V 1.3W/5V 2W/9V 8W/12V14W Kindly (Color : 5x5x2mm, Size : 12V14W)

MCH is the abbreviation of Metal Ceramics Heater, which means metal ceramic heating element. MCH refers to a ceramic heating body formed by printing metal tungsten or molybdenum-manganese paste on a ceramic casting blank, hot pressing and laminating, and then sintering ceramic and metal together under the protection of 1600 hydrogen atmosphere. high temperature resistance, long life, high efficiency and energy saving, uniform temperature, good thermal conductivity, fast thermal compensation speed, etc. MCH heating element, MCH ceramic heating element, cermet heating element, alumina ceramic heating element, HTCC ceramic heating element, and HTCC ceramic heating element heating component.

Specifications

: Product
Name: MCH Micro high temperature heating pad

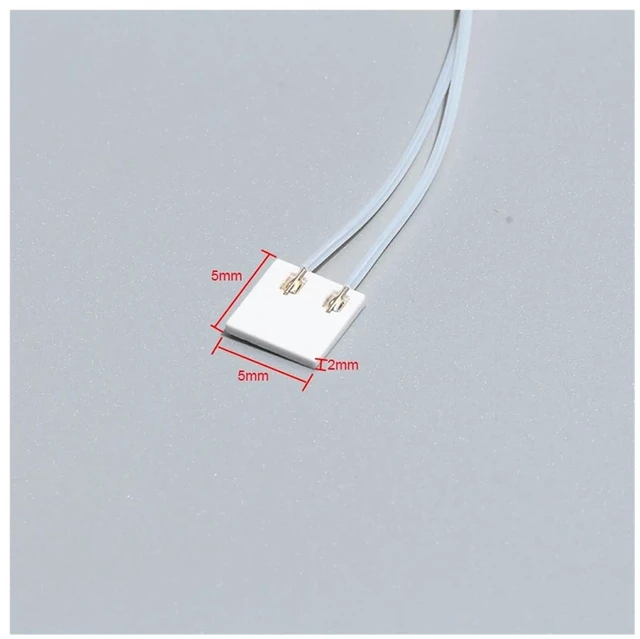

Size: 5x5x2mm
Plate Material: high-density tungsten paste printing heating material
Lead wire material: high temperature 0.5 mm nickel wire + PTFE sheath
Working temperature: within 500 Degree
Base plate: white multilayer alumina ceramic, - Al2O3 content is not less than 95% Sleeve, adhesive
tape: high temperature resistant adhesive tape
Resistance: tungsten and other high-temperature materials
Package: 1pc Mch heater Performance and characteristics
1. Simple structure, shape, size and resistance power can be produced according to customer requirements;
2. Good thermal uniformity and high power density: 45 W/cm2;
3. Resistance-temperature change is linear, and temperature can be easily controlled by controlling resistance or vol
