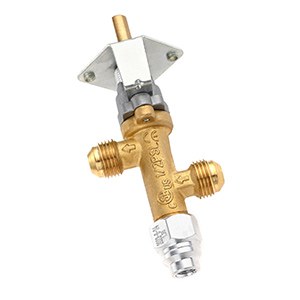

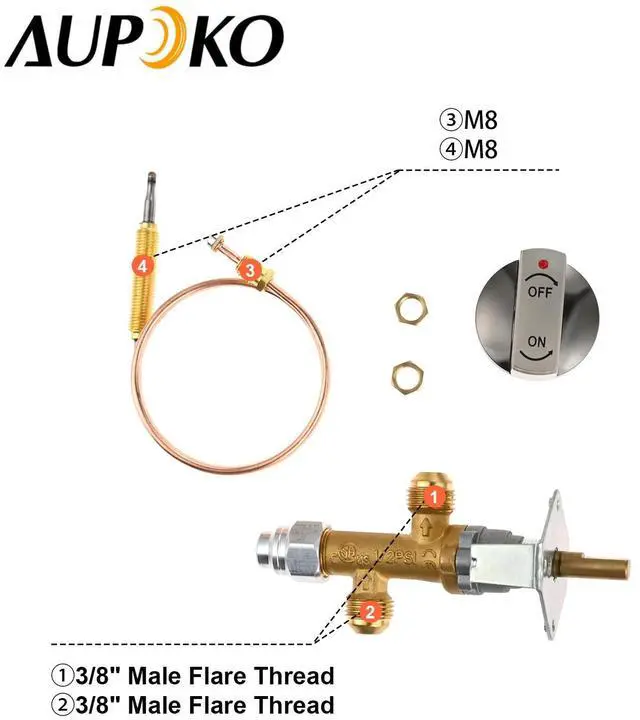

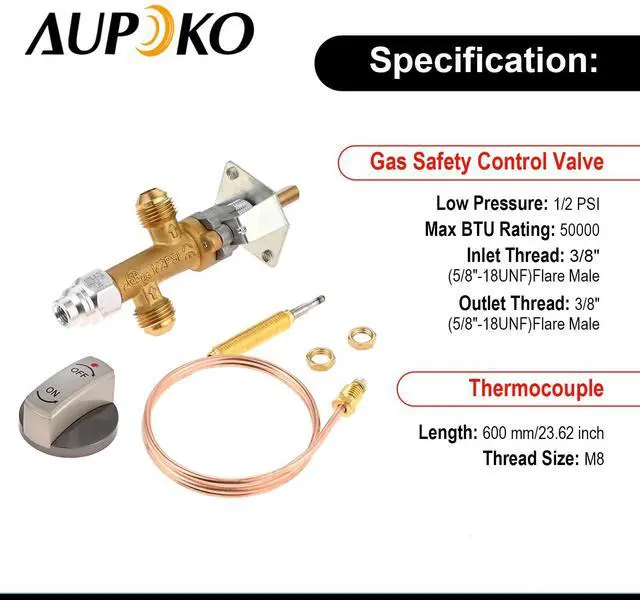

Gas Safety Control Valve
Low Pressure: 1/2 PSI
Max BTU Rating: 50000

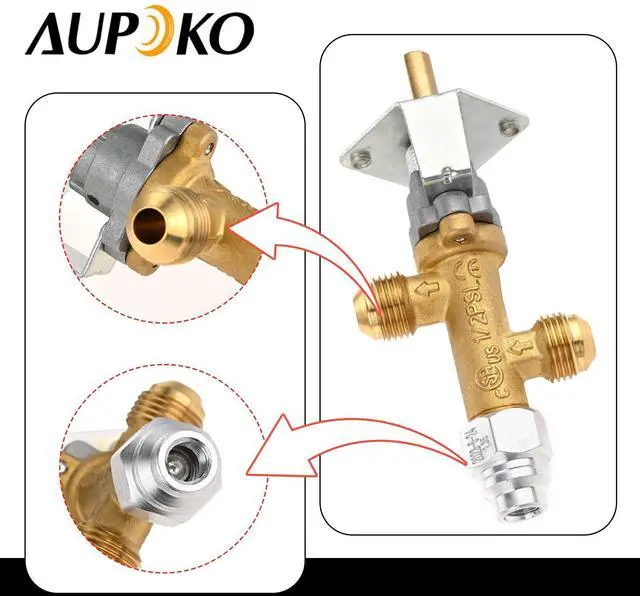

Inlet Thread: 3/8" (5/8"-18UNF)Flare Male
Outlet Thread: 3/8" (5/8"-18UNF)Flare Male

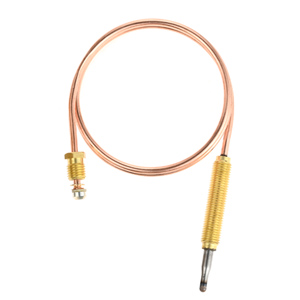

Thermocouple
Length: 600 mm/23.62 inch
Thread Size: M8

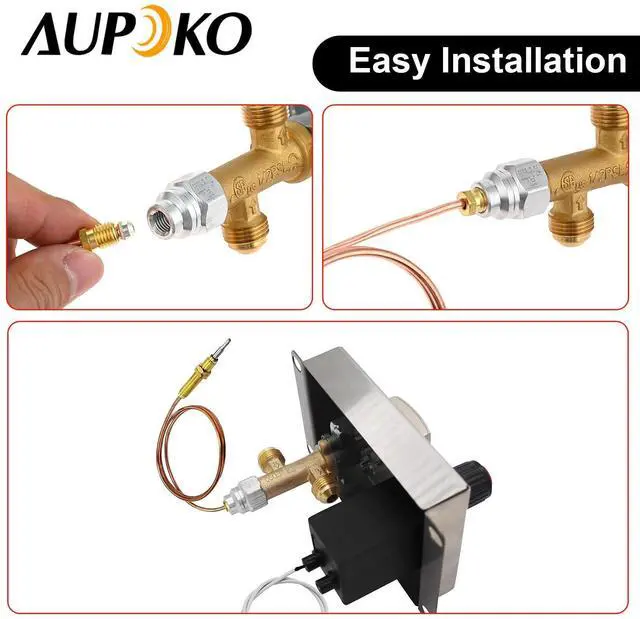

Easy Installation

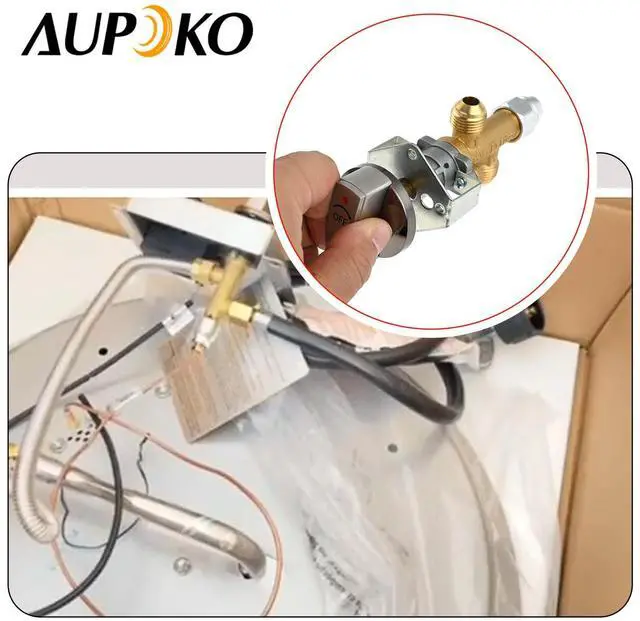

Installed vertically at the opening of the equipment container. Secure the safety control valve with screws through four threaded holes

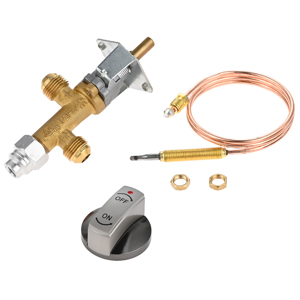

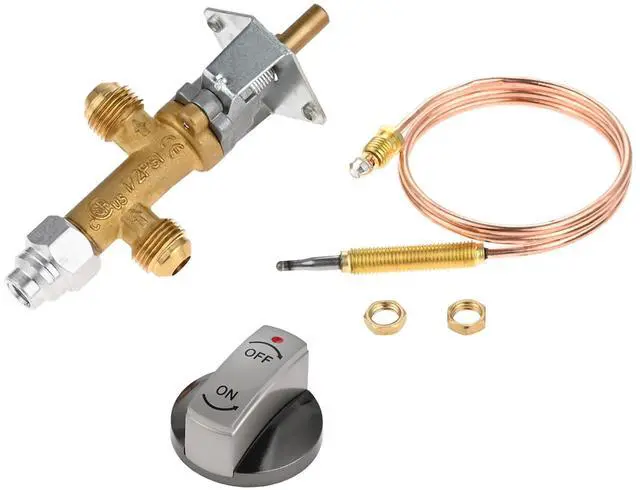

Low Pressure LPG Propane Gas Fireplace Fire Pit kit
Operation Instructions
- Fix the valve on a plate or board of your grill or fire pit by the head screw and flange.
- Connect your inlet and outlet hose on inlet and outlet side. (fix it tightly enough in case of gas leakage).

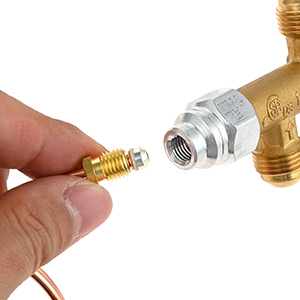

- Fix the thermocouple nut M8 on the valve end tightly (Check if your valve end thread if 8mm).
- Connect thermocouple and end thread well.
- Open gas by correct size knob and push your valve around 5-10s till the thermocouple head is heated enough.
- Release your hand and it work properly If when you release hand, gas valve shut off again, please check
QA
- Q1:How many btu's output is the maximim this valve is rated for?
- A1:The BTU of the propane valve are 31000.
- Q2:charmglow fire pit will not stay lit I need the little round plastic tub with silver spring
- A2:We are so sorry for that there is no round plastic tub with silver spring separately.

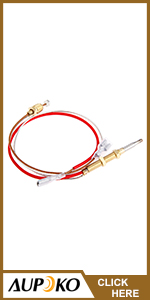

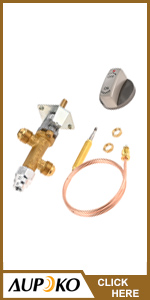

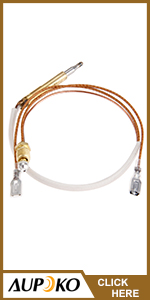

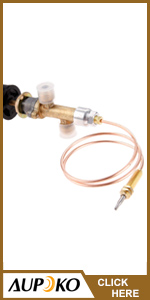

 Low Pressure LPG Propane Gas Safety Control Valve Kit |  Low Pressure LPG Propane Gas Safety Control Valve Kit |  M8x1 Universal Gas Thermocouple |  M8x1 Gas Thermocouple with Anti Tilt Switch |  M6 x 0.75 Patio Heater Thermocouple |  M6 x 0.75 Universal Thermocouple Patio Heater Parts | |
|---|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — | — |
| Price | — | — | — | — | — | — |
| WIDE APPLICATION | The propane gas safety control valve kit is suitable for low pressure repair control system for Gas Grill, Heater, Fire Pit, & Fireplace. | The propane lpg gas fire pit control safety valve kit is suitable for gas grill, heater, fire pit, fireplace if same connections. IT'S LOW PRESSURE PROPANE ONLY. | Fireplace heater universal gas thermocoupler used for gas fireplace, fire pit, grill, stove, catering cooker, patio heaters etc | This gas patio heater repair replacement parts fits for gas heaters outdoor heaters gold plated connectors inside, suitable for propane gas heaters with thermoelectric safety. | The thermocouple for gas patio heater is suitable for BBQ grill, fire pit, fireplace, heater hose connection. | This 350 mm thermcouple is suitable for patio heater. |
| Length | 720mm | 720mm | 600mm | 350mm | 410mm | 350mm |
