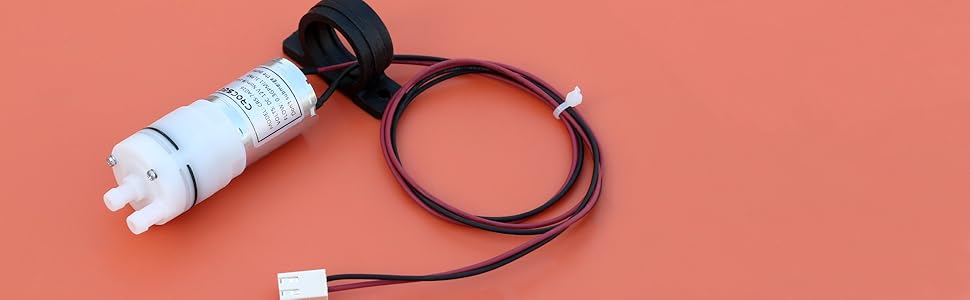

CrocSee Mini Food Grade Self Priming Diaphragm Water Pump
The pump head is made of Food Grade materials. Long Life Replacement Pump!
Quiet, Easy installation, Long life, Stable performance
The pump is suitable for Bottom-Loading Water Dispenser, Hot & Cold Water Dispenser, Refrigerator, Ice Maker, Coffee Machine, Fish tank, Tea machine, DIY projects, etc.
- Load noise:=50dBA
- Small size: Approx. 3" * Dia. 1"
- Low power consumption: Load current: =350mA
- Low heat: It can works continuously for a long time and won't be hot!
- Stable performance, Long life
Quality Parts: Safe & Durable Food Grade Materials.
High Compatibility for reliable & various application
Quality Parts: Copper Motor
CrocSee Mini Food Grade Self Priming Diaphragm Water Pump
The pump head is made of Food Grade materials. Long Life Replacement Pump!
Quiet, Easy installation, Long life, Stable performance
The pump is suitable for Bottom-Loading Water Dispenser, Hot & Cold Water Dispenser, Refrigerator, Ice Maker, Coffee Machine, Fish tank, Tea machine, DIY projects, etc.
- Load noise:=50dBA
- Small size: Approx. 3" * Dia. 1"
- Low power consumption: Load current: =350mA
- Low heat: It can works continuously for a long time and won't be hot!
- Stable performance, Long life
| Working Volts | DC 9 ~ 14v (12V is recommended) |
| Load current | =350mA |
| No-load current | =150mA |
| Max. Flow | 0.3GPM(1.3LPM) |
| Vertical Suction | 6.5ft(2 meters) |
| Head(High Lift) | =16ft (5m) |
| Noise level | =50dBA |
| Weight | 70g(2.5oz) |
| Inlet and Outlet | 1/4” hose barb port. Hose of 3/16” (5mm) inner dia. is recommended. |
| Working Temperature Range | -4°F ~ 140°F(-20°C ~ 60°C) |
| Applicable Water Temperature | 32 °F ~ 167 °F (0°C ~ 75°C) |
| About temperature | When the temperature is below zero, make sure the pump isn’t frozen before power on. High temperature environments can shorten the pump life! Do not run dry. Dry running over 5 minutes may cause damage. Always confirm water flow after power on. |
Quality Parts: Safe & Durable Food Grade Materials.
High Compatibility for reliable & various application
