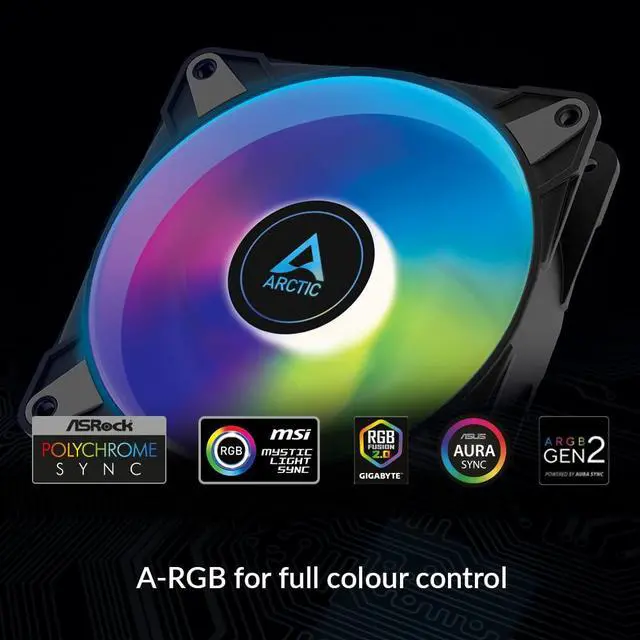

RGB for Full Colour Control
The P12 PWM PST A-RGB has 12 digital A-RGB LEDs in the fan scar. These can be controlled independently of each other and are compatible with the common A-RGB standards of leading motherboard manufacturers. The fan can thus be fully illuminated directly via the A-RGB mainboard connector or via an external controller and synchronised with the illumination of other hardware.

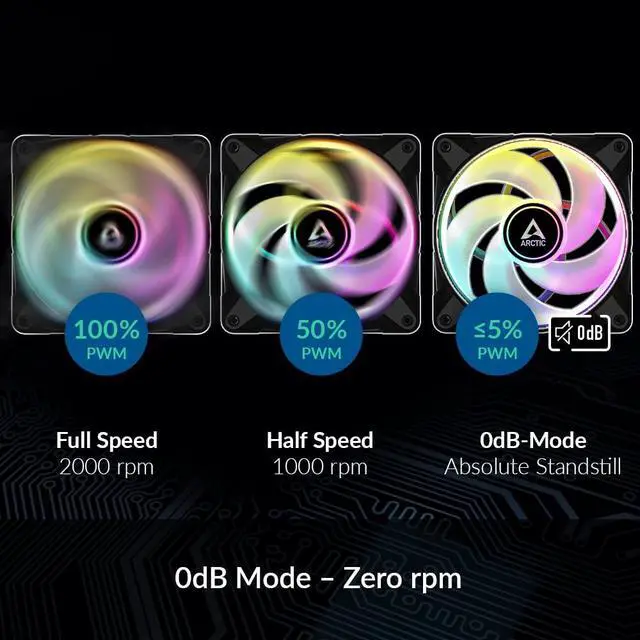

0dB Mode - Zero rpm
The speed of the fan can be throttled down to standstill via PWM. This allows silent operation in IDLE and at the same time promises maximum performance when required.
Optimised for high static pressure
The P12 PWM PST A-RGB operates with a focused airflow and a high static pressure. The fan thus promises extremely efficient cooling, even with increased air resistance, and is therefore suitable for use on heat sinks, radiators and filters.
200 to 2000 rpm (0 rpm <5 %) controlled via PWM PST

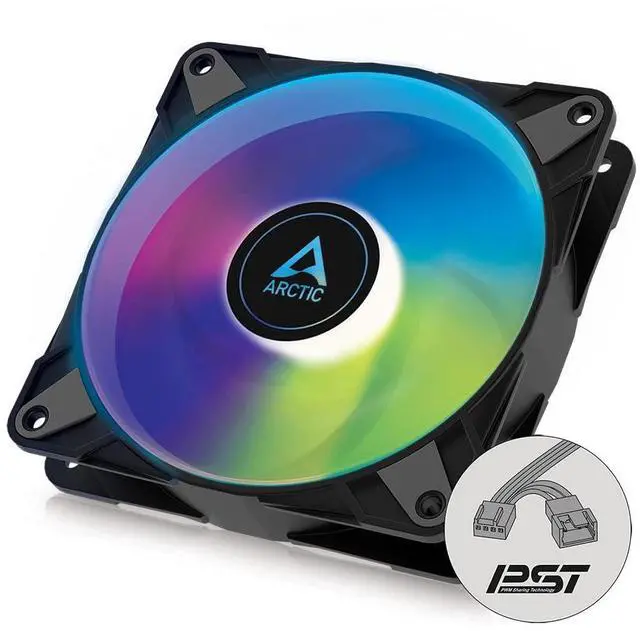

With a wide speed range and the innovative PWM Sharing Technology (PST), the fan speed of the P12 PWM PST A-RGB can be controlled synchronously with all other fans. This reduces noise to a minimum while promising maximum cooling performance.
General data
Performance
Fan Speed: 200–2000 rpm (0 rpm <5 %)
Airflow: 48.8 cfm | 82.91 m³/h
Static Pressure: 1.85 mmH2O
Noise Level: 0.3 Sone
Operating Ambient Temperature: 0–40 °C
Fan & Electric Characteristics
Fan Frame: Standard
Control Type: PWM PST
Connector: 4-Pin-Connector + 4-Pin-Socket
Fan Bearing: Fluid Dynamic Bearing
Typical Voltage: 12 V DC
Starting Voltage: 5 V
Current | Voltage: 0.11 A | 12 V DC
Cable Length: 400 mm
RGB Specifications
LEDs: 12 A-RGB LEDs
Connector: 3-Pin 5 V-DI-GND Connector
Current | Voltage: 0.4 A | 5 V
Cable: 400 mm Cable with 80 mm Sharing Cable, Black
Size & Weight
- Length: 120 mm
- Width: 120 mm
- Height: 25 mm
- Weight: 131 g
 P12 PWM PST A-RGB |  P12 Max |  F12 Silent |  P12 | P12 PWM PST | P12 PWM PST CO | |
|---|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — | — |
| Price | — | — no data | — | — | — | — |
| Size | 120?x?120?x?25 mm | 120?x?120?x?25 mm | 120?x?120?x?25 mm | 120?x?120?x?25 mm | 120?x?120?x?25 mm | 120?x?120?x?25 mm |
| Fan Speed | 200–2000 rpm | 200–3300 rpm | 800 rpm | 1800 rpm | 200–1800 rpm | 200–1800 rpm |
| Airflow | 48.8 cfm | 82.91 m³/h | 81.04 cfm | 137.69 m³/h | 37 cfm | 62.9 m³/h | 56.3 cfm | 95.65 m³/h | 56.3 cfm | 95.65 m³/h | 56.3 cfm | 95.65 m³/h |
| Noise Level | 0.3 Sone | 0.6 Sone | 0.08 Sone | 0.3 Sone | 0.3 Sone | 0.3 Sone |
| Control Type | PWM PST | Pulse Width Modulation - PWM | Fixed Speed | Fixed Speed | PWM PST | PWM PST |
| Bearing | Fluid Dynamic Bearing | Fluid Dynamic Bearing | Fluid Dynamic Bearing | Fluid Dynamic Bearing | Fluid Dynamic Bearing | Dual Ball Bearing |
| Weight | 131 g | 184 g | 107 g | 139 g | 145 g | 145 g |
| Static Pressure | 1.85 mm H2O | 4.35 mmH2O | 0.3 mmH2O | 2.2 mmH2O | 2.2 mmH2O | 2.2 mmH2O |
RGB for Full Colour Control
The P12 PWM PST A-RGB has 12 digital A-RGB LEDs in the fan scar. These can be controlled independently of each other and are compatible with the common A-RGB standards of leading motherboard manufacturers. The fan can thus be fully illuminated directly via the A-RGB mainboard connector or via an external controller and synchronised with the illumination of other hardware.
0dB Mode - Zero rpm
The speed of the fan can be throttled down to standstill via PWM. This allows silent operation in IDLE and at the same time promises maximum performance when required.
Optimised for high static pressure
The P12 PWM PST A-RGB operates with a focused airflow and a high static pressure. The fan thus promises extremely efficient cooling, even with increased air resistance, and is therefore suitable for use on heat sinks, radiators and filters.
200 to 2000 rpm (0 rpm <5 %) controlled via PWM PST
With a wide speed range and the innovative PWM Sharing Technology (PST), the fan speed of the P12 PWM PST A-RGB can be controlled synchronously with all other fans. This reduces noise to a minimum while promising maximum cooling performance.
General data
Performance
Fan Speed: 200–2000 rpm (0 rpm <5 %)
Airflow: 48.8 cfm | 82.91 m³/h
Static Pressure: 1.85 mmH2O
Noise Level: 0.3 Sone
Operating Ambient Temperature: 0–40 °C
Fan & Electric Characteristics
Fan Frame: Standard
Control Type: PWM PST
Connector: 4-Pin-Connector + 4-Pin-Socket
Fan Bearing: Fluid Dynamic Bearing
Typical Voltage: 12 V DC
Starting Voltage: 5 V
Current | Voltage: 0.11 A | 12 V DC
Cable Length: 400 mm
RGB Specifications
LEDs: 12 A-RGB LEDs
Connector: 3-Pin 5 V-DI-GND Connector
Current | Voltage: 0.4 A | 5 V
Cable: 400 mm Cable with 80 mm Sharing Cable, Black
Size & Weight
- Length: 120 mm
- Width: 120 mm
- Height: 25 mm
- Weight: 131 g
P12 PWM PST A-RGB | P12 Max | F12 Silent | P12 | P12 PWM PST | P12 PWM PST CO | |
|---|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — | — |
| Price | — | — no data | — | — | — | — |
| Size | 120?x?120?x?25 mm | 120?x?120?x?25 mm | 120?x?120?x?25 mm | 120?x?120?x?25 mm | 120?x?120?x?25 mm | 120?x?120?x?25 mm |
| Fan Speed | 200–2000 rpm | 200–3300 rpm | 800 rpm | 1800 rpm | 200–1800 rpm | 200–1800 rpm |
| Airflow | 48.8 cfm | 82.91 m³/h | 81.04 cfm | 137.69 m³/h | 37 cfm | 62.9 m³/h | 56.3 cfm | 95.65 m³/h | 56.3 cfm | 95.65 m³/h | 56.3 cfm | 95.65 m³/h |
| Noise Level | 0.3 Sone | 0.6 Sone | 0.08 Sone | 0.3 Sone | 0.3 Sone | 0.3 Sone |
| Control Type | PWM PST | Pulse Width Modulation - PWM | Fixed Speed | Fixed Speed | PWM PST | PWM PST |
| Bearing | Fluid Dynamic Bearing | Fluid Dynamic Bearing | Fluid Dynamic Bearing | Fluid Dynamic Bearing | Fluid Dynamic Bearing | Dual Ball Bearing |
| Weight | 131 g | 184 g | 107 g | 139 g | 145 g | 145 g |
| Static Pressure | 1.85 mm H2O | 4.35 mmH2O | 0.3 mmH2O | 2.2 mmH2O | 2.2 mmH2O | 2.2 mmH2O |
