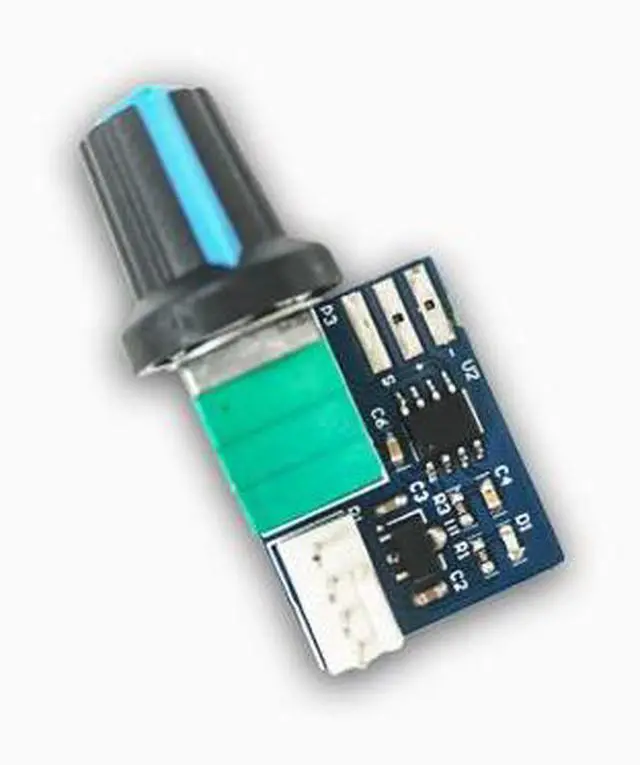

Computer case fan, fan speed controller, PWM speed control module, 12V single path, 4-pin low power, silent
- 1. The PWM frequency is 25 KHZ, which can be compatible with most 12V adjustable fans on the market.
- 2. The duty cycle can be adjusted from 0% to 97%, providing a wide speed adjustment range.
- 3. The rotating potentiometer is equipped with a switch, facilitating start and stop operations.
- 4. Input voltage: 12V
- 5. The size is small, making installation convenient.
- 2. Instructions for use

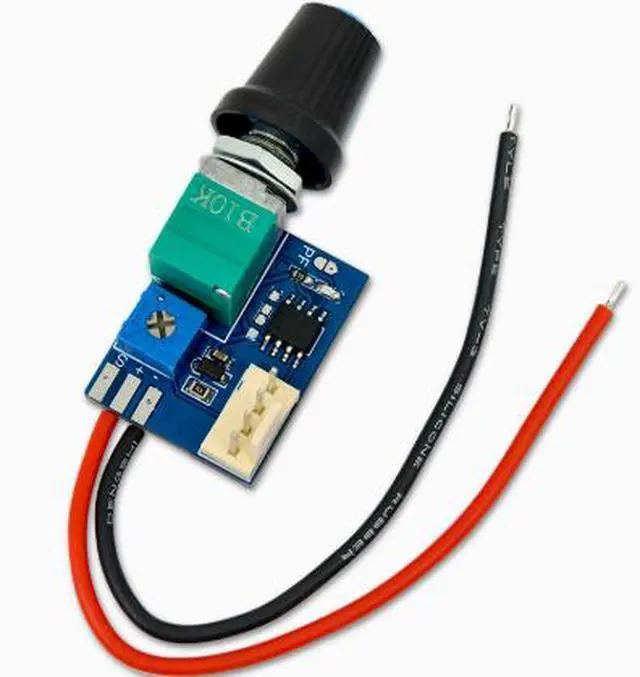

- It is necessary to solder the wires yourself and connect to a 12V voltage. Pay attention to the wiring sequence: connect the 1st pin to ground, the 2nd pin to 12V, and leave the 3rd pin empty. Rotate the potentiometer, turn on the switch, and the red LED will light up, indicating that the power supply is normal. Continue to adjust the potentiometer in a clockwise direction, and the fan speed will gradually increase.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
1. The PWM frequency is 25 KHZ, which can be compatible with most 12V adjustable fans on the market.
2. The duty cycle can be adjusted from 0% to 97%, providing a wide speed adjustment range.
3. The rotating potentiometer is equipped with a switch, facilitating start and stop operations.
4. Input voltage: 12V
5. The size is small, making installation convenient.
2. Instructions for use
It is necessary to solder the wires yourself and connect to a 12V voltage. Pay attention to the wiring sequence: connect the 1st pin to ground, the 2nd pin to 12V, and leave the 3rd pin empty. Rotate the potentiometer, turn on the switch, and the red LED will light up, indicating that the power supply is normal. Continue to adjust the potentiometer in a clockwise direction, and the fan speed will gradually increase.
