Hydraulic Steering Kit, 300HP Hydraulic Steering Compact Cylinder, Hydraulic Outboard Steering Kit with Helm Pump for Boat Marine Steering System

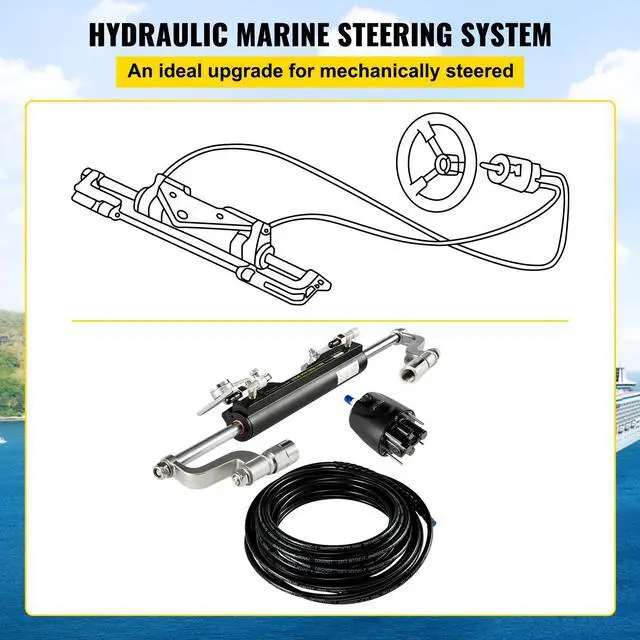

- 300 HP Hydraulic Steering Kit: The hydraulic outboard boat steering kit includes a balanced steering cylinder, a low-friction helm, two lengths of 20ft hose, and a fill kit. It will perfectly replace your aging or broken equipment. Note: It's compatible with Yamaha, Honda, Suzuki below 300HP, not for Mercury.

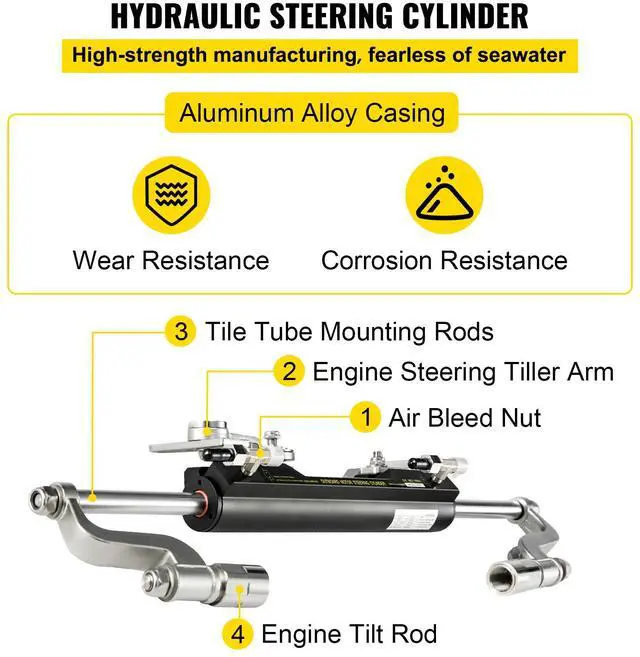

- Built-in Two-way Lock Cylinder: Output force: 470 kgf. The cylinder has a built-in two-way locking valve, which eliminates rebound torque during torsion. With robust barrel design and efficient sealing, the system can withstand the harsh environment.

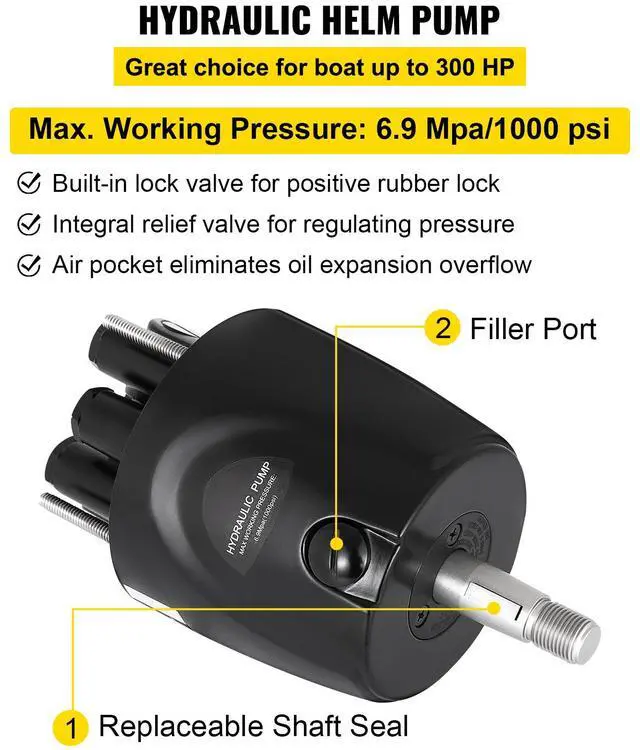

- Max. 300HP Helm Pump: Max. Working pressure: 6.9 Mpa/1000 psi. The low friction helm ensures smooth and comfortable steering. And it has a replaceable shaft seal that can be easily replaced.
- Cut-to-length Hoses: Our high-strength nylon hose is equipped with quick-fit 1/4'' pipe fitting for easy and fast installation and multiple re-uses. Each hose is 20' long and can be cut for your specific installation, accommodating most boats
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Specifications
Model: Hydraulic Boat Steering Kit
Application: Up to 300HP
Max Pressure: 6.9M pa (1000psi)
Output Force: 470 kgf
Volume: 141cc
Tube I.
D: 35 mm
Rod I.
D: 18 mm
Strode: 214 mm

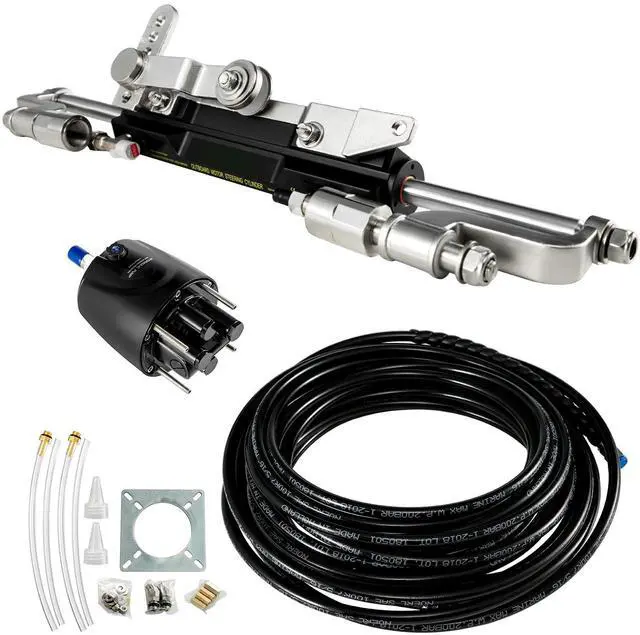

Package Content
1 x Hydraulic Pump
2 x 20ft Hose
1 x Cylinder
1 x Accessory Kit
