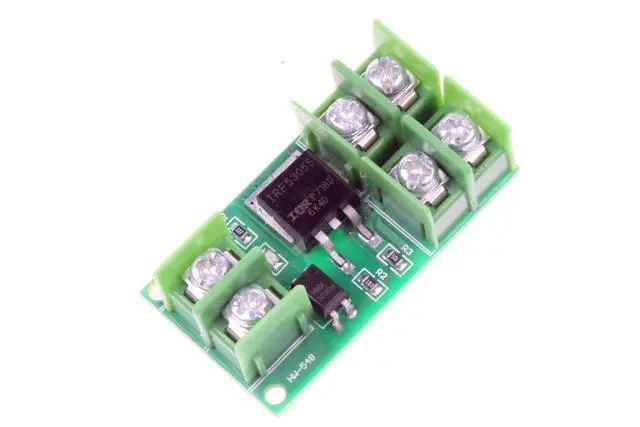

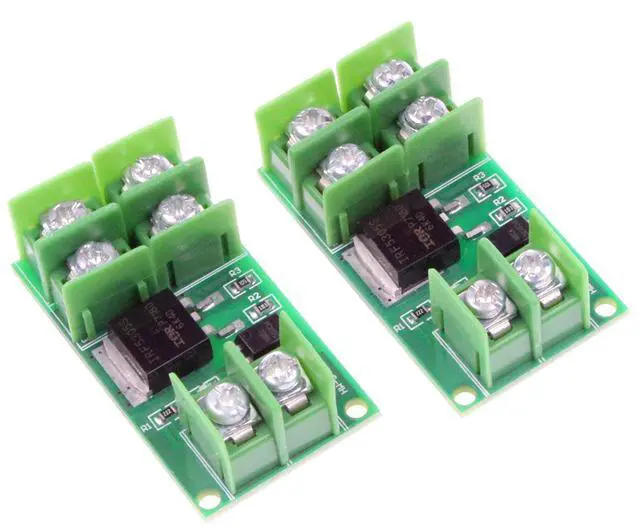

Electronic Switch Control Board Isolation MOS FET High Low level Trigger Switch Control Module DC Control DC 5 to 36V Input Controlled voltage (Pack of 2)
- FET module, input and output are completely isolated.
- Input signal voltage: 3V-24V; Current: about 5mA.
- Output controlled voltage: 5V~36V. Current: less than 5A (More than 5A need to add heat sink, the maximum can not exceed 20A).
- The output can control high-power equipment

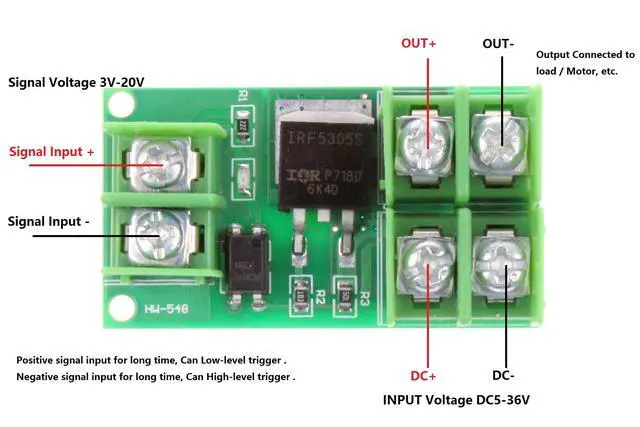

- Signal trigger side: digital high and low level. Can be connected to MCU port, PLC interface, DC power supply, etc. [You can refer to the wiring diagram of the product in the product picture item on the left.]
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Product description:
1: FET module, input and output are completely isolated.
2: Signal trigger side: digital high and low level. Can be connected to MCU port, PLC interface, DC power supply, etc.
3: Input signal voltage: 3V-24V; current: about 5mA.
4: The output can control high-power equipment.
5: Output controlled voltage: 5V~36V. Current: less than 5A (More than 5A need to add heat sink, the maximum can not exceed 20A).
6: Adopts F5305S power MOSFET can be used to input PWM, control the motor speed, and so on.
Packag Included:

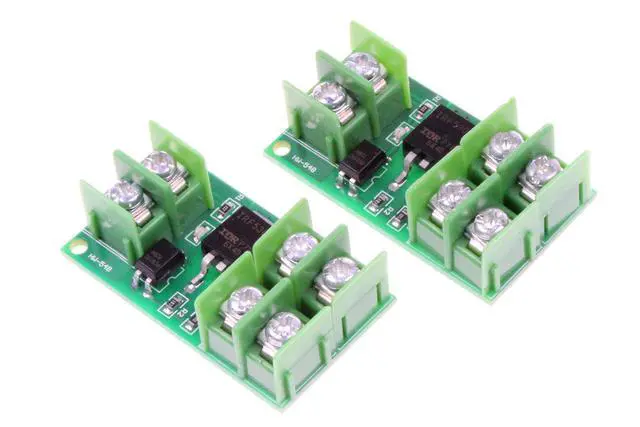

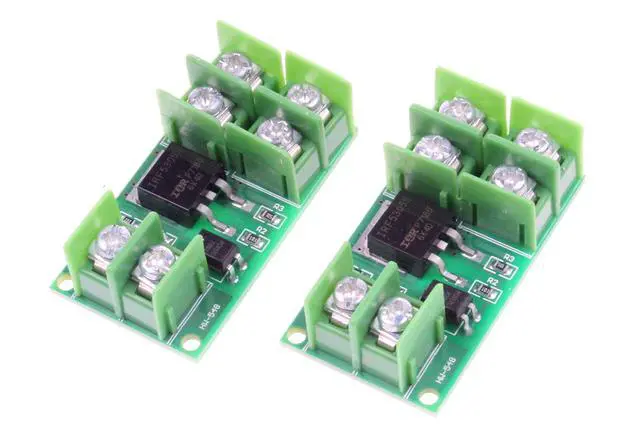

2pcs Electronic Switch Control Board Isolation MOS FET Pulse Trigger Switch Control Module
