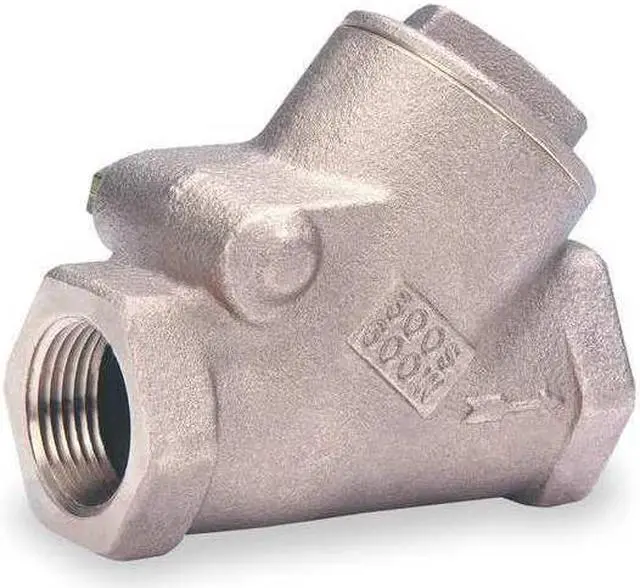

MILWAUKEE VALVE 507 3/8 Swing Y Check Valve, 507 Series, 3/8 in, FNPT x FNPT,

MILWAUKEE VALVE Series 507 is a 3/8 in. swing Y check valve with a cast bronze body and FNPT x FNPT connections. It is intended for one-way flow applications in general purpose piping systems with gas, oil, steam, and water. The valve includes a Y-style body and swing check mechanism; rated flow: 6 gpm; Cv: 4.3.

Key Features:

• Valve type: Swing Y check valve with Y-pattern body design
• Size: 3/8 in. nominal valve size with 3/8 in. connection size on both ends
• Connections: Female NPT x Female NPT
• Body material: Cast bronze
• Check mechanism: Swing
• Flow design: Single
• Media compatibility: Gas, oil, steam, water
• Flow rating: 6 gpm
• Cv: 4.3
• Pressure ratings: 600 psi WOG, 300 psi SWP, 300 psi WSP, 600 psi at 150 degrees F water pressure
• Temperature range: -20 degrees F to 550 degrees F
• Mounting orientation: Horizontal or vertical
• Seat material: Bronze
• Seal material: Bronze and Chrome, Cobalt
• Overall length: 2.25 in.
• Standards: ASTM A276 TY.304, ASTM B16, ASTM B61, MSS SP-80
