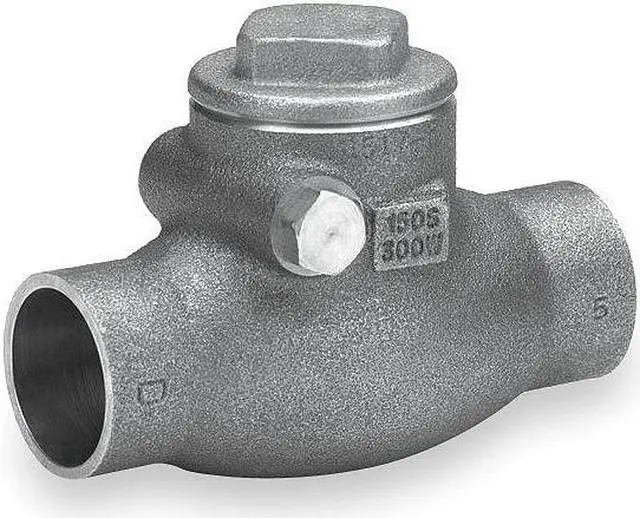

MILWAUKEE VALVE 1509 3/4" Swing Check Valve, 1509 Series, 3/4 in, Sweat x

The MILWAUKEE VALVE 1509 is a 3/4 in. swing check valve with an inline bronze body and sweat x sweat connections. It is for general-purpose gas, oil, steam, and water service, using a swing mechanism to allow flow in one direction and restrict reverse flow in piping systems. This horizontal-mount valve features a single-flow design, full-flow construction, and a 0.5 to 0.75 psi cracking pressure.

Key Features:

• Valve type: Swing check valve with inline swing body design
• Body material: Bronze
• Check mechanism material: Brass
• Connection size: 3/4 in. x 3/4 in.
• Connection type: Sweat x sweat; solder connection
• Connection gender: Female x female
• Flow capacity: 18 gpm; Cv: 18
• Pressure ratings: 200 psi WOG, 200 psi maximum water pressure, 125 psi WSP maximum steam pressure
• Temperature range: -20 degrees F to 406 degrees F
• Seat material: Bronze; seal material: Viton
• Mounting orientation: Horizontal
• Overall length: 3.31 in.
• Standard: MSS SP-80 Type 3
