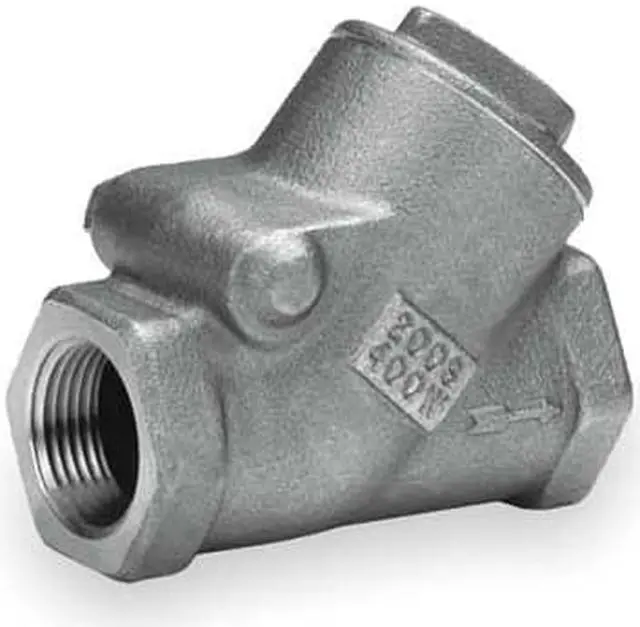

MILWAUKEE VALVE 508 2" Check Valve, 508 Series, Swing Y, 2 in FNPT x FNPT,

MILWAUKEE VALVE 508 Series 2 in swing Y check valve with a bronze body and swing mechanism for use in compatible general-purpose gas, oil, steam, and water line applications. The Y-style body and full-flow design includes a 131 gpm flow rating with a Cv of 92. Cracking pressure: 0.500 to 0.750 psi. This valve has female NPT threaded connections on both ends and is intended for horizontal mounting.

Key Features:

• Valve type: Swing Y check valve with Y-pattern body design.
• Size and connections: 2 in FNPT x FNPT threaded connections; female on both sides.
• Materials: Cast bronze body with bronze check mechanism, seat, and seal material listed as bronze.
• Flow performance: Full-flow, single-flow design; 131 gpm flow rating and Cv of 92.
• Cracking pressure: 0.500 to 0.750 psi.
• Pressure ratings: 400 psi WOG, 400 psi at 150 degrees F water pressure, and 200 psi WSP steam pressure.
• Temperature range: -20 to 550 degrees F.
• Dimensions: 5.88 in overall length, 4 in overall height, 4 in cap to inlet center.
• Mounting orientation: Horizontal.
• Standard: MSS SP-80 Type 3.
