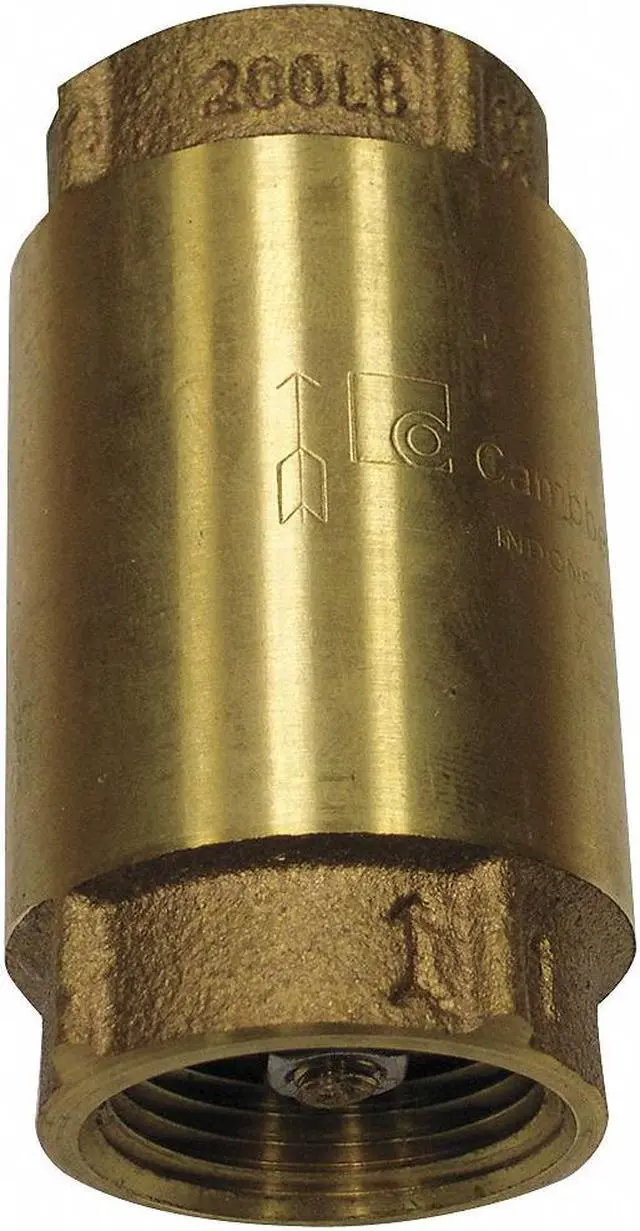

CAMPBELL CV-3TLF 3/4" FNPT Low Lead Brass Spring Check Valve

The CAMPBELL CV-3TLF is a 3/4 in. spring check valve with an inline body and 3/4 in. FNPT x FNPT female threaded connections. It uses a spring-loaded poppet check mechanism for one-direction flow applications. For media: water. The valve features a lead-free red brass body, 0.5 psi cracking pressure, and a flow rating of 13 gpm.

Key Features:

• 3/4 in. nominal valve size with 3/4 in. FNPT x FNPT connections
• Inline spring check valve design with poppet check mechanism
• Lead-free red brass body with 304 stainless steel check mechanism and spring
• Buna-N/NBR seal and bronze seat material
• For media: water
• Cracking pressure: 0.5 psi
• Flow rate: 13 gpm
• Maximum operating pressure: 200 psi WOG
• Operating temperature range: 35 to 158 degrees F
• Mounting orientation: horizontal or vertical
• Certification: NSF 61
• Standard: ASTM B62
• Overall dimensions: 3 in. L x 1-1/2 in. H x 1-1/2 in. W
