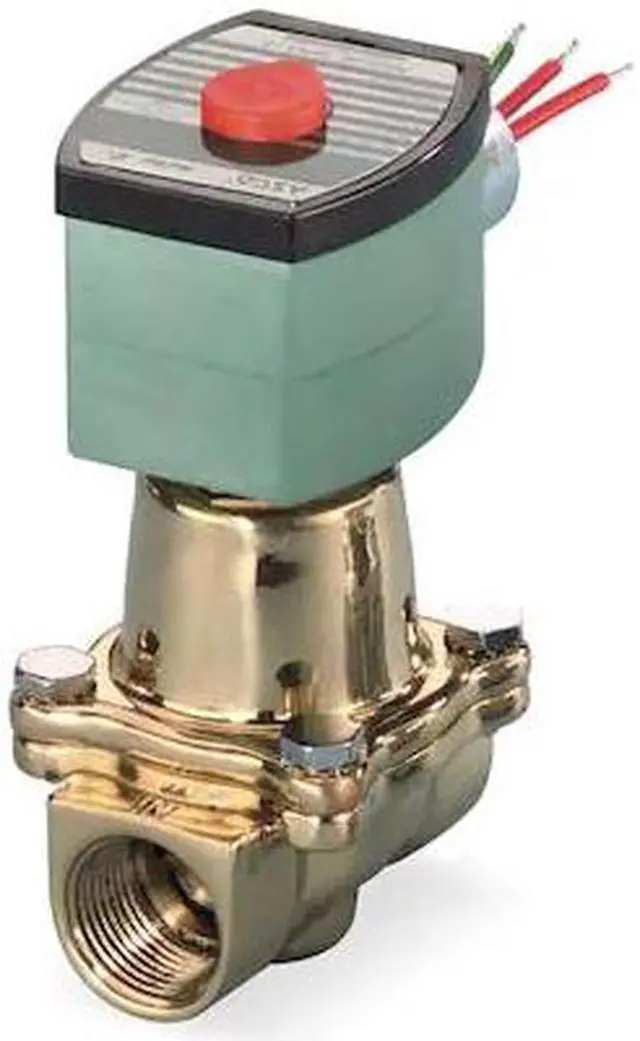

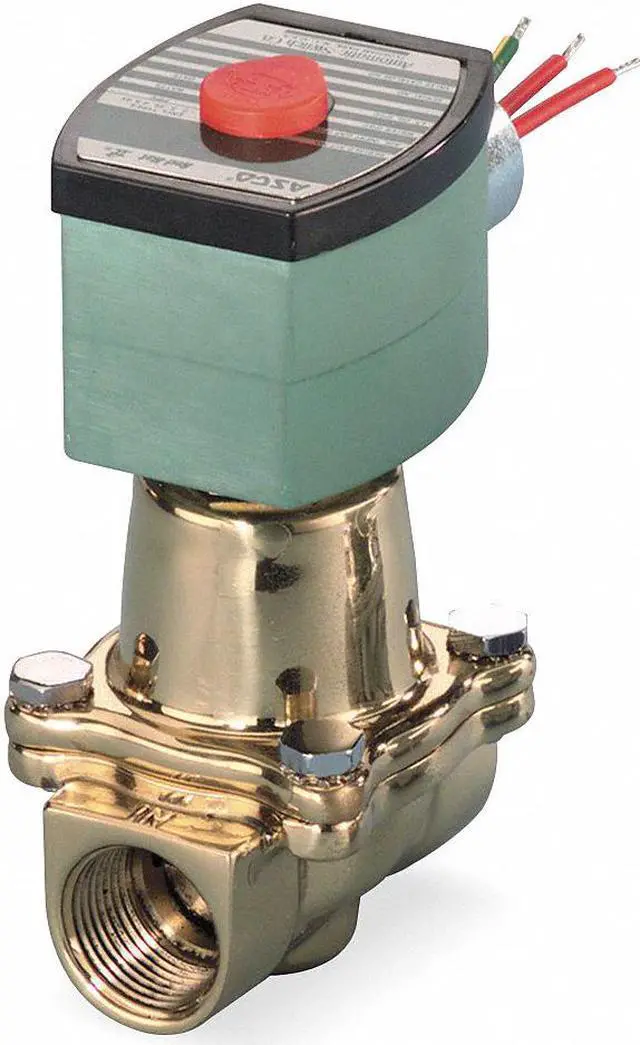

ASCO 8222G093 Solenoid Valve, 2-Way, 2-Position, Normally Closed, 3/8 in Pipe

The ASCO - 8222G093 is a 2-way, 2-position, normally closed solenoid valve rated for operation with hot water and steam within the specified maximum fluid temperatures (210°F for water, 353°F for steam). It features a brass valve body with a diaphragm valve design and pilot-operated actuation. The valve is rated for hot water up to 210°F and steam up to 353°F. It includes a coil rated for 120V AC at 60 Hz with a watertight enclosure and Class F insulation. The valve is rated for use with hot water and steam within the specified temperature and pressure ranges (210°F water; 353°F steam; 150 psi hot water; 125 psi steam).

Key Features:

• - Valve Body: Brass construction with Y-shape design
• - Valve Type: High Temperature diaphragm, pilot-operated
• - Valve Configuration: 2-Way, 2-Position, Normally Closed
• - Fluid Media: Hot water and steam
• - Maximum Fluid Temperatures: The valve is rated for hot water up to 210°F and steam up to 353°F
• - Operating Pressure Differential: 150 psi hot water, 125 psi steam
• - Orifice Diameter: 5/8 in
• - Connections: Inlet and outlet NPTF threaded, nominal pipe size 3/8 in
• - Coil: Included 120V AC, 60 Hz, 10.1 W, Class F insulation, watertight enclosure
• - Ambient Temperature Range: 32°F to 125°F
• - Seal Material: PTFE
• - Dimensions: 2-3/4 in length, 2-5/16 in width, 3-27/32 in height
• - Environmental Rating: Indoor, Outdoor, Hazardous, Washdown
• - Certifications: CSA and UL Listed
