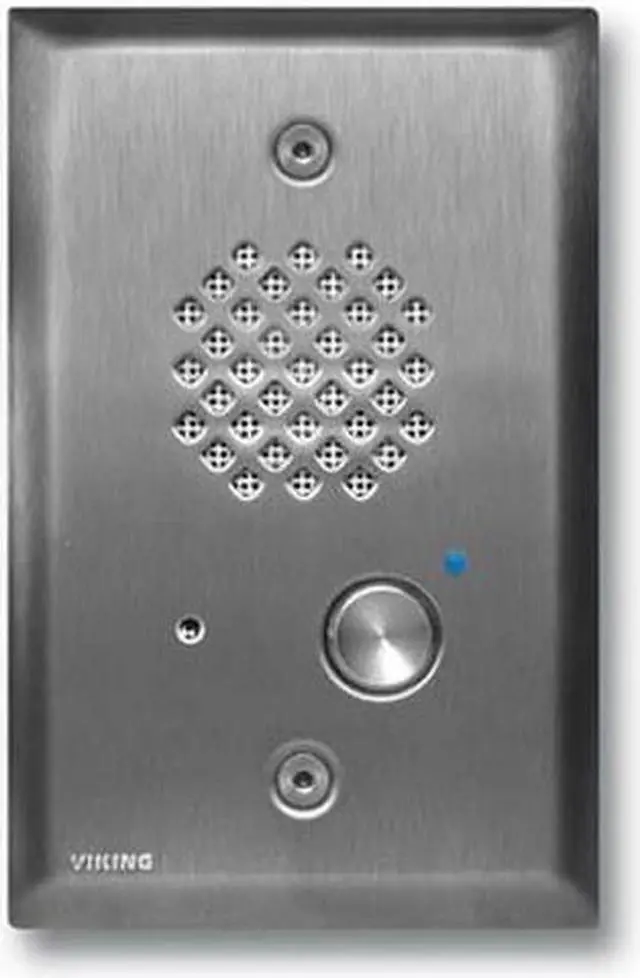

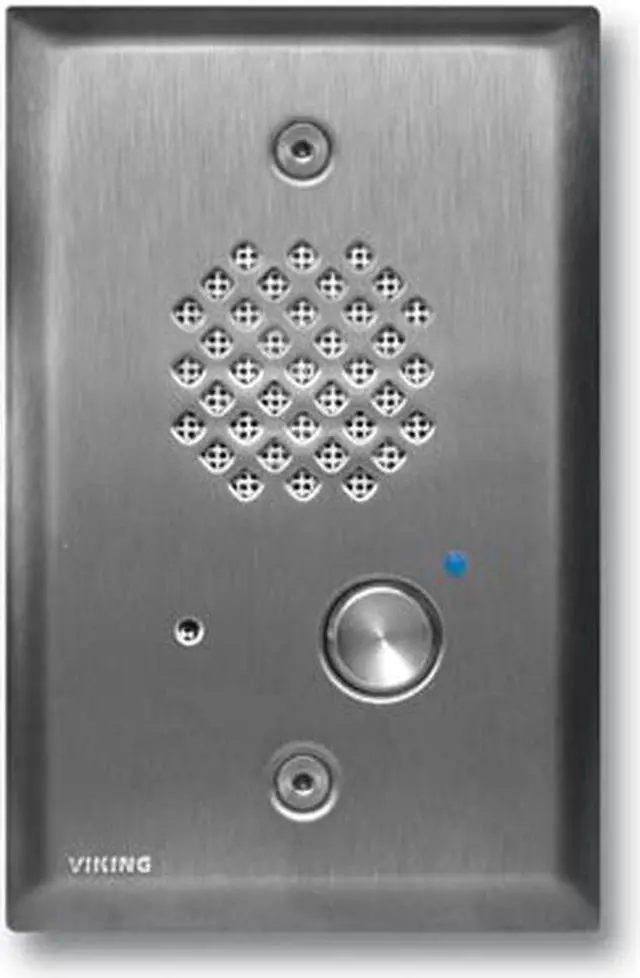

Viking Electronics VK-E-40SS Door Box Stainless Steel

The PA-2A provides loud ringing and paging to electronic key systems- 1A2 Key systems- PABX's as well as No-KSU phones and multiline phones. Paging is accomplished by connecting the PA-2A to a paging port or unused telephone line input (trunk port) of nearly any phone system. The PA-2A will also generate adjustable loud ringing from up to 6 analog lines or from a dry contact clo-sure. Either a loud electronic warble- or one of three other soft chime sounds may be selected. An external -night transfer- switch can be added to turn loud ringing on or off in night bell applications.

The PA-2A is easy to install and eliminates the installation of multiple bells- relays and paging cards. The unit comes complete with a power supply- amplifier and (1) paging horn..
Applications: Amplified loud Paging. Night bell. Loud ringing.
Features: Two watts of paging power. All lines are optically coupled for use with fax switches and analog PABX/KSU stations. Can provide background music from an external source. Paging from an unused trunk port or paging port.
Four loud ringing sounds: Electronic warble. Double gong. Quadruple chime. Door chime (ding-dong). Provides loud ringing or night bell- from 1-6 lines for warehouses- yards- etc. Output for controlling a 12 volt relay from 1-6 ringing lines. Page alert tone. 600 ohm output for sourcing high powered amplifiers. Made in the USA.
Specifications:
Power: 120V AC/ 13.8V AC 1.25A - UL listed adapter provided.
Dimensions: 133mm x 89mm x 44mm ( 5.25 - x 3.5 - x 1.75 -).
Environmental: 0°C to 32°C (32°F to 90°F) with 5% to 95% noncondensing humidity.
Paging Output: 2 watts - powers up to (3) 8 ohm or (16) 45 ohm speakers.
Sound Pressure: 110 dB @ 1 meter (warble).
Speakers: (1) 25AE 8 ohm paging horn included- (3) maximum.
Maximum Speaker Run: 91m (300 ft) maximum 18 AWG.
Talk Battery: 24V DC.
Connections: (2) RJ25 jacks- (1) 10 position screw terminal block.
