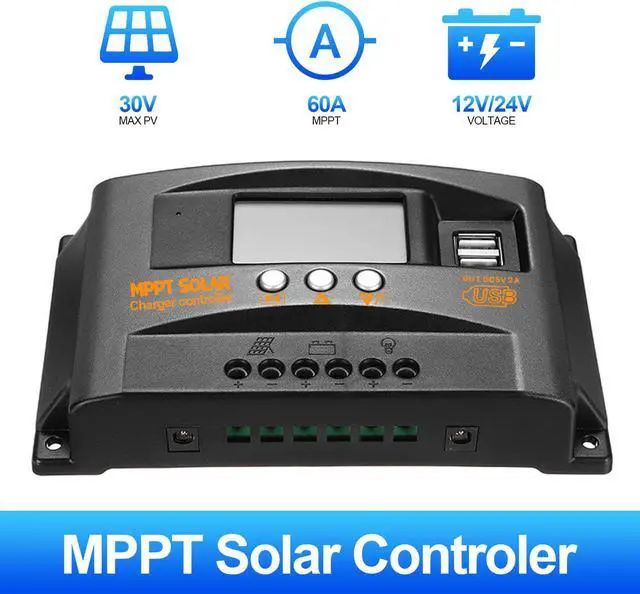

12/24V 60A MPPT Solar Charge Controller Panel Battery Regulator Dual USB
- Solar Charge ControllerThe solar charger controller compatibility with 12V 24V system. It helps you manage the working of solar panels and battery in solar systems automatically with the built-in industrial microcontroller. Dual USB output 5V/2A to support mobile phone charging.
- SAFE TO USEEquipped with overcurrent protection, short-circuit protection, inverse connection protection, low voltage, and overcharge protection.Smart LCD display shows the charging status and battery status to make you more assured of charging,Besides regular input, output, and battery protection, protection of over-current from the solar panels are applied.
- Battery TypeAdaptable to User, Flooded, AGM, GEL, LifePO4, Lithium, and other customized battery types. For protecting the lifespan of your battery, once the voltage of the battery is out of range, the solar controller will turn off automatically.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Specifications
Solar Charge Controller: 60A
Battery Voltage/System Voltage: 12V/24V Auto
Max PV Open Circuit Voltage: 30V
Self-consumption: 10mA
Loop Voltage Drop: 0.3V
Battery Typel: User, Flooded, AGM, GEL, LifePO4, Lithium
USB Output: 5V/2A×2
Operating Temperature: -4~+122
Protection Category: IP44
Humidity: 95%, no-condensing

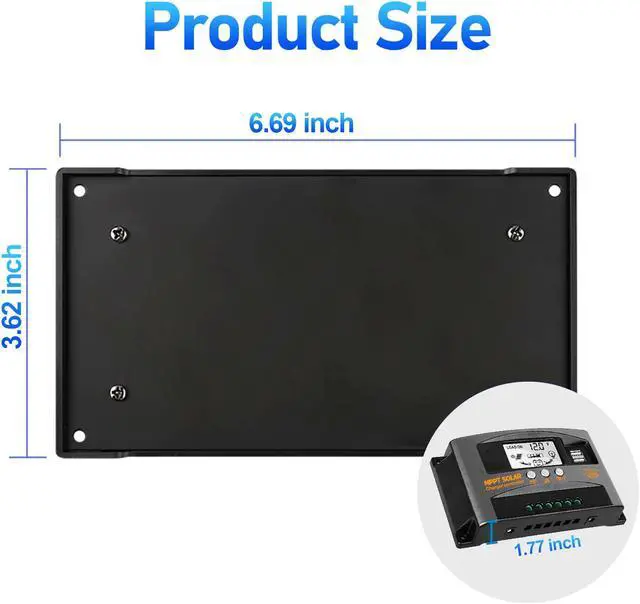

Product size: 170*92*45MM
Features
Solar Charge ControllerThe solar charger controller compatibility with 12V 24V system. It helps you manage the working of solar panels and battery in solar systems automatically with the built-in industrial microcontroller. Dual USB output 5V/2A to support mobile phone charging.
SAFE TO USE
Equipped with overcurrent protection, short-circuit protection, inverse connection protection, low voltage, and overcharge protection. Smart LCD display shows the charging status and battery status to make you more assured of charging, Besides regular input, output, and battery protection, protection of over-current from the solar panels are applied.

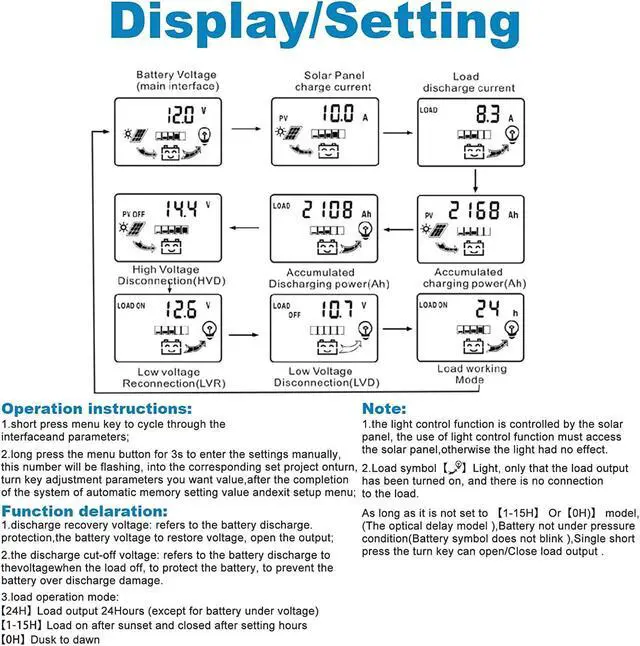

LCD DisplayComes with a display that can clearly indicate the status and data, solar charger can be conveniently switched modes and parameter configurations.

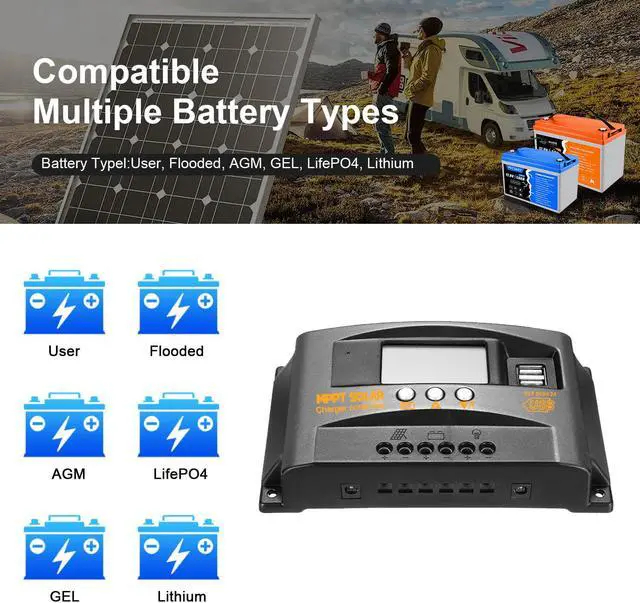

Battery TypeAdaptable to User, Flooded, AGM, GEL, LifePO4, Lithium, and other customized battery types. For protecting the lifespan of your battery, once the voltage of the battery is out of range, the solar controller will turn off automatically.
Easy to UseCharge controllers for solar panels should connect the battery first, then the solar panel, and finally the load. LCD display, adjustable parameter, suitable for home, industrial, commercial etc.
Correct link,

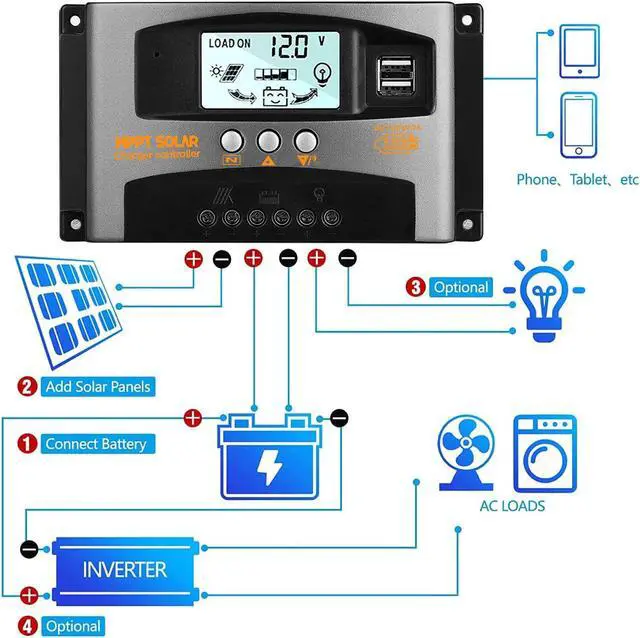

working instructions:
Make sure the battery has sufficient voltage for the controller to recognize the battery before the first installation.
1. Connect the battery to the solar controller, the solar charge controller automatically recognizes the voltage.
2. Connect the solar panels to the charge regulator.
3. Connect the consumer to the solar charge controller.
