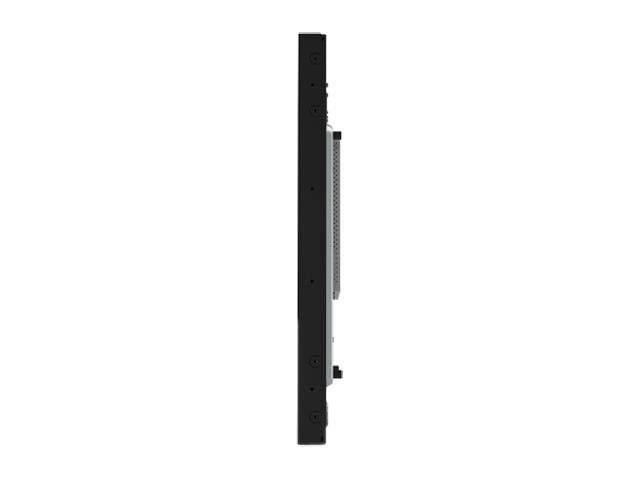

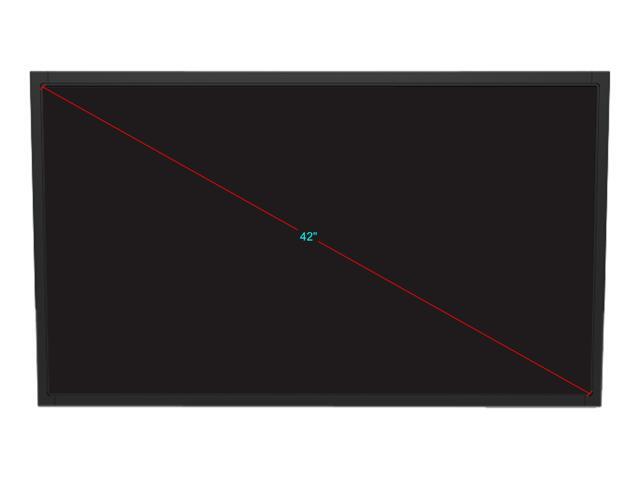

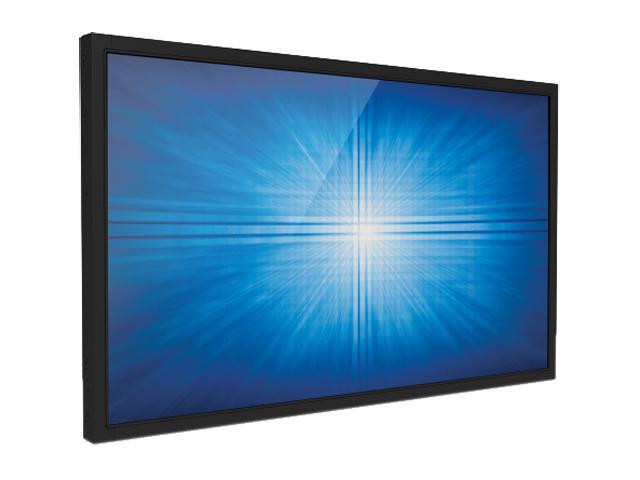

The Elo Touch Solutions 4243L 42-inch full HD open-frame touchmonitor provides smooth dual-touch performance with IntelliTouch Plus surface acoustic wave technology. The 4243L touchmonitor is 2.6" (65mm) in total thickness and less than 1" (25mm) in border width. The new sleek mechanical design enables thinner and smaller kiosk design for various applications like retail, hotel, gaming, transportation and other commercial users. The touch screen glass tested with robust "ball-drop" requirements supporting applications in demanding public access environments.
The 4243L features a unique, injection-molded bezel with a virtually invisible water-resistant seal, making it a good choice for the rigors of public use. Narrow borders, multiple mounting options, and a USB touch interface add to the versatility of the 4243L.
Model | 4243L |
Color | Black |
Active Display Area | 36.6 x 20.6" (930 x 523mm) |
Dimensions | 38.5 x 2.6 x 22.6" (978 x 65 x 575mm) max. |
LCD Technology | Active matrix TFT LCD with LED backlight |
On-Screen Display (OSD) | Accessible through switches on the OSD Control Remote accessory. Controls: Menu, Up, Down, Select; Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, Recall Defaults, Video Source; Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese; Lockouts: OSD, Power |
Mounting Options | VESA 4-hole mount per MIS-F, 400, 400, 6mm (side mounting brackets included with unit) |
Aspect Ratio | 16:9 |
Native Resolution | 1920 x 1080 |
Preset Video Timings | 640 x 480 @ 60Hz, 720 x 480 @ 60Hz, 720 x 576 @ 50Hz, 800 x 600 @ 56Hz, 1024 x 768 @ 60Hz, 1280 x 720 @ 50Hz, 1280 x 720 @ 60Hz, 1280 x 960 @ 60Hz, 1280 x 1024 @ 60Hz, 1440 x 900 @ 60Hz, 1366 x 768 @ 60Hz, 1680 x 1050 @ 60Hz, 1920 x 1080 @ 50Hz, 1920 x 1080 @ 60Hz |
Number of Colors | 1073 Million |
Brightness (typical): - LCD Panel - IntelliTouch Plus - No Touch |
500 nits 450 nits 450 nits |
Response Time (Tr + Tf) (typical) | 8ms |
Viewing Angle (typical) | Horizontal: ± 89 degrees; Vertical: ± 89 degrees |
Contrast Ratio (typical) | 4000:1 |
Video | Analog VGA on Female DE-15 connector; HDCP-capable HDMI 1.3 on HDMI Type A receptacle connector (ET4243L-XXWA models only); Digital DVI on Female DVI-D, Dual-Link connector (ET4243L-XXAA models only). Input Video Horizontal Sync frequency range: 31.5-75KHz, Input Video Vertical Sync (frame rate) frequency range: 47-63Hz |
Weight | Unpackaged: 44 lbs (20kg) Packaged: 61 lbs (27.67kg) |
Temperature | Operating: 32 - 104°F (0 - 40°C) Storage: -4 - 140°F (-20 - 50°C) |
Humidity (non-condensing) | Operating: 20% - 80% Storage: 10% - 95% |
