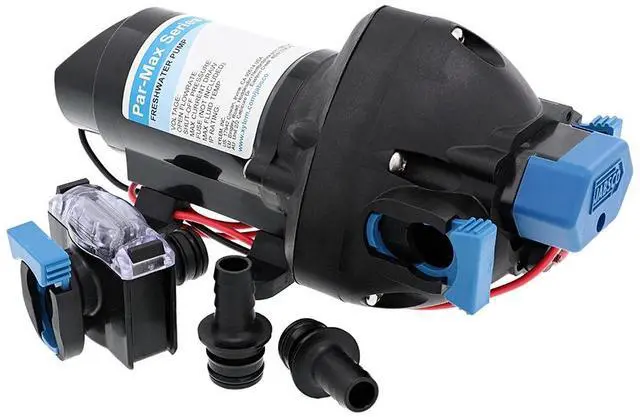

Jabsco 3139525123A Par-Max 3 Water Pressure Pump 12V 3 GPM 25 PSI

Par-Max 3 Water Pressure Pump - 12V - 3 GPM - 25 PSI< / strong>< / p>

HD (Heavy Duty) models include a wider diameter motor with a powder coated shell, cast aluminum endbells and lower housing to improve pressure capability and life. Available in configurations up to 6 GPM (23 LPM) and 60 PSI (4.1 BAR), these pumps deliver exceptional performance. < / p>

Standard models provide good performance in an economical footprint. These configurations are available in 1-3 GPM, perfect for vessels with 1-3 outlets. A plastic housing protects the motors on these units from corrosion. < / p>

Features:< / strong>< / p>

• Co-molded diaphragm technology for long life and durability< / li>
• HD models feature heavy duty, motors and cast aluminum lower housings which allow for longlife, even at high pressures< / li>
• Efficient and quiet operation< / li>
• Integrated, sealed pressure switch for on-demand operation< / li>
• Self-priming allows for installation versatility< / li>
• Can run dry without damage< / li>
• Quick connect ports for ease of installation, servicing, and maintenance< / li>
• Vibration dampening mounting feet< / li>
• Equipped with integrated bypass module to reduce cycling and provide smoother flow< / li>< / ul>

  Specifications:< / strong>< / p>

  • Motor design: Brushed, permanent magnet TENV < / li>
  • Pumphead upper housing material: Glass fiber reinforced polypropylene < / li>
  • Diaphragm: Co-molded TPV < / li>
  • Check valves: EPDM < / li>
  • Max inlet pressure: 30 PSI (2.1 Bar) < / li>
  • Fluid temperature range: 32°F – 140°F (0°C – 60°C) < / li>
  • Dry self-priming capability: 7ft min (2.13m / min) < / li>
  • Certifications: CE, ISO8846, RCM< / li>
  • Ingress Protection: IPX6< / li>< / ul>

    WARNING:< / strong> This product can expose you to chemicals including ANTIMONY OXIDE (ANTIMONY TRIOXIDE) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov< / a>.< / p>
