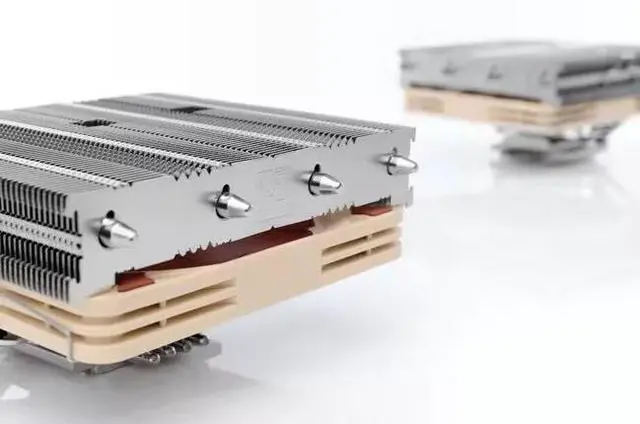

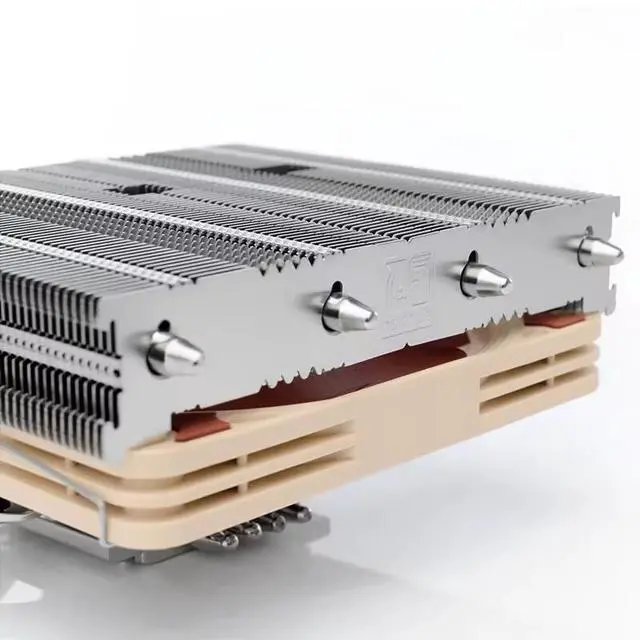

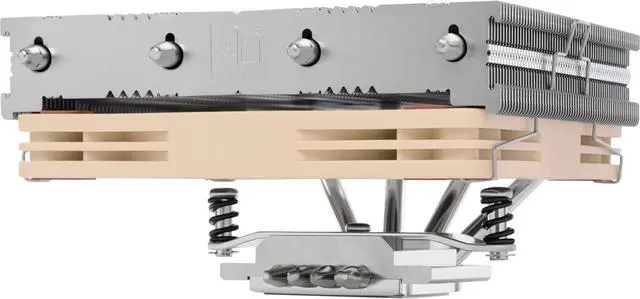

Noctua NH-L12S, 120mm Silent Fan Low Profile CPU Heatsink (Brown)

Successor to the popular NH-L12, the NH-L12S is a compact low-profile CPU cooler that combines excellent compatibility, surprising efficiency and remarkable flexibility. Thanks to its NF-A12x15 PWM, slim 120mm fan, the NH-L12S provides even better quiet cooling performance than the previous model with its 92mm fan. At the same time, the
NH-L12S is highly versatile: with the fan installed on top of the fins, the cooler is compatible with RAM modules of up to 48mm in height. With the fan installed underneath the fins, the total height of the cooler is only 70mm, making it suitable for use in many HTPC and Small Form Factor cases. Topped off with the trusted, pro-grade SecuFirm2 multi-socket mounting system and Noctuas proven NT-H1 thermal compound, the NH-L12S is a premium-quality low-profile solution for the highest demands.

Cooler

Specifications

Scope of delivery

NF-A12x15 PWM premium fan
NA-RC7 Low-Noise Adaptor (L. N. A)
NT-H1 high-grade thermal compound
SecuFirm2 mounting kit
Noctua metal case-badge
Fan compatibility
120x120x15, 120x120x25

Measurements
Height (without fan): 70 mm
Width (without fan): 128 mm
Depth (without fan): 146 mm
Height (with fan): 70 / 88 mm
Width (with fan): 128 mm
Depth (with fan): 146 mm
Weight (without fan): 390 g
Weight (with fan): 520 g
Material

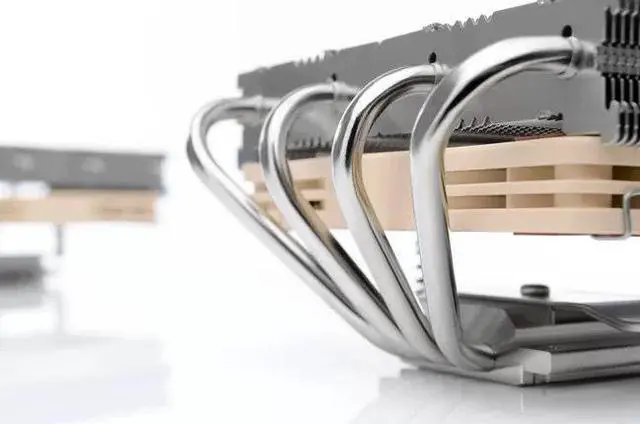

Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating

Please Note:
The NH-L12S is a highly compact, quiet low-profile cooler designed for use in small form factor cases and HTPC environments. While it provides first-rate performance in its class, it is not suitable for overclocking and or CPUs that create high heat loads.
