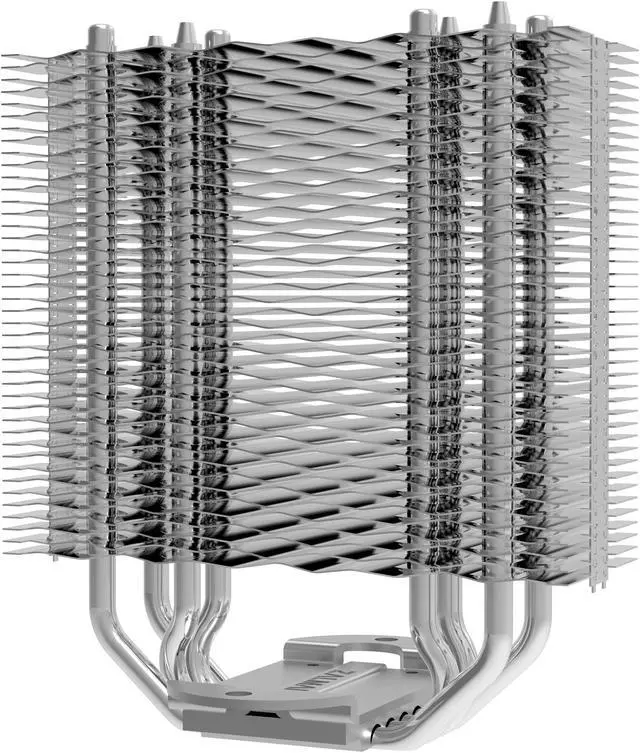

Aluminum Heat Sink
- 4D Stereoscopic corrugated cooling fin (Increasing the heat dissipation area 15%)
- 170 individual airflow passages

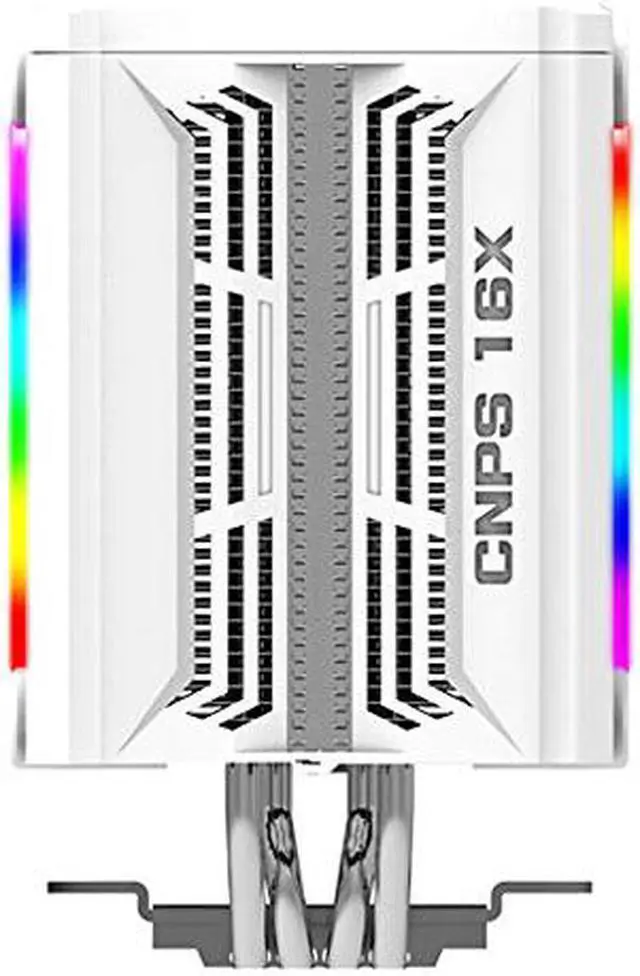

Addressable RGB LED Sync
Zalman's original LED design provides wider and brighter LED effect in all direction.

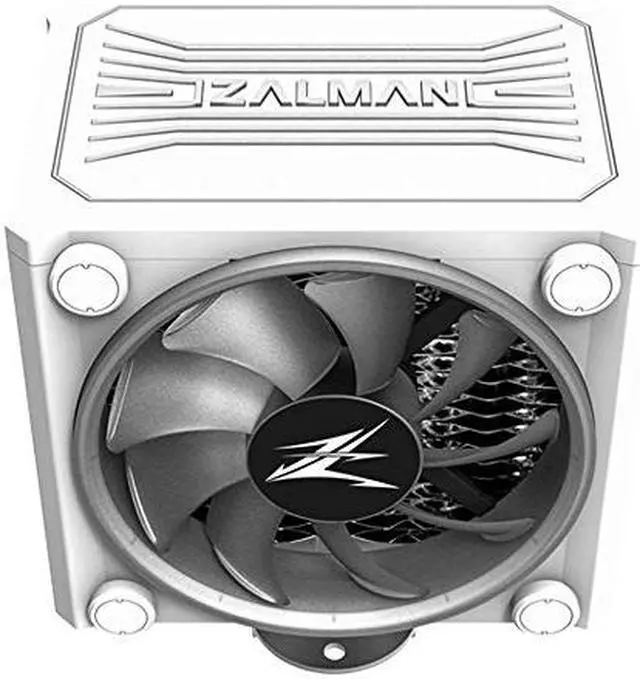

Made with "Ultrasonic Welding" Smaller Hosing Size, with Larger Impeller Fan Size
The first ring fan to use "Ultrasonic Welding" technology to minimize the thickness of the housing. This technology allows the impeller fan size to be more than 105mm.
High Thermal Conductivity ZM-STC8
The ZM-STC8, which comes with the CNPS16X, fills the fine space between the CPU and 16X, boosting the cooling effect and providing excellent cooling performance.
SPECIFICATIONS
| Dimensions | 140(L) x 100(W) x 165(H)mm |
|---|---|
| Materials | Pure Aluminum, Pure Copper, ABS |
| Weight | 880g |
| TDP | 180W |
| Heat Dissipation Area | 5,177cm2 |
| Fan Bearing Type | EBR Bearing |
| Fan Speed | 800~1,500 RPM ± 10% |
| MAX Fan Noise Level | 27.0dB(A) ± 10% |
| MAX Fan Air Flow | 49 CFM |
| Fan Life Span | 50,000 hours |
| MAX Fan Air Pressure | 1.21mm H2O |
| Fan Connector Type | Fan: 4-Pin PWM, Fan LED: 3-Pin Addressable, Top LED Cover: 3-Pin Addressable |
| Rated Voltage | Fan: 12V, Fan LED: 5V, Top LED Cover: 5V |
| Rated Current | Fan: 0.2A, Fan LED: 0.65A, Top LED Cover: 0.7A |
| Power Consumption | Fan: 2.4W, Fan LED: 3.25W, Top LED Cover: 3.5W |
| Socket Compatibility | Intel: LGA2066/2011-V3/2011/1200/ 115X CPUs, AMD: AM4/AM3+/AM3 CPUs |
