Dynatron R18 1U Rackmount CPU Cooler, Intel LGA 2011, i7, Xeon, Socket R

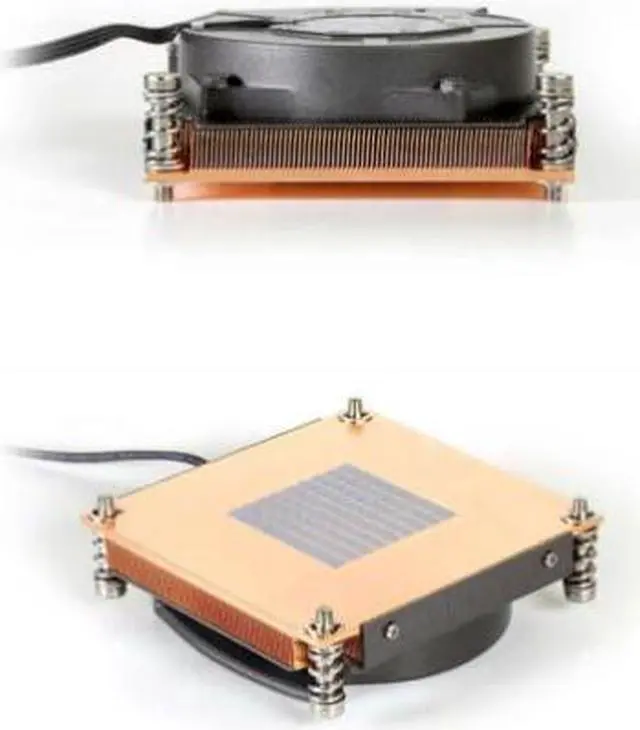

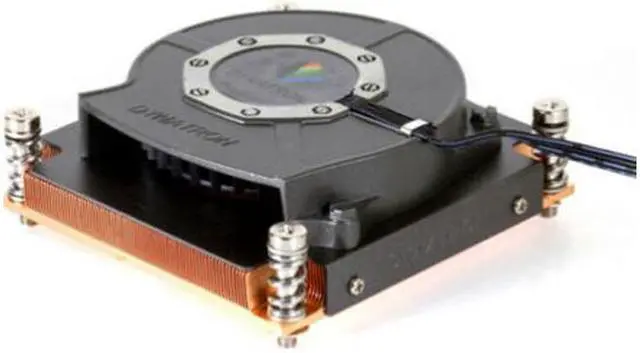

- Active 1U rackmount CPU cooler from Dynatron® for Intel® LGA 2011 (Socket R) Sandy Bridge server processors. The R18 1U CPU cooler is comprised of two components. The copper heatsink with skived-fins provide optimal heat transfer and dissipation and is aligned (fin direction parallel to airflow) to the 80mm blower on top. Using this design, the R18 is able to provide cooling for processors with a maximum TDP of 95W in a compact 1U design. Thermal compound is pre-printed with Shin-Etsu G751; no additional thermal compound is required.
- Solid copper heatsink with skived-fins
- Dual-ball bearing blower for durability
- Supports 1U+
- Pre-printed thermal compound
- RoHS Compliance
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Manufacturer's P/N: R18
Dimensions: 90 x 90 x 27.7 mm 3.54" x 3.54" x 1.1" (in inches)
Blower Size: 80mm x 80mm x 15mm
CPU Support: LGA 2011 (Socket R) Sandy Bridge-E Intel® Core i7, Xeon® E5 and other LGA 2011 processors 95W
TDP MAX Features: Shin-Etsu G751 Thermal Compound (pre-printed)
Rated Voltage: 12V
Input Power: At
Duty Cycle 20%: 0.6 W At
Duty Cycle 50%: 3.84 W At
Duty Cycle 100%: 14.4
W Speed: At
Duty Cycle 20%: 1000 RPM At
Duty Cycle 50%: 3500 RPM At
Duty Cycle 100%: 6000 RPM
Static Pressure: At
Duty Cycle 20%: 2.27 mm-H2O At
Duty Cycle 50%: 18.56 mm-H2O At
Duty Cycle 100%: 54.5 mm-H2O
Maximum Airflow: At
Duty Cycle 20%: 6.5 CFM At
Duty Cycle 50%: 11.2 CFM At
Duty Cycle 100%: 19.1 CFM
Noise Level: At
Duty Cycle 20%: 21.5 dBA At
Duty Cycle 50%: 43.0 dBA At
Duty Cycle 100%: 55.8 dBA
Connector: 4-pin PWM
Dimensions: 90 x 90 x 27.7 mm 3.54" x 3.54" x 1.1" (in inches)
Blower Size: 80mm x 80mm x 15mm
CPU Support: LGA 2011 (Socket R) Sandy Bridge-E Intel® Core i7, Xeon® E5 and other LGA 2011 processors 95W
TDP MAX Features: Shin-Etsu G751 Thermal Compound (pre-printed)
Rated Voltage: 12V
Input Power: At
Duty Cycle 20%: 0.6 W At
Duty Cycle 50%: 3.84 W At
Duty Cycle 100%: 14.4
W Speed: At
Duty Cycle 20%: 1000 RPM At
Duty Cycle 50%: 3500 RPM At
Duty Cycle 100%: 6000 RPM
Static Pressure: At
Duty Cycle 20%: 2.27 mm-H2O At
Duty Cycle 50%: 18.56 mm-H2O At
Duty Cycle 100%: 54.5 mm-H2O
Maximum Airflow: At
Duty Cycle 20%: 6.5 CFM At
Duty Cycle 50%: 11.2 CFM At
Duty Cycle 100%: 19.1 CFM
Noise Level: At
Duty Cycle 20%: 21.5 dBA At
Duty Cycle 50%: 43.0 dBA At
Duty Cycle 100%: 55.8 dBA
Connector: 4-pin PWM
