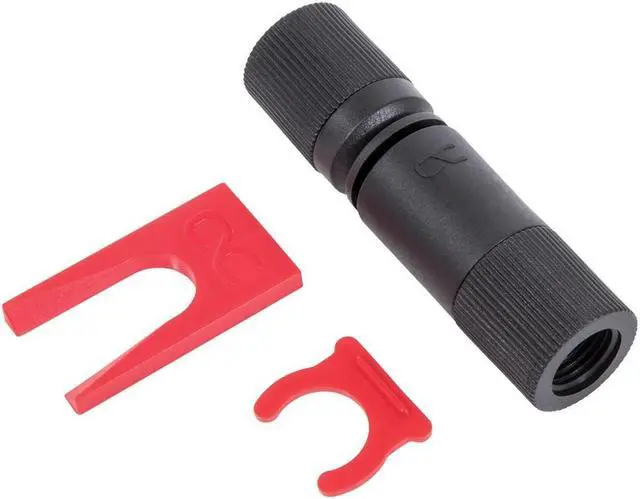

alphacool es g1/4 to g1/4 quick release connector kit, push-in industry version

The Alphacool ES Quick Disconnect Fittings Industry are taken from the Alphacool Enterprise Solutions product range. Special emphasis has been placed on longevity and safety. Alphacool offers specialised water cooling products for servers and workstations in the B2B and Enterprise Solution area. Alphacool has concentrated on 3 main targets for the quick release fittings: a secure leak proof link, high tensile strength and a particularly low weight. Common quick connectors can have a diameter of over 24mm. This Alphacool quick release connectors has a diameter of only 20 mm. To close the quick-release fastener, it only needs to be pushed together. To open it again, a small ring is pulled back. This makes the quick-release fastener pop open. The water loss is minimal and consists of only 1-2 small drops. Due to the high packing density in modern servers, the quick release fastener is made of highly stable nylon. They are therefore non-conductive and cannot cause any short circuits. Nylon is also an ultra-light material, which makes it extremely easy to use. In servers and workstations with multiple processors and graphics cards, many components must be equipped with quick connectors. With the Alphacool quick release connectors, the water flow is optimised to keep the resistance as low as possible. This version also uses a double seal to ensure maximum tightness and therefore maximum safety. To further increase safety, a locking clip is also included to prevent accidental opening of the quick release fastener.

An unlocking clip makes it easier to open the quick-release fastener if required.
Technical data: L x
D: 75
x 20 mmNet weight: 23
gMaterial:
NylonThreads: 2 x
G1/4“ femaleThread length: 5, 5 mmType of quick release connector: Push
InBore diameter: 8 mm
Model: 17569
