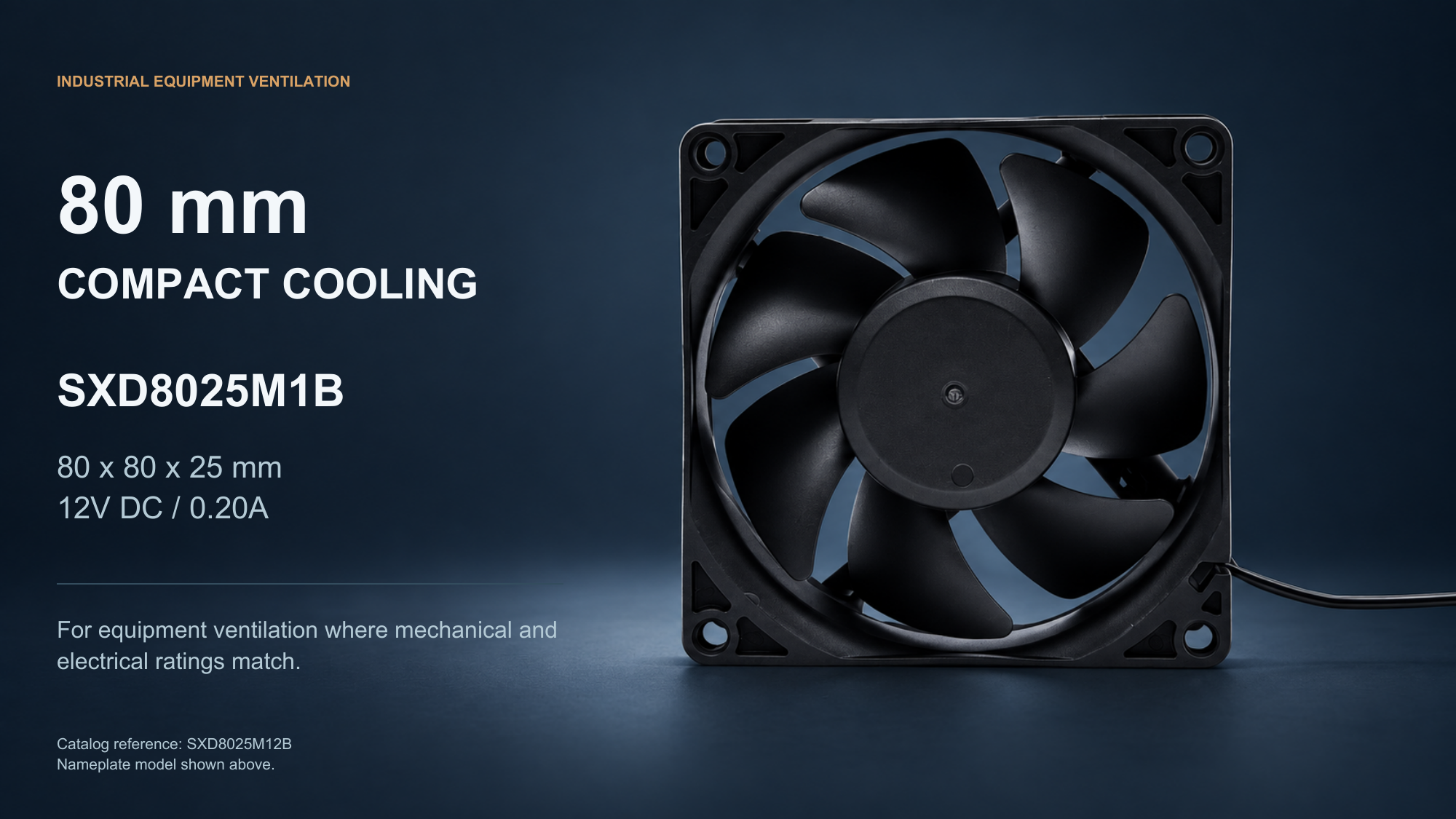

Compact Industrial Equipment Ventilation
SXD8025M1B industrial axial cooling fan. 80 x 80 x 25 mm, 12V DC and 0.20A. The seller confirms this nameplate model corresponds to catalog SXD8025M12B. Select by exact model, mechanical fit and electrical compatibility.

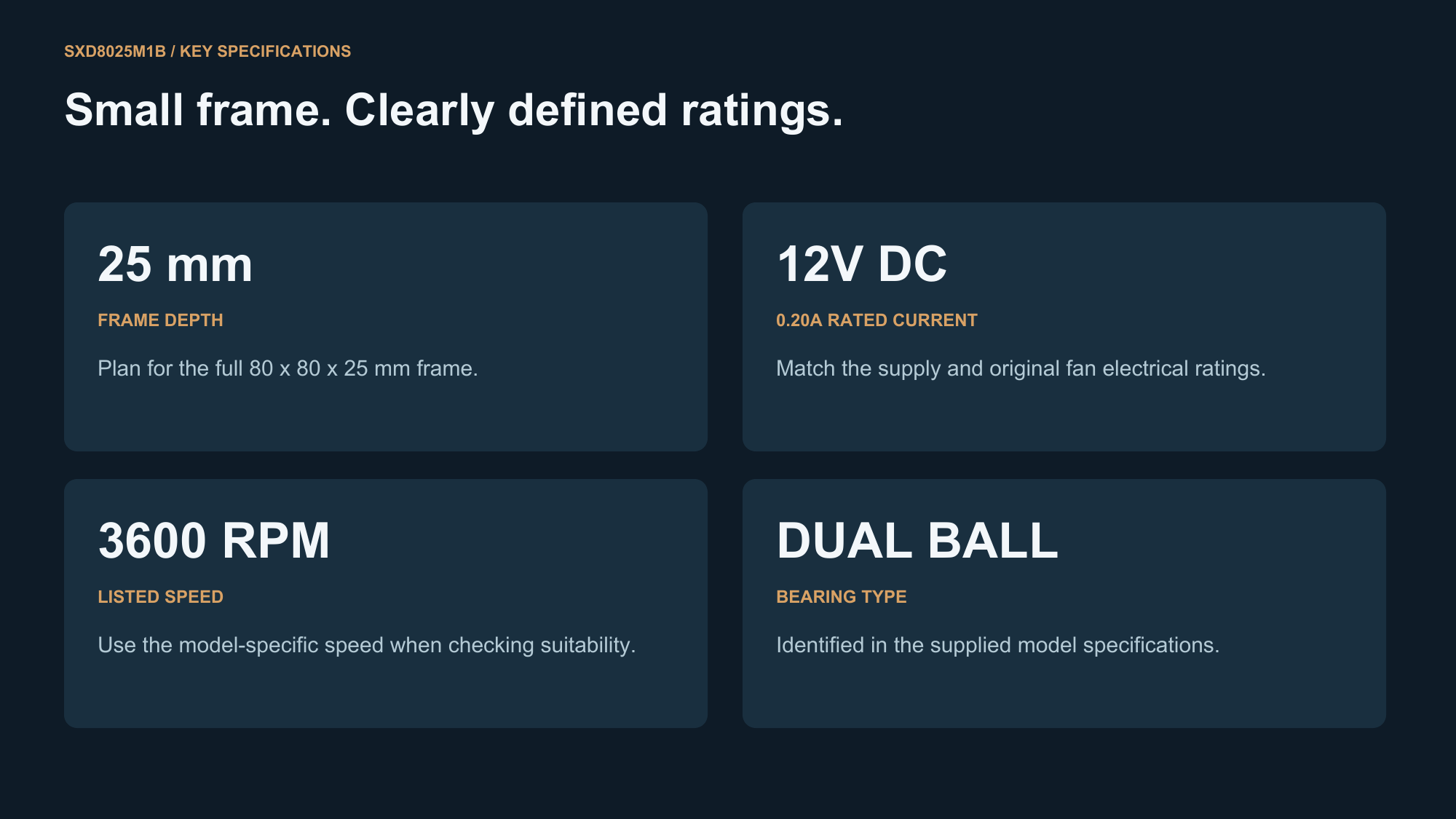

Model-Defining Specifications
25 mm frame depth, 12V DC, 0.20A, listed speed 3600 RPM and dual ball bearings. Use the complete model specification, not frame size alone, when selecting a cooling fan for equipment.

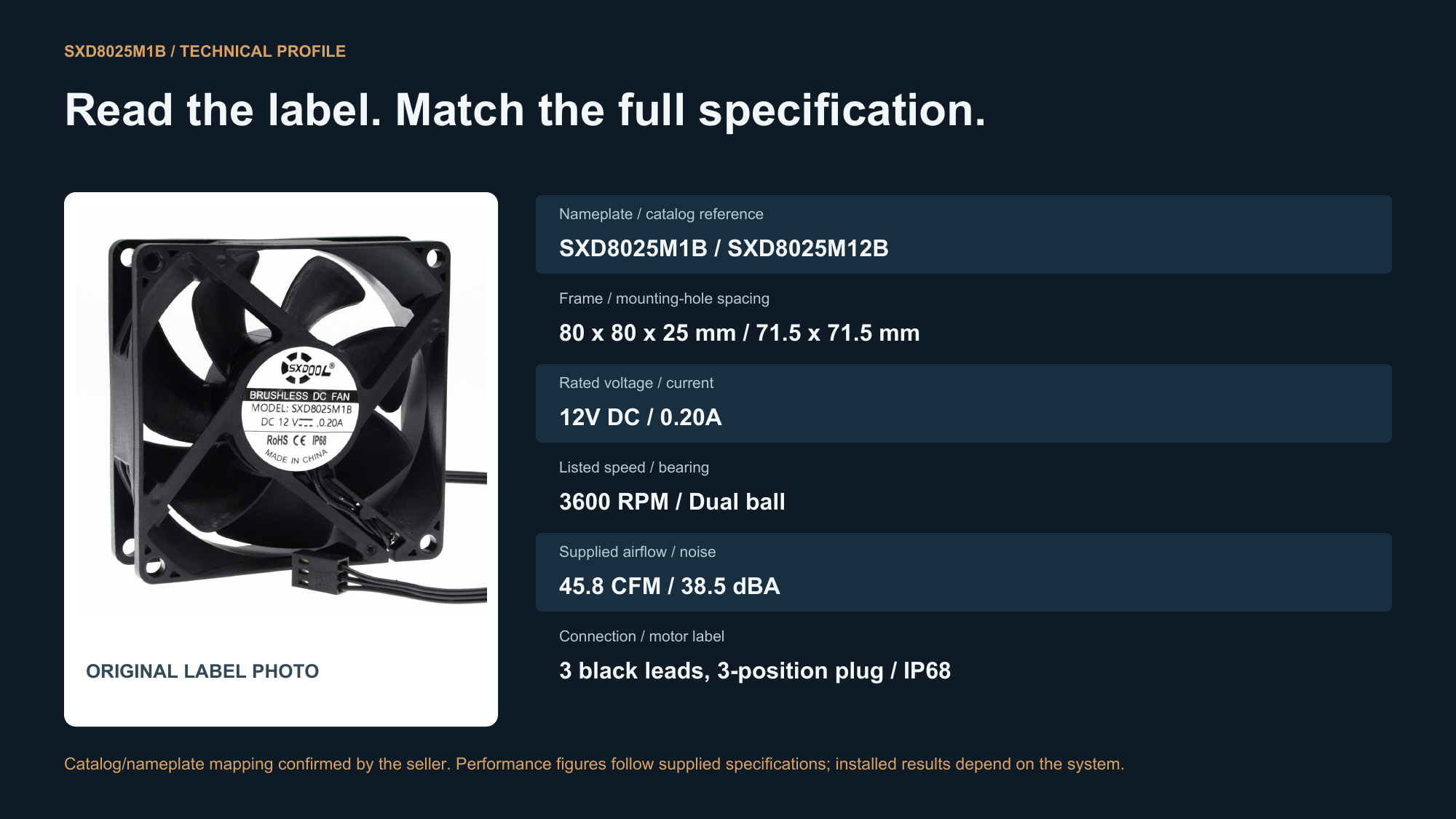

SXD8025M1B Technical Profile
Nameplate model: SXD8025M1B
Catalog model reference: SXD8025M12B (seller-confirmed same product)
Frame: 80 x 80 x 25 mm
Voltage/current: 12V DC / 0.20A
Listed speed/bearing: 3600 RPM / Dual ball
Supplied airflow/noise: 45.8 CFM / 38.5 dBA
Supplied mounting-hole spacing: 71.5 x 71.5 mm
Connection: three black leads, 3-position plug
Physical motor label marking: IP68
Performance figures are from supplied specifications; no independent test or installed-system performance guarantee is claimed.

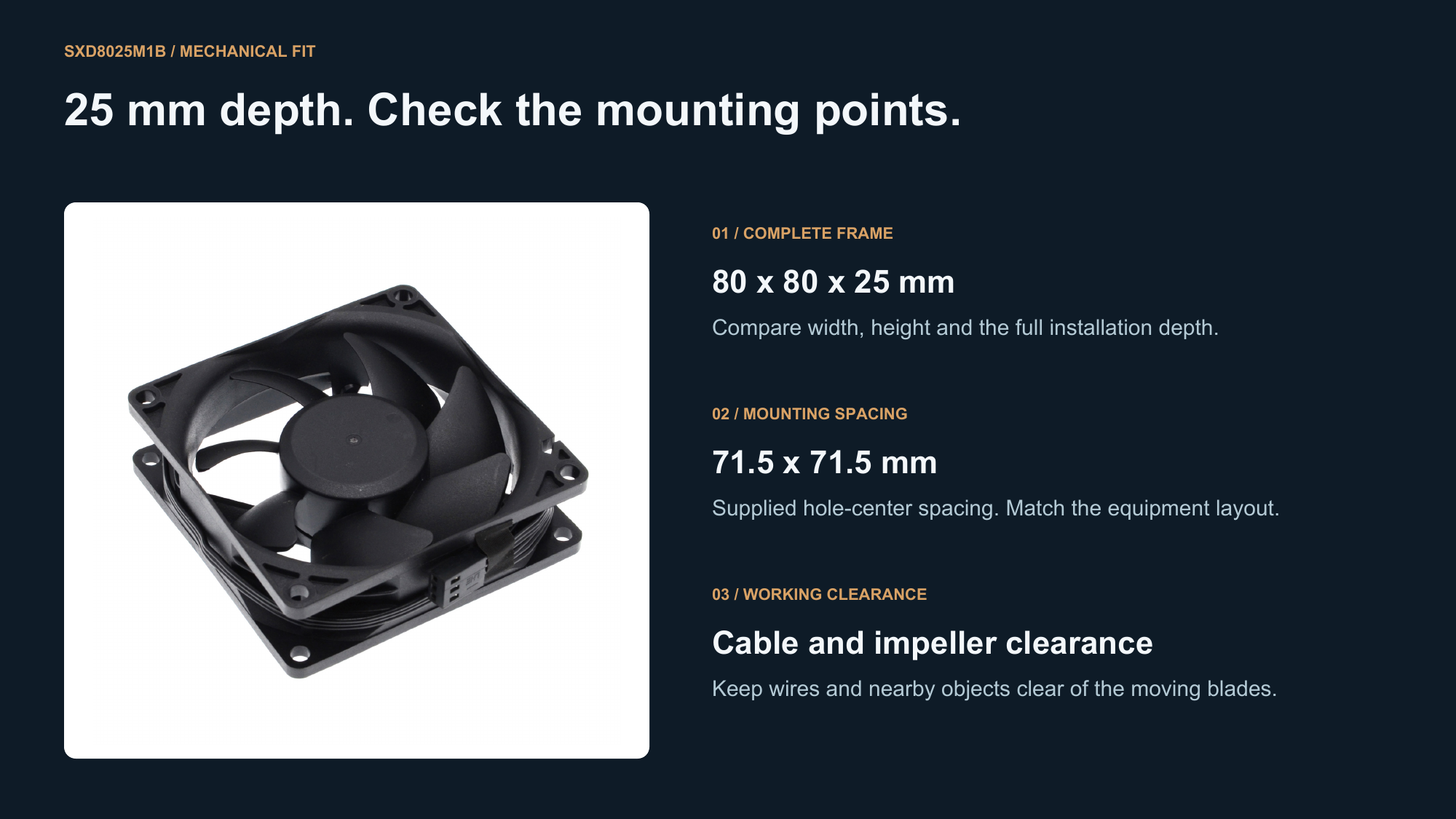

Check Frame Depth and Mounting Layout
Allow the full 25 mm frame depth. Supplied specifications show 71.5 x 71.5 mm mounting-hole spacing. Compare the equipment mounting layout, cable routing and connector clearance; an 80 mm opening alone does not confirm fit.

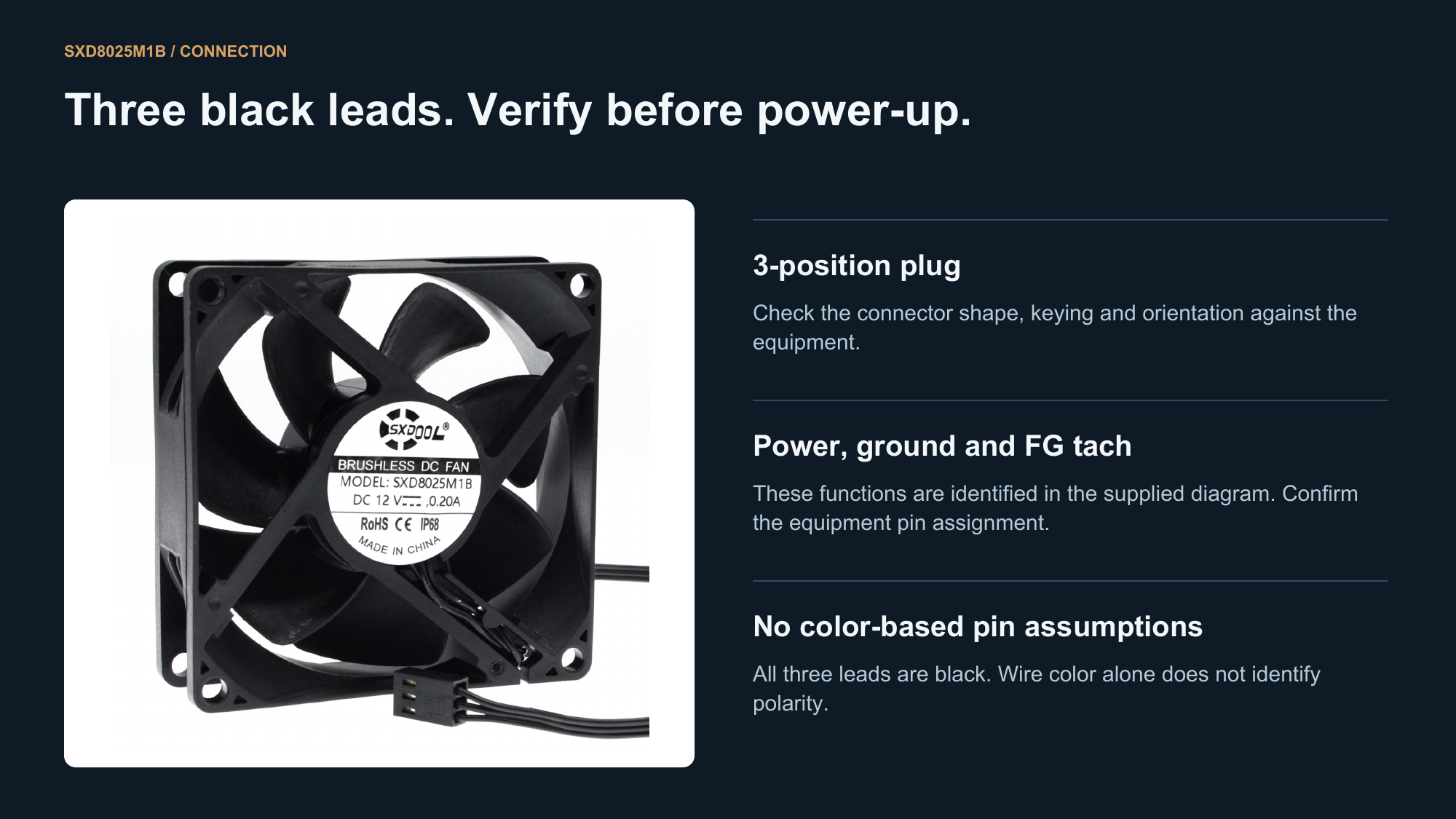

Verify the Three-Lead Connection
Original product photograph: three black leads with a 3-position plug. The supplied diagram identifies positive, ground and FG tach. Verify connector keying, orientation and equipment pin assignment before applying power. No PWM or universal pinout claim is made.

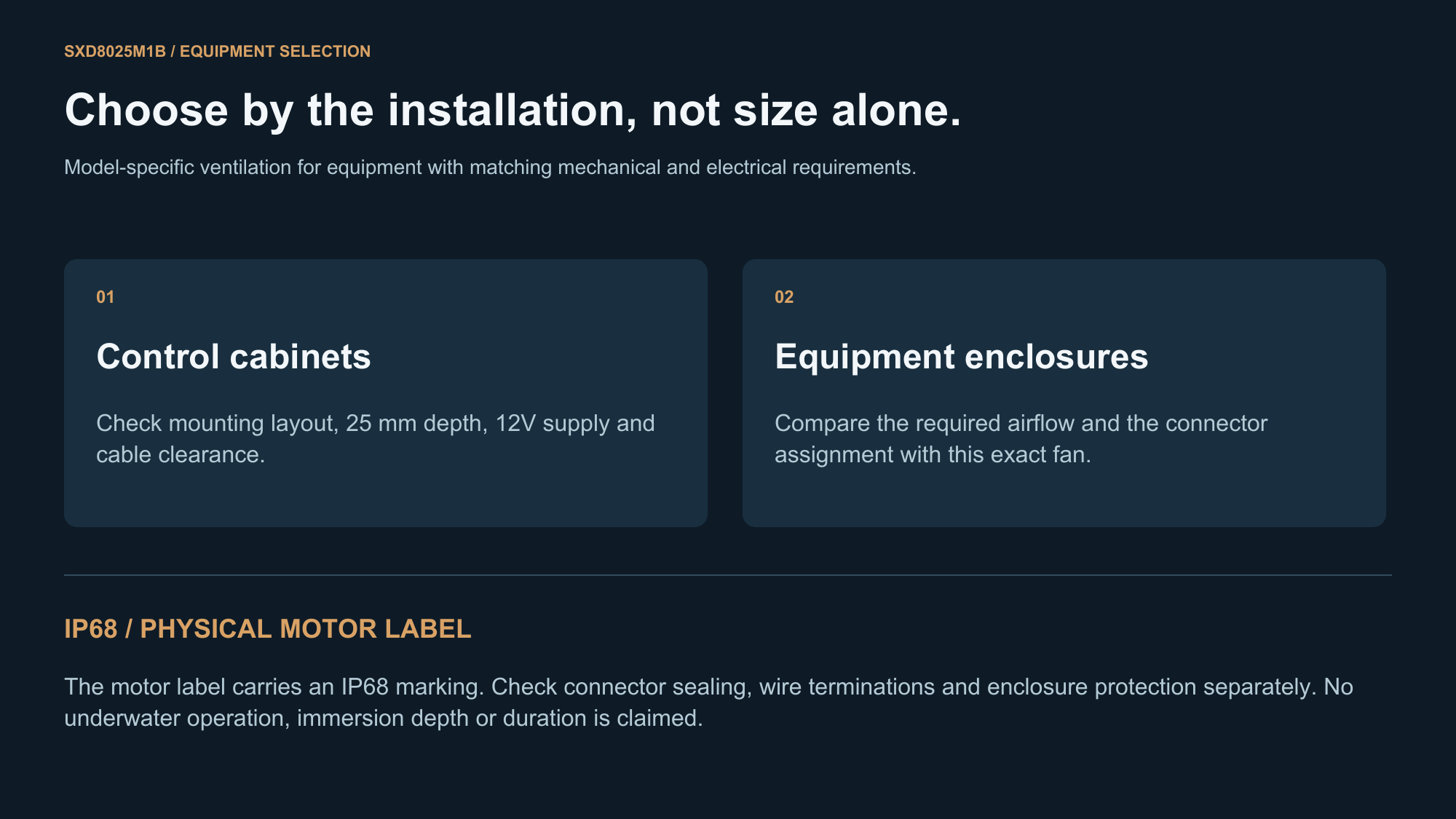

Match the Fan to the Equipment
For control-cabinet ventilation and equipment-enclosure cooling where the model, dimensions, supply, airflow requirement and connection match. IP68 appears on the motor label; it does not establish connector sealing or authorize underwater operation.

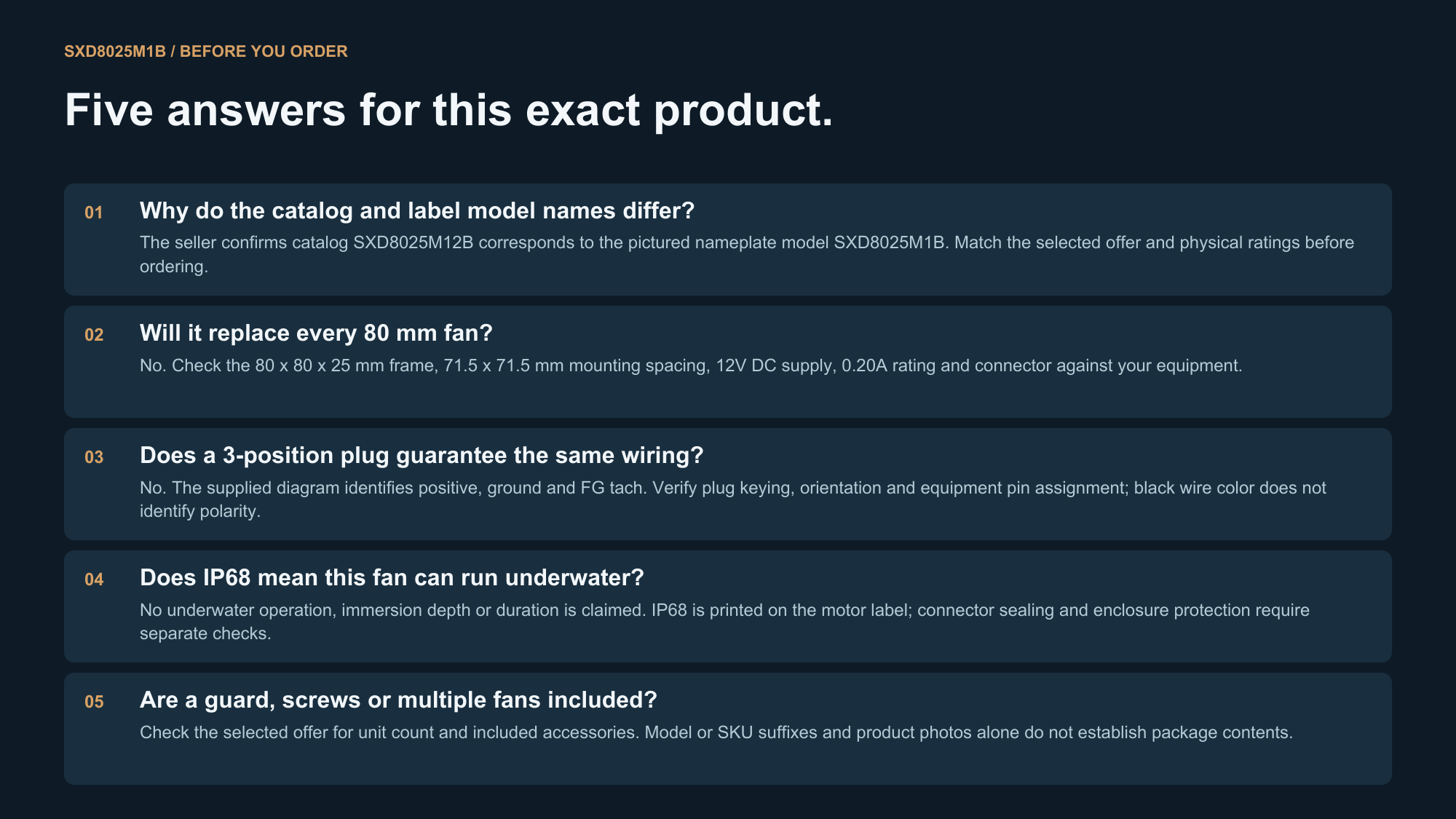

Before You Order - Model-Specific FAQ
Why do the catalog and label model names differ?
The seller confirms catalog SXD8025M12B corresponds to the pictured nameplate model SXD8025M1B. Match the selected offer and physical ratings before ordering.
Will it replace every 80 mm fan?
No. Check the 80 x 80 x 25 mm frame, 71.5 x 71.5 mm mounting spacing, 12V DC supply, 0.20A rating and connector against your equipment.
Does a 3-position plug guarantee the same wiring?
No. The supplied diagram identifies positive, ground and FG tach. Verify plug keying, orientation and equipment pin assignment; black wire color does not identify polarity.
Does IP68 mean this fan can run underwater?
No underwater operation, immersion depth or duration is claimed. IP68 is printed on the motor label; connector sealing and enclosure protection require separate checks.
Are a guard, screws or multiple fans included?
Check the selected offer for unit count and included accessories. Model or SKU suffixes and product photos alone do not establish package contents.
