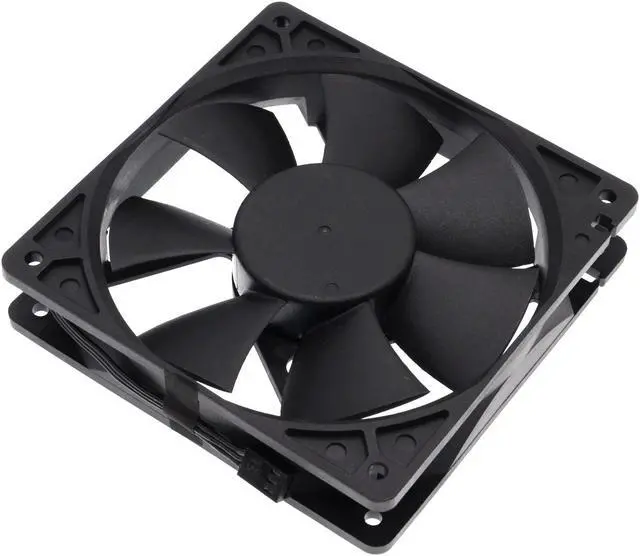

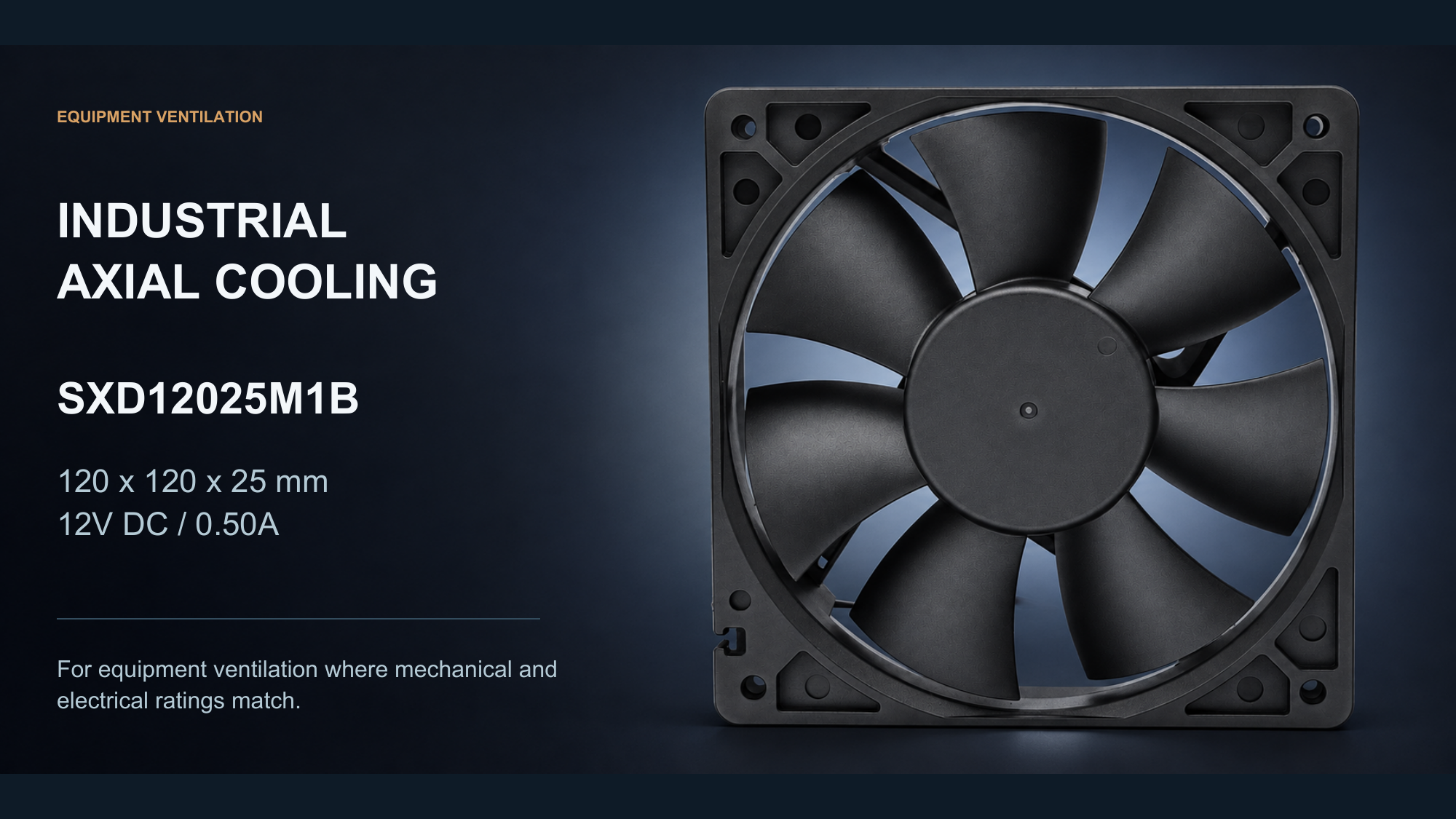

SXD12025M1B industrial axial cooling fan. 120 x 120 x 25 mm frame. 12V DC, 0.50A. For equipment ventilation when model, mechanical and electrical requirements match.
Core model specifications: 25 mm frame depth, 12V DC, 0.50A, 3050 RPM and dual ball bearing. Use exact-model specifications, not size alone, for selection.

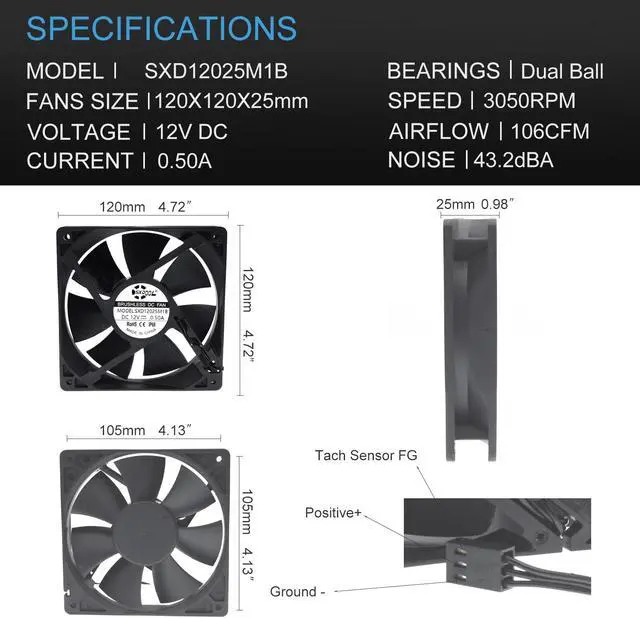

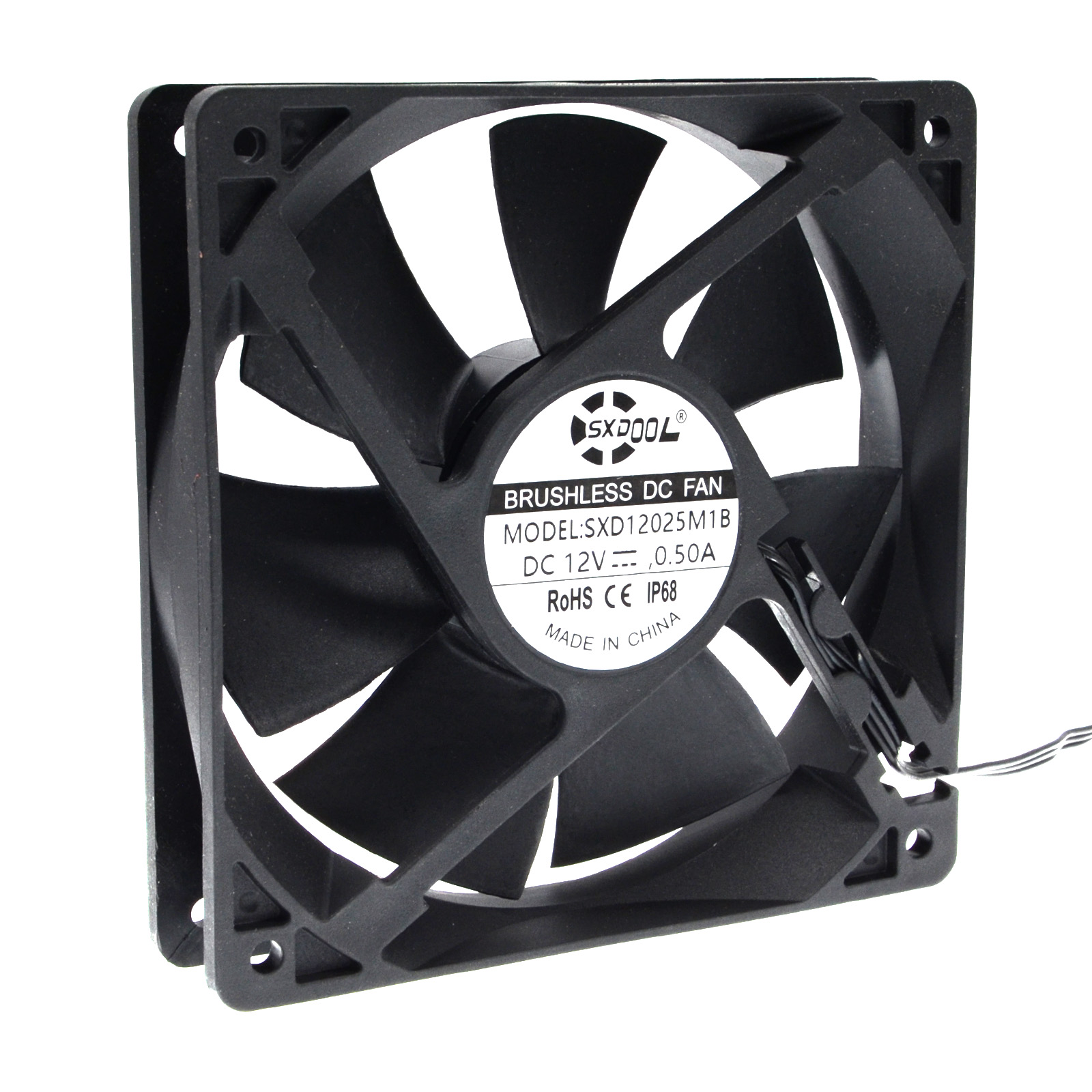

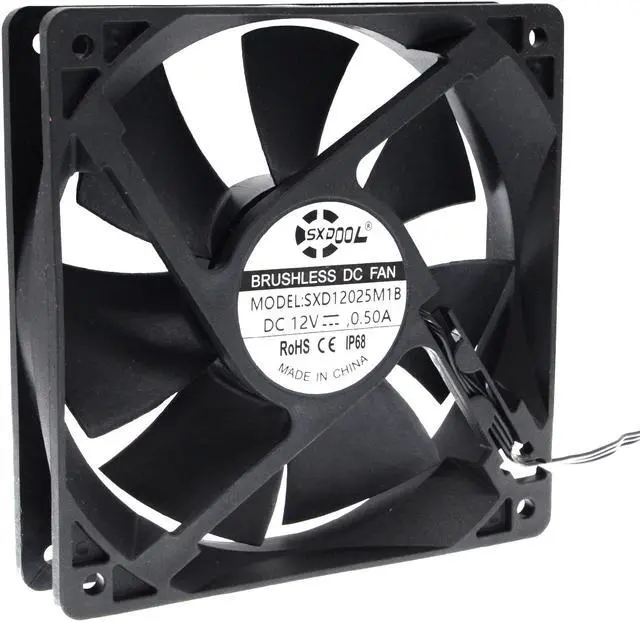

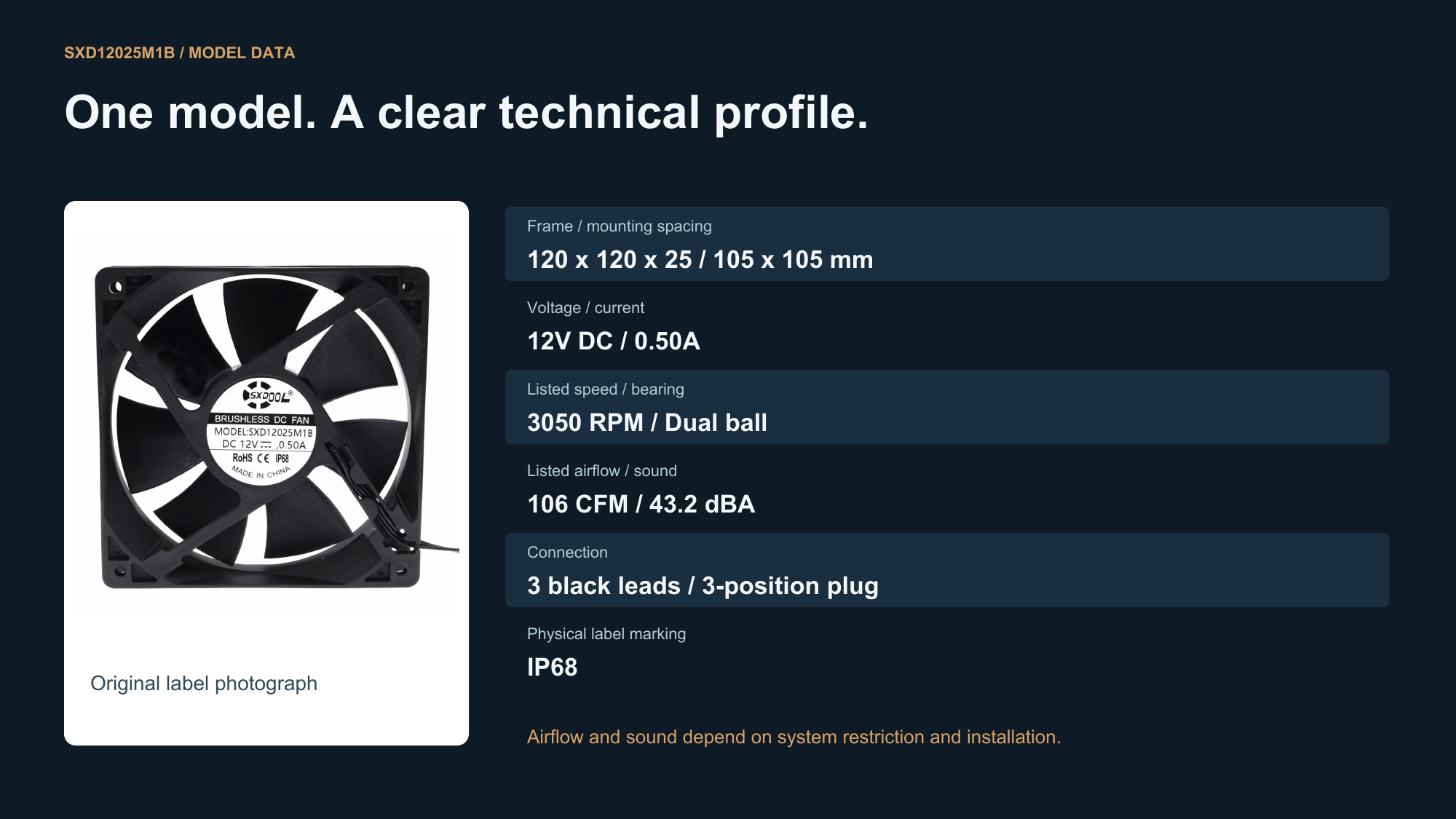

Full model SXD12025M1B. Frame 120 x 120 x 25 mm. Supplied specification lists 105 x 105 mm mounting spacing, 106 CFM and 43.2 dBA. Three black leads and a 3-position plug. IP68 appears on the physical motor label.

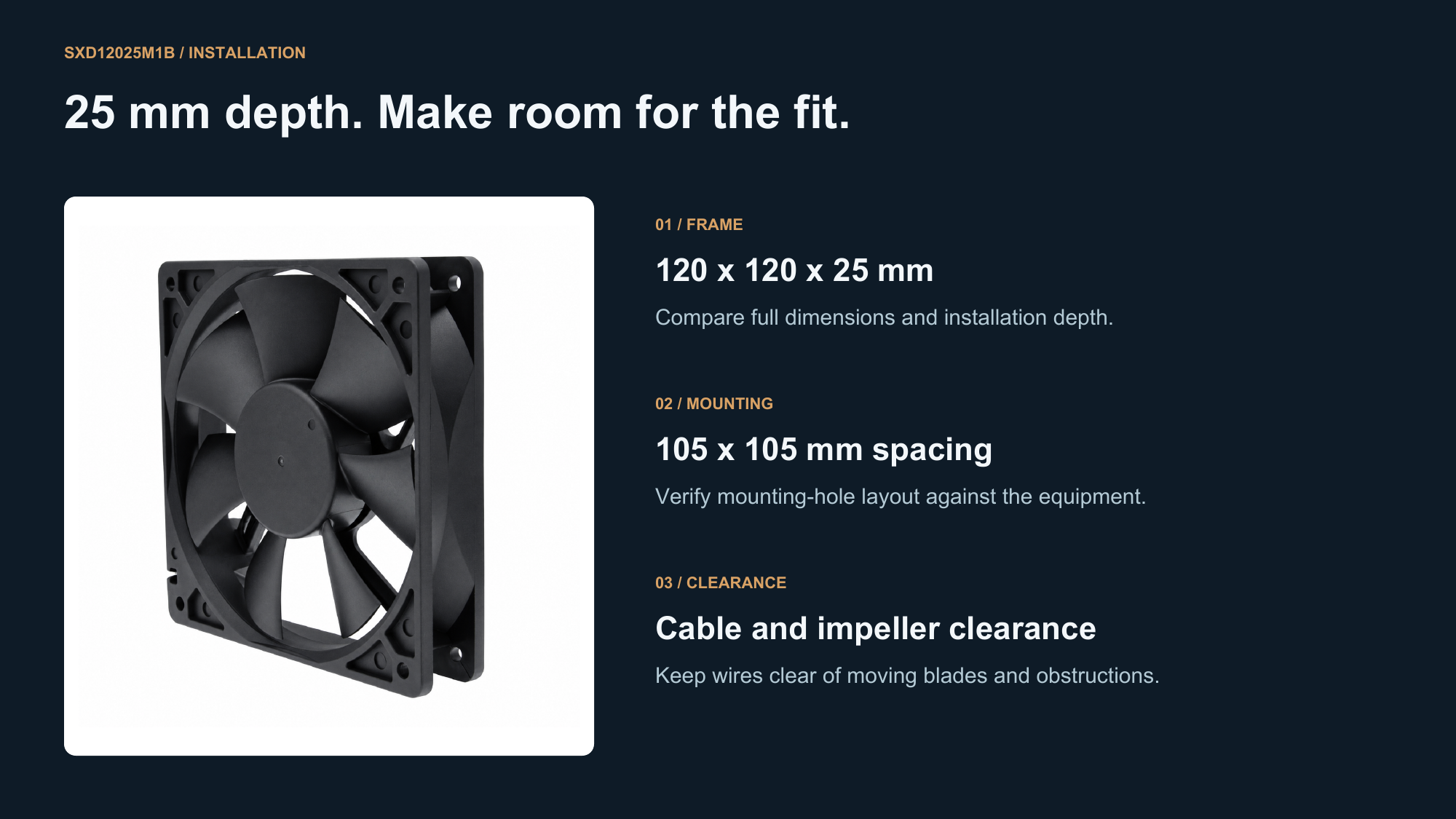

Installation check: allow the full 25 mm frame depth, verify 105 x 105 mm mounting-hole spacing against the equipment, and keep cable routing and obstructions clear of the impeller.

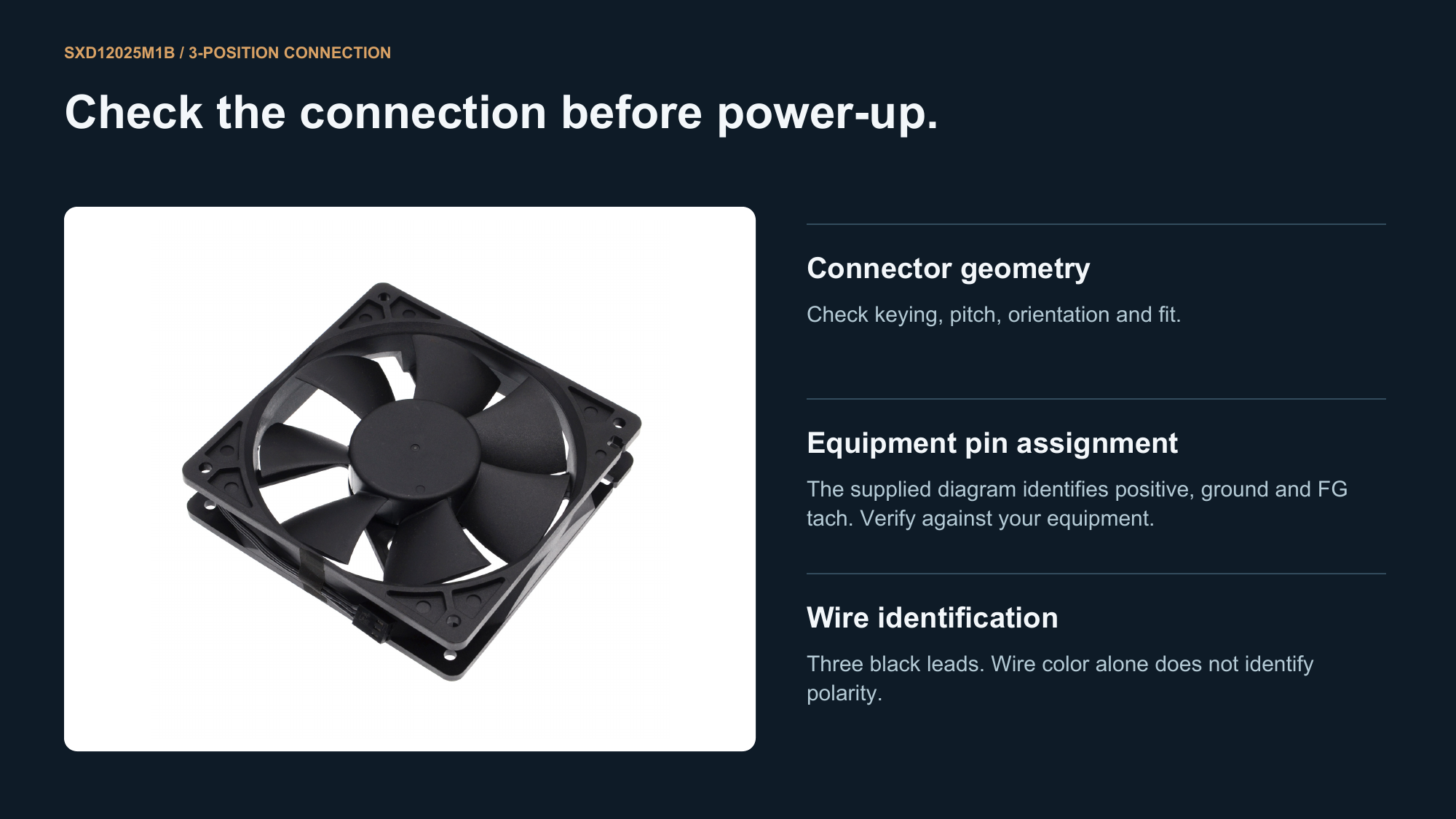

Connection check: three black leads and a 3-position plug. The supplied model diagram identifies positive, ground and FG tach. Verify connector keying, orientation and equipment pin assignment before power-up.

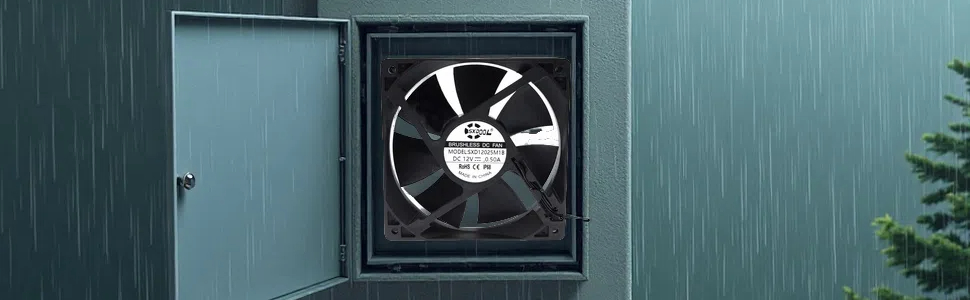

Control cabinets and equipment enclosures are conditional applications, not universal fitment claims. Match the full model, dimensions, electrical supply, airflow requirement and connection. IP68 label marking does not establish connector sealing or underwater operation.
What are the model ratings?
SXD12025M1B: 120 x 120 x 25 mm, 12V DC, 0.50A, 3050 RPM and dual ball bearing. The supplied specification lists 106 CFM and 43.2 dBA.
Can a 12038 fan be substituted?
Not on size name alone. This model has a 25 mm frame depth. Compare the full model, mounting, electrical ratings, airflow requirements and connection before replacement.
How is the 3-position plug connected?
The supplied model diagram identifies positive, ground and FG tach. Verify plug orientation, keying and your equipment pin assignment. Black wire color alone does not identify polarity.
Does IP68 mean it can run underwater?
No underwater operation, immersion depth or duration is claimed here. The physical label is marked IP68; the connector, wire terminations and enclosure need their own protection.

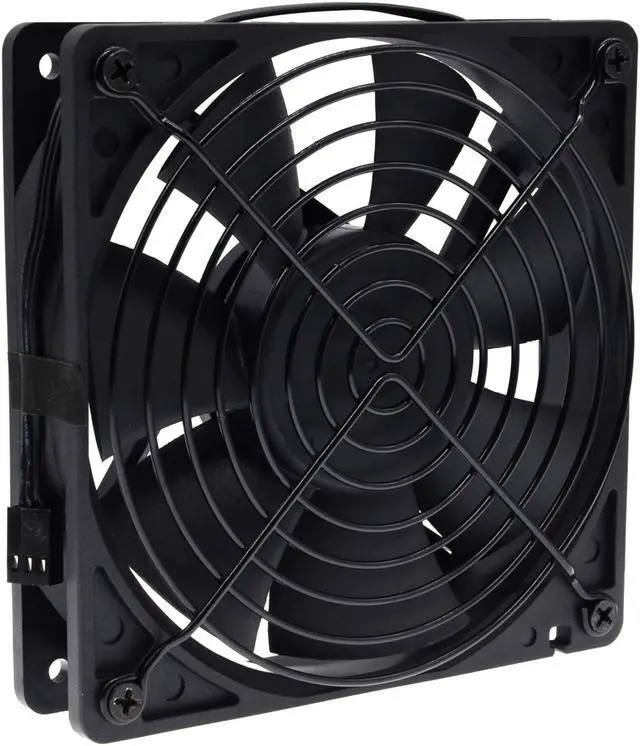

Is a guard or hardware included?
Inclusion of a guard, screws or other accessories is not established by these photos. Check the selected offer and package contents before ordering.
