Backplate Memory Radiator For Nvidia RTX 3090 3080 Series Graphics Card VGA VRAM Alloy Panel Dual PWM Fan Cooling Cooler

Product Option:Blade Color:1mm 700 set.Contact with us if you need other option.

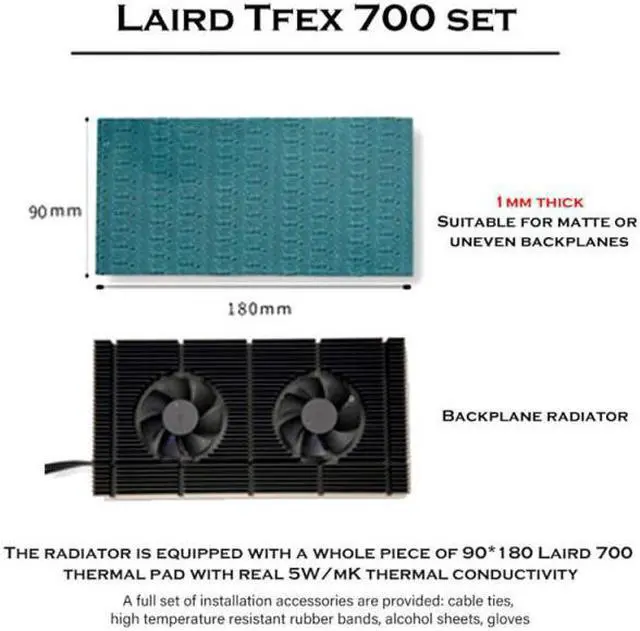

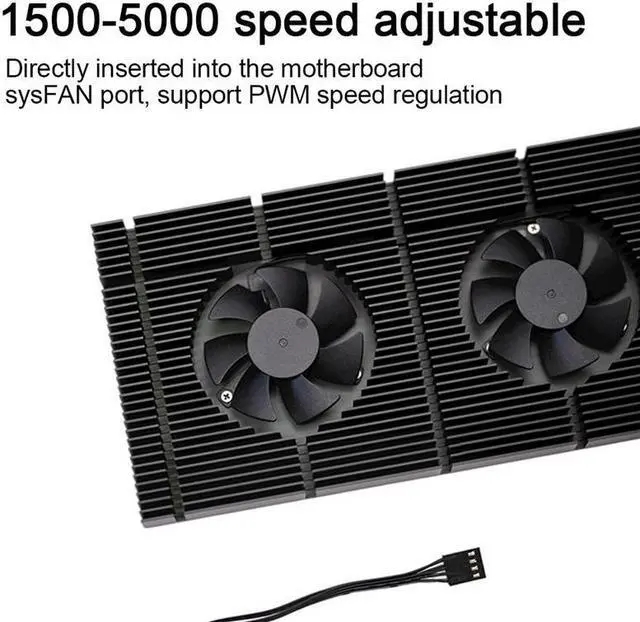

Description: Anodized black CNC machining, standard dual fan design. Good compatibility, the thickness of the radiator body is 15 mm. Support graphics card vertical installation. PS: The actual installation needs to be equipped with a thermal pad. It is directly in contact with the metal backplate and cannot conduct sufficient heat. The actual installation height is 15mm of the heat sink + the thickness of the thermal pad. Function: Solve the high-temperature problem of 3090 graphics card backplate memory. Integrated Backplate Radiator: This does not need to be patched together, easy to install. Adjustable Speed Fan: Standard dual 5010 fans, up to 20CFM under full load, low-noise hydraulic bearings, PWM speed control possible, both dynamic and static. Feature: The fan cable is a 4pin interface, which is the same as a normal chassis fan and is connected to a fan socket such as SYS FAN on the motherboard. It can be booted into the motherboard BIOS to adjust the speed, the speed range is 1500~5000 rpm, which can be adjusted arbitrarily. About the Choice of Thermal Pad: The graphics card backplate is flat: 0.5mm thick thermal pad is recommended. The graphics card backplate is uneven: 1mm thermal pad is recommended.

Specifications:

Item Name: Backplate Radiator Model Number: GK6

Color: Black Thermal pad optional: 1mm pad 500 / 0.5mm pad 600 / 1mm pad 600 / 0.5mm pad 700 / 1mm pad 700

Body material: Aluminum alloy Body size: 90*180*15mm Fan model: 5010 bracket Fan speed: 1500-5000±5% Fan interface: Small 4pin, PWM speed adjustable Fan air volume: 10.3CFM ± 5% (single) Fan pressure: 25mm / H20 ± 5% (single) Bearing type:Sleeve bearing Wire length: 400mm ± 10mm

Note:

Packing list
