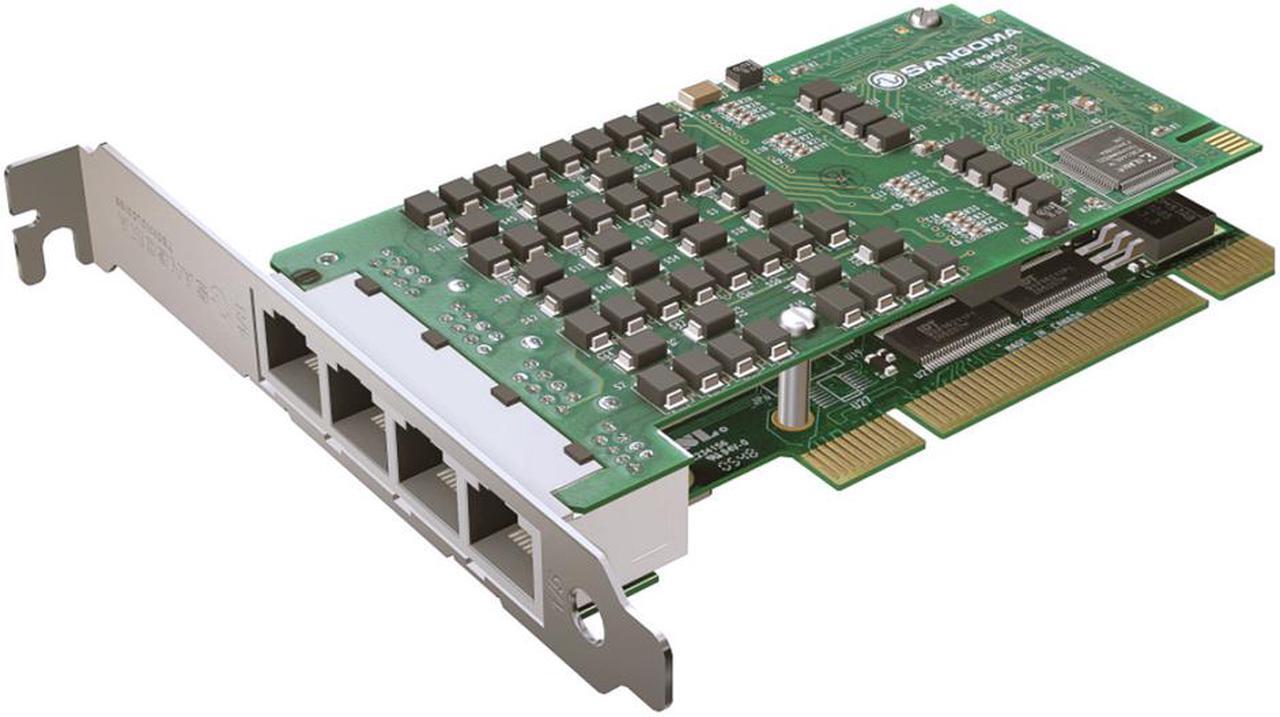

Sangoma A108DE Octal (8-Port) T1/E1/J1 PCI-E Card w/Echo Cancellation
- Eight T1/E1 ports with a single PCI interface for high performance voice and data applications.
- TDM clocking mode: Network timing can be passed from a network -connected DS0 to any or all of the other ports. Both T1 and E1 are supported simultaneously, making it possible to mix T1 channel banks and E1 networks with full channel synchronization.
- Line decoding: HDB3, AMI, B8ZS. Framing: CRC4, non-CRC4, ESF, D4T1/E1.
- Support for the Asterisk, OPAL Yate, FreeSWITCH PBX/IVR projects, as well as other Open Source and proprietary PBX/Switch/IVR/VoIP gateway applications.
- All Sangoma's AFT products, including the A108 card use the same base PCI interface card, and the same professionally engineered firmware on the same family of Field Programmable Gate Arrays.
- A108, A108D PCI: Fully PCI 2.2 compliant, compatible with all commercially available motherboards, proper interrupt sharing without manual tuning.
- A108E, A108DE PCI Express: 1 Lane PCI Express bus.
- Dimensions: 2U Form factor: 120mm x 55
+
+
Overview
Specs
Reviews
The A108 is the octal port version of Sangoma's family of Advanced, Flexible Telecommunications (AFT) hardware designed for optimum support of voice and data over T1, E1 and J1.
Obtainable in both PCI (A108) and PCI Express (A108E) form factors, the A108 provides up to 16.4Mbps of full duplex data throughput or 240 voice calls over eight T1 and or E1 lines to support high performance PCI-based routing and telephony systems. Advanced clocking features allow E1 and T1 lines to be mixed with full synchronization. As part of Sangoma's AFT range of products, the A108 makes use of the same high performance PCI interface that has been deployed in large quantities all over the world.
The available A108D and A108DE cards include Octasic's DSP hardware and certified algorithms providing carrier-grade echo cancellation and Voice Quality Enhancement (VQE) functions.
Like all the Sangoma AFT family, the A108 is field upgradeable to take advantage of hardware and software improvements as they become available.
Obtainable in both PCI (A108) and PCI Express (A108E) form factors, the A108 provides up to 16.4Mbps of full duplex data throughput or 240 voice calls over eight T1 and or E1 lines to support high performance PCI-based routing and telephony systems. Advanced clocking features allow E1 and T1 lines to be mixed with full synchronization. As part of Sangoma's AFT range of products, the A108 makes use of the same high performance PCI interface that has been deployed in large quantities all over the world.
The available A108D and A108DE cards include Octasic's DSP hardware and certified algorithms providing carrier-grade echo cancellation and Voice Quality Enhancement (VQE) functions.
Like all the Sangoma AFT family, the A108 is field upgradeable to take advantage of hardware and software improvements as they become available.
