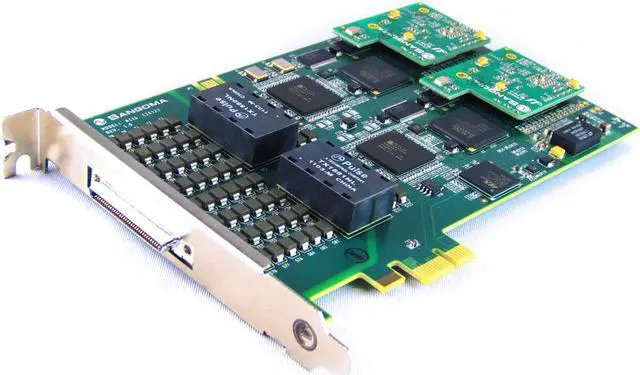

Sangoma A116E -16-Span T1/E1/J1 Board
- Sixteen T1/E1 ports with optimum PCIExpress interface for high performance voice and data applications
- Mix T1 channel banks and E1 networks with full channel synchronization. TDM clocking mode lets network timing to be passed from a network-connected DS0 to any or all of the other ports so both T1 and E1 are supported simultaneously
- Support for Asterisk and FreeSwitch
- Fully compatible with all commercially available motherboardsproper PCI-standard interrupt sharing without manual tuning
- Dimensions: Full height by half length (107mm x 176mm)
- Connector: Dense 68 pin SCSI type interface
- Intelligent hardware: Downloadable FPGA programming with multiple operating modes; add new features related to voice and/or data when they become available
- Line decoding: HDB3, AMI, B8ZS
- Framing: CRC-4, Non CRC4, ESF, SF, D4, J1 (Japan)
- PCI Express Bus Version: 1.1
- Maximum operational power: 9W (2.42A @ 3.3V + 0.083A @ 12V)
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
A116 is part of Sangomas family of Advanced Flexible Telecommunications hardware product line using high performance PCI Express interface, providing superior performance in critical systems all over the world. The A116 supports up to 32.8 Mbps of full duplex data throughout 480 voice calls using 16 T1/E1/J1 spans. With Sangoma boards, you can take advantage of hardware and software improvements, as soon as they become available. The A116, like all boards in Sangomas AFT family, is field-upgradable with crash-proof firmware.
*Sangoma A116E: PCIe, 16 spans, no H/W Echo Cancellation (not recommended for voice applications) *
*Sangoma A116E: PCIe, 16 spans, no H/W Echo Cancellation (not recommended for voice applications) *
