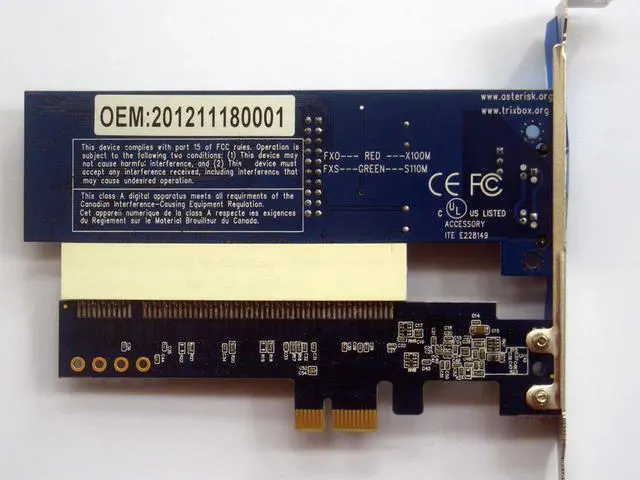

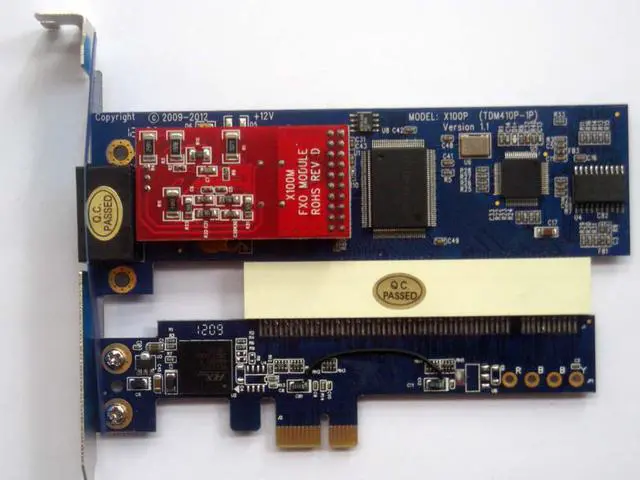

For Asterisk X100P-E FXO FXS PCI-E single port voice card TDM410P -fxo (Combination of 2 cards of X100P + PCI to PCI-E)

This card is actually a special low-profile single-port version designed with TDM410P, which is suitable for Asterisk beginners to master the basic installation and setup of the software.
1. Compatible with FXO and FXS modules, providing 12V indicator light
2. There is a blue light to indicate whether the module is in working state
3. There are high and low baffles that can be installed in a standard 1U 2U chassis, if the PCI-E interface can be used in a 2U chassis.
4. The card adopts a large-scale machine patch process, and does not use cheap electrolytic capacitors. They are all durable capacitors in patch packaging to ensure quality.
5. The PCB board is made of blue high-grade substrate, and the PCI gold finger is very thickly plated, and it is used according to the 5-year lifespan.

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

TDM410P has better support for open source software. After all, the X100P is modified with a 56K modem, so there are many uncertain problems in use, causing a lot of trouble for asterisk enthusiasts to learn, and then distorting the stability and performance of the asterisk kernel. When used in conjunction with Asterisk, X100P can basically realize all the functions of the analog telephone voice card external port, namely FXO and FXS. E.
g:
PickUp: Off-hook
HangUp: hang up
Play File: Play a voice file
Record File: Record a voice file
Get DTMF: Detect and receive DTMF input
Send DTMF: Send DTMF
Flash Hook: Hook
Hook Play Tome: Play a single tone
Fax Detect: Detect fax tones
Monitor: call monitor
Dial: Dial... In fact, in the process of realizing the above functions, X100P is only a physical channel interface, and all operations are realized by the CPU on the computer motherboard.
Note: Only for sale. Technical support is not provided.
