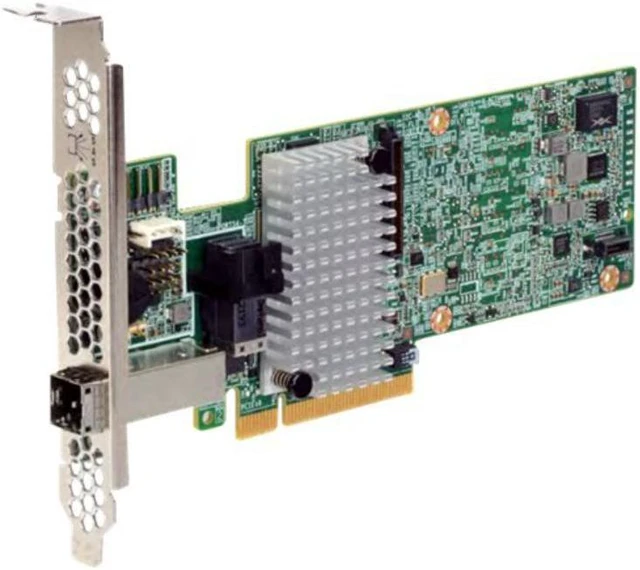

Broadcom MegaRAID SAS 9380-4i4e - Storage controller (RAID) - 4 Channel - SATA / SAS 12Gb/s - low profile - RAID RAID 0, 1, 5, 6, 10, 50, JBOD, 60 - PCIe 3.0 x8

General

• Device Type: Storage controller (RAID) - plug-in card - low profile
• Host Bus: PCIe 3.0 x8

Storage Controller

• Interface: SATA / SAS 12Gb/s
• Data Transfer Rate: 12 Gbit/s
• Buffer Size: 1 GB
• Supported Devices: Hard drive, disk array (RAID), solid state drive
• Channel Qty: 4
• Max Storage Devices Qty: 240
• RAID Level: RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, JBOD, RAID 60
• Processor: LSISAS3108 1.2 GHz

Expansion / Connectivity:

Interfaces: 1 x SAS 12Gb/s - 4 x Mini SAS HD (SFF-8643) (internal) ¦ 1 x SAS 12Gb/s - 36 pin 4x Mini SAS HD (SFF-8644) (external)

Miscellaneous:

• Included Accessories: Low-profile bracket
• Features: Load Balancing, DDF compliant Configuration on Disk (COD), Online Capacity Expansion (OCE), Online RAID Level Migration (RLM), SCSI Enclosure Services (SES), CacheVault flash cache protection, automatic disk rebuild, S.M.A.R.T. support, UEFI support, SSD Guard technology, consistency check, Patrol Read
• MTBF: 1,230,142 hours
• Compliant Standards: FCC Class B certified, FCC Class A certified, VCCI, C-Tick, BSMI, EN 60950, EN 61000-3-2, EN55022, RRL, UL 1950, EN 61000-3-3, EN55024, CSA C22.2

Software / System Requirements:

• Software Included: MegaRAID Storage Manager, LSI StorCLI, HII (UEFI Human Interface Infrastructure)
• OS Required: FreeBSD, Red Hat Linux, SuSe Linux, Microsoft Windows, Debian Linux, CentOS, Oracle Solaris, VMware ESX, Oracle Linux, Canonical Ubuntu, Linux Fedora

Manufacturer Warranty:

• Service & Support: Limited warranty - 3 years

Dimensions & Weight:

• Depth: 6.6 in
• Height: 2.5 in

Environmental Parameters:

• Max Operating Temperature: 131 °F
