PH3 Desktop Rear 4-Way Hard Disk Control Board Optical Drive Power Control Switch SATA Power Expansion Card

PH3 Desktop Rear 4-way Hard Disk Control Board Optical Drive Power Control Switch SATA Power Expansion CardModel No.: PH3
Name: Hard

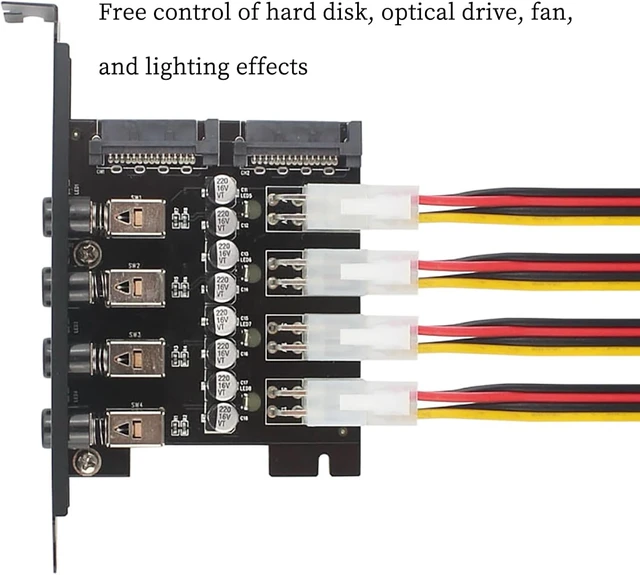

Control 3 Usage: For multi-hard disk control, multi-system switching, optical drives, fans, RGB lighting effects, etc., the host within the power equipment control and management.

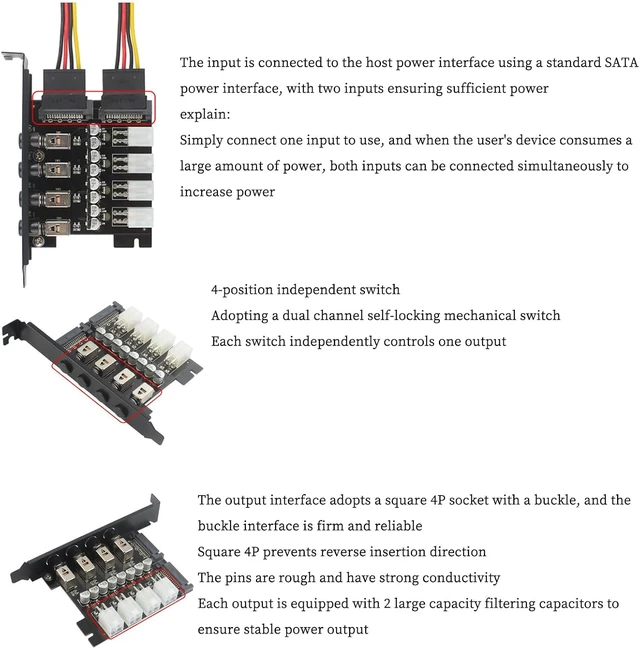

Features: chassis rear, hidden and safe, convenient and beautifulInput to the host computer power supply interface using standard SATA power supply interface 2 inputs to ensure sufficient power

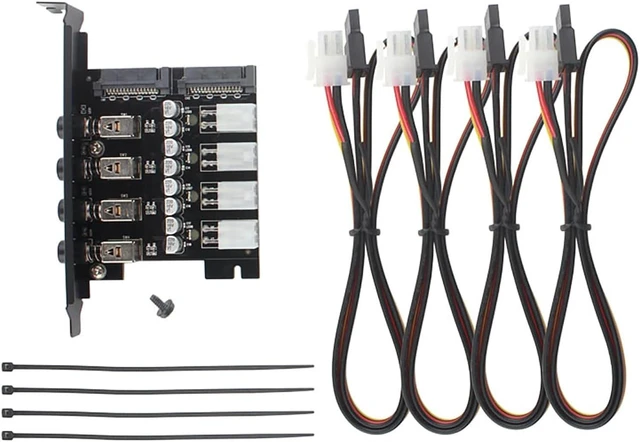

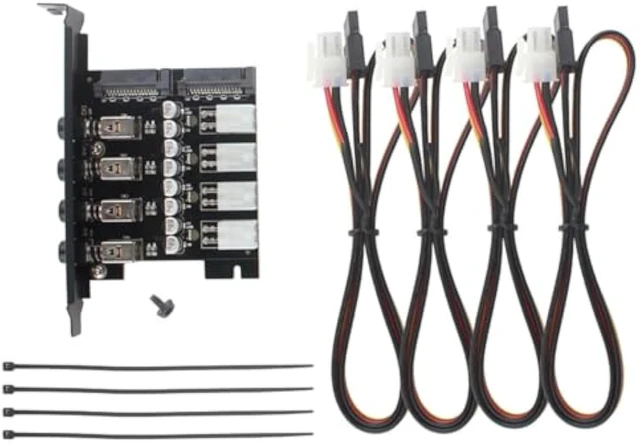

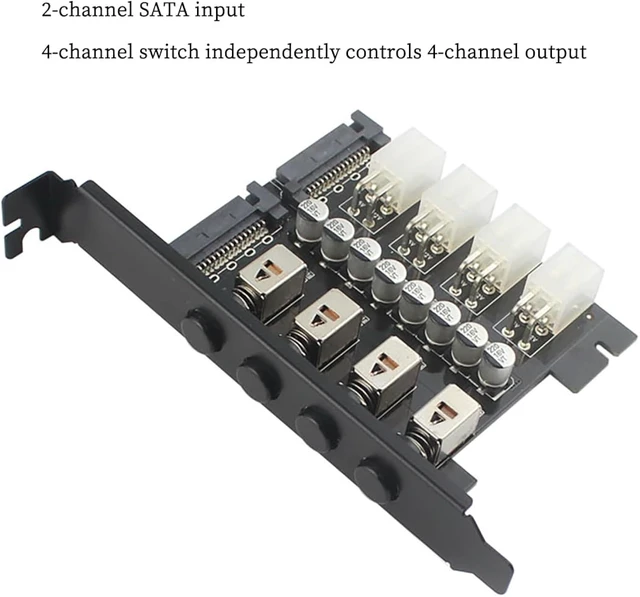

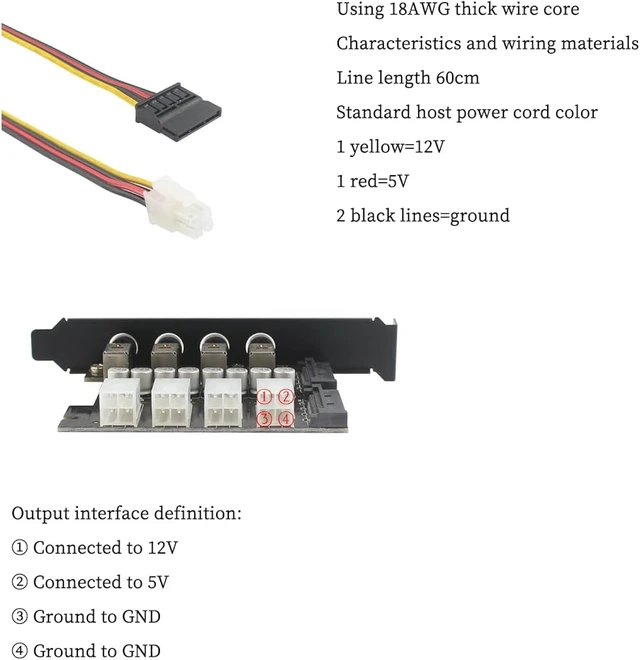

Description: connect one input can be, when the user's equipment consumes a lot of power can be connected to both inputs at the same time in order to increase power4-position independent switch adopts dual-channel self-locking mechanical switch Each switch controls one output independently. Output interface adopts square 4P socket with snap-insnap-in interface is firm and reliable square 4P to prevent insertion in the opposite direction, the pin is rugged and conductive strong each one way output with 2, high-capacity filter capacitors to ensure power output stabilityBacklit digital number LED design When the switch is pressed on, the corresponding LED illuminates the number The status can be observed from the side. Convex edge mounting design to increase stability Can be installed in the position of PCI or PCI-E slot, play a role in positioning Refuse to rock! Complete accessories, ready to use 4 square 4P to SATA output cables 4 cable strip18AWG thicker core Special parallel cable, cable length 60cm Standard host power cable color 1 yellow = 12V 1 red = 5V 2 black = groundOutput connector definition. 1. Upper left corner, connected to 12V2. Upper right corner, connected to 5V3.

Lower left corner, connect to GND ground4. Lower right corner, connect to GND ground
