6 Gauge Battery Quick Connect Disconnect Kit 50A Wire Connector for Winch Auto Car Trailer Driver, Black 2pcs
- Terminal Pins Inner Diameter: 0.22", Fits 6 Gauge wire; Capacity: 50 Amps
- Made of sturdy polycarbonate, this connector set allows for quick connect/disconnect of power from winches, trailers or other electrical devices
- Housing can all connect to each other as long as they are same size and color, provides simplified assembly and minimize the quantity of components
- The terminal pin is made by copper plating with silver to ensure a strong electrical conductivity and a stable current and voltage
- Stainless steel springs create a robust force between the contacts that holds the connector in the mated position
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Description:
-Multipurpose & Universal battery quick connector set for any purpose requiring a high-current, quick-disconnect connector.
-This quick connector set gives the user a simple, convenient way to connect and disconnect power to winches and other electrical devices.
-Provides simple and convenient method for connect/disconnect power to a winch or other electrical device such as remote battery chargers, power inverters, solar setups or trailers.
-The connector ends are identical so that the user may connect either end to the power or load side.

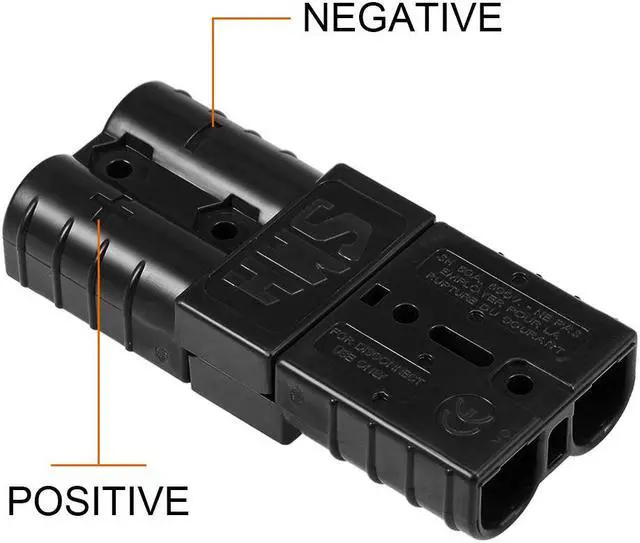

-The ends are made to connect only one way, making it impossible to connect the wrong polarities to one another.

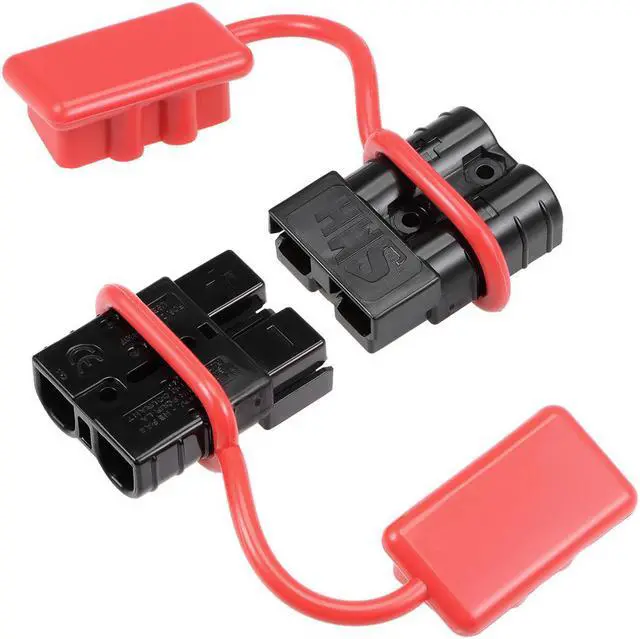

-The bottom of the devise features a fitted rubber boot to protect against dust, moisture and corrosion
-Featured with 0.22" inner diameter, the terminal pins accept wire from 6 gauge.
KEY_TAB
Specification:
Rated Current: 50A
Rated Voltage: 600V
Fit Wire Size: 6 AWG (13.3mm2)
Operating Temperature Range:-4°F-257°F / -20°C-125°C
Withstanding Voltage: 2200V DC
Flammability Rating: UL94 V0
KEY_TAB

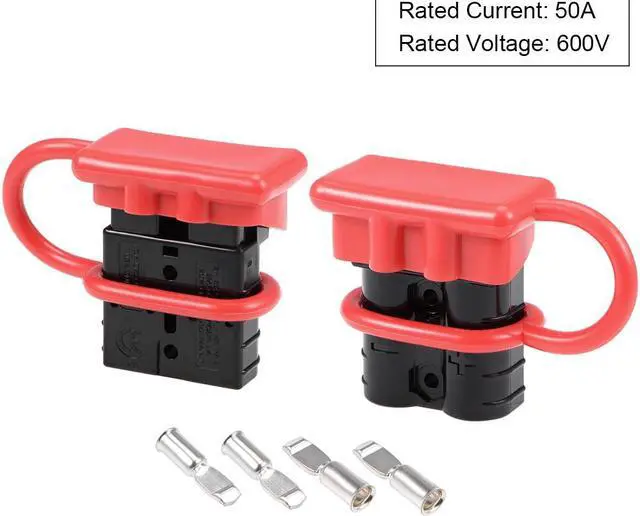

Package Include:
2 x Connect House
4 x Terminal Pin
2 x Rubber Boot Caps
KEY_TAB
How to Install:
1.Insert the wires into the terminal pins, then weld or crimp them.
2.Insert the terminal pins into the connector housing and lock them in place.
