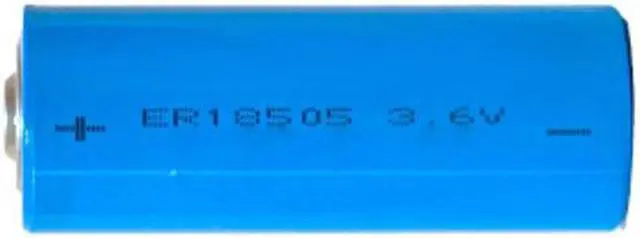

3.6 Volt ER18505 Primary Lithium Battery (3600 mAh)
- 3.6 Volt ER18505 Primary Lithium Battery (3600 mAh)
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Chemistry: Lithium Thionyl Chloride (Li-SOCl2)
Nominal Capacity: 3600 mAh
Open Circuit Voltage: 3.66 Volt (at +20C +68F)
Nominal Voltage: 3.6 Volt (at 1mA +20C +68F)
Storage Temperature: +30C +86 F max (recommended)
Brand: Power Portable
Operating Temperature: -55C / +85C
Diameter (max): 18.5 mm ( 0.72" )
Height (max): 50.5 mm (2")
Typical Weight: 28g ( 0.98 oz)
Backup power for circuit board
General purpose; camera/electronic cells
Medical equipment; military/aerospace
Telecommunications; water/electricity meter
LED lighting applications
This battery is not rechargeable. Do not try to recharge.
The storage area should be clean, cool (not exceeding +30 Deg C ), dry and ventilated
Please discharge the battery few minutes with 100mA, if the battery voltage is lower than your need or consult ABLE.
Don't use different models of battery in series.
Soldering the tab should be finished in few seconds.
Do not use if the battery casing was mangled
Nominal Capacity: 3600 mAh
Open Circuit Voltage: 3.66 Volt (at +20C +68F)
Nominal Voltage: 3.6 Volt (at 1mA +20C +68F)
Storage Temperature: +30C +86 F max (recommended)
Brand: Power Portable
Operating Temperature: -55C / +85C
Diameter (max): 18.5 mm ( 0.72" )
Height (max): 50.5 mm (2")
Typical Weight: 28g ( 0.98 oz)
Backup power for circuit board
General purpose; camera/electronic cells
Medical equipment; military/aerospace
Telecommunications; water/electricity meter
LED lighting applications
This battery is not rechargeable. Do not try to recharge.
The storage area should be clean, cool (not exceeding +30 Deg C ), dry and ventilated
Please discharge the battery few minutes with 100mA, if the battery voltage is lower than your need or consult ABLE.
Don't use different models of battery in series.
Soldering the tab should be finished in few seconds.
Do not use if the battery casing was mangled
