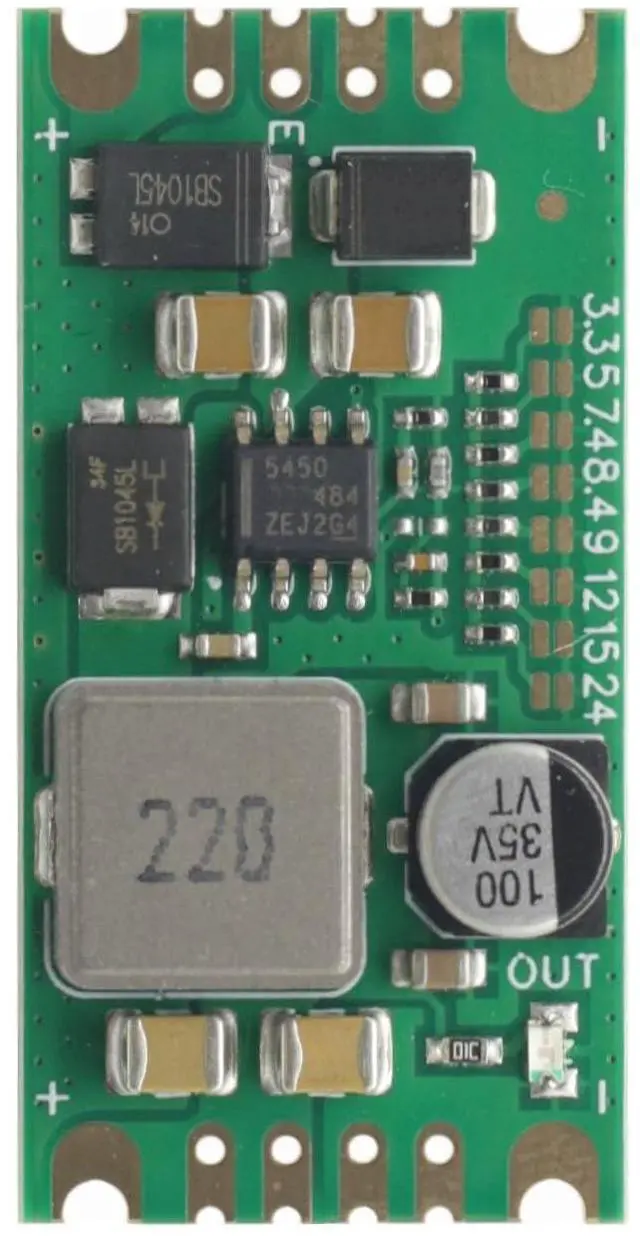

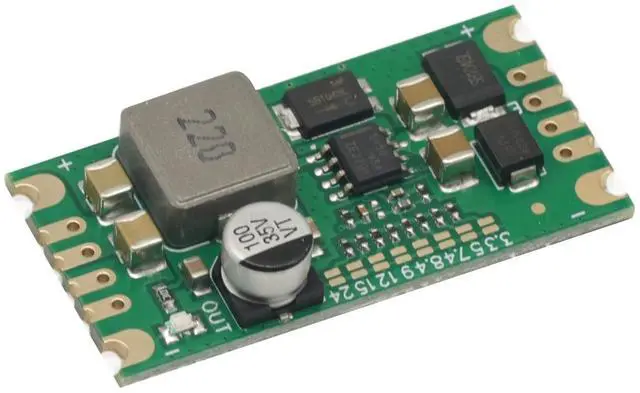

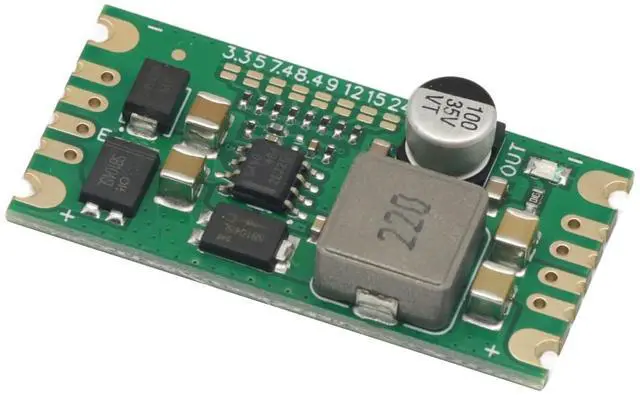

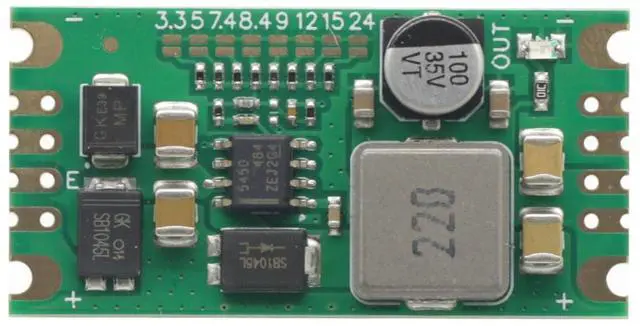

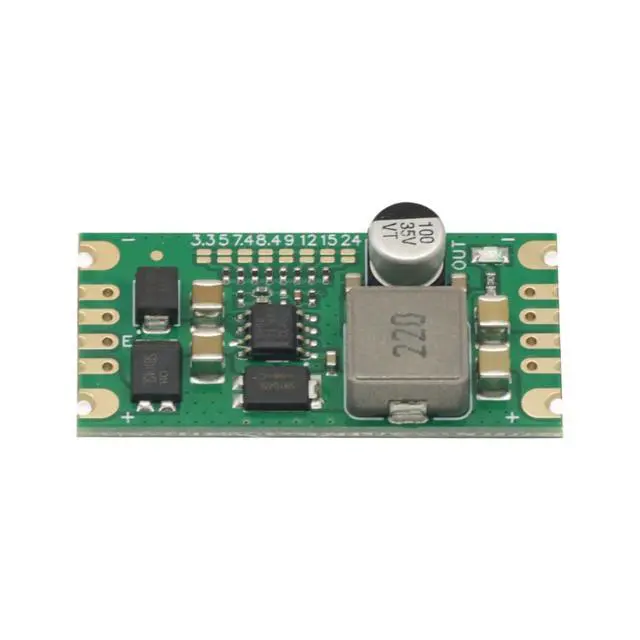

TPS5450 DC-DC Step Down Buck Converter, 5.5-36V Input to 3.3V 5V 7.4V 8.4V 9V 12V 15V 24V Output, 5A Max Low Ripple High Efficiency Power Supply Module
- Input Voltage Range:DC 5.5-36V; Output Voltage 3.3V,5V,7.4V,8.4V,9V,12V,15V,24V,default, there is no connection; default, there is no connection; you need to set the output voltage.; Maximum Output Current:5A; Supports For MCU Control Enable; 1PCS TPS5450 DC-DC Step Down Buck Converter, 5.5-36V Input to 3.3V 5V 7.4V 8.4V 9V 12V 15V 24V Output, 5A Max Low Ripple High Efficiency Power Supply Module
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Product description TPS5450 DC-DC Step Down Buck Converter, 5.5 -36V Input to 3.3V 5V 7.4V 8.4V 9V 12V 15V 24V Output, 5A Max Low

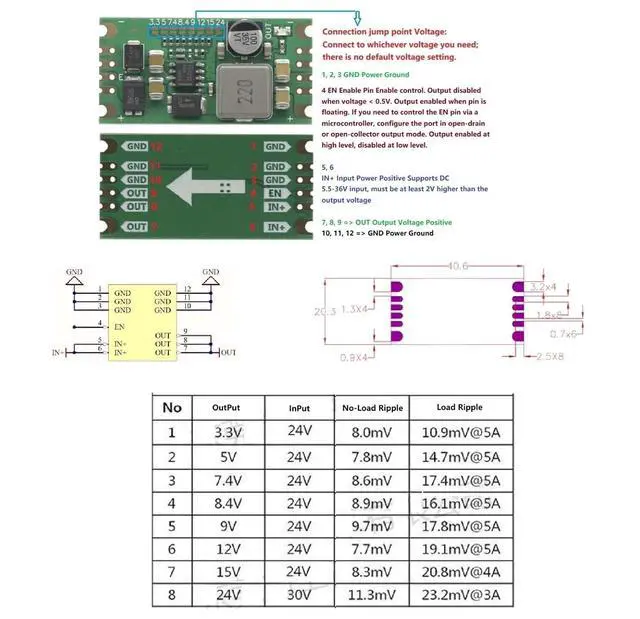

Ripple Input Voltage Range: DC 5.5 -36V Operating Frequency 500KHz Output Voltage 3.3V, 5V, 7.4V, 8.4V, 9V, 12V, 15V, 24V, default, there is no connection; you will need to set it up yourself.
Maximum Output Current: 5A Supports For MCU Control Enable
Ripple Input Voltage Range: DC 5.5 -36V Operating Frequency 500KHz Output Voltage 3.3V, 5V, 7.4V, 8.4V, 9V, 12V, 15V, 24V, default, there is no connection; you will need to set it up yourself.
Maximum Output Current: 5A Supports For MCU Control Enable
