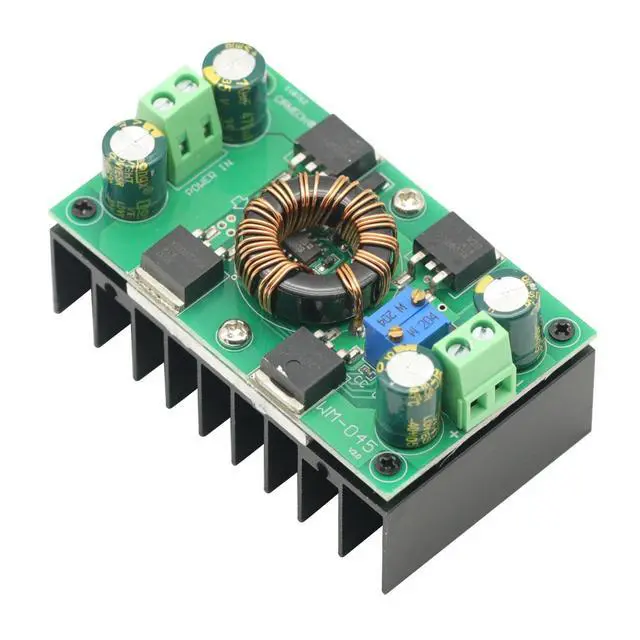

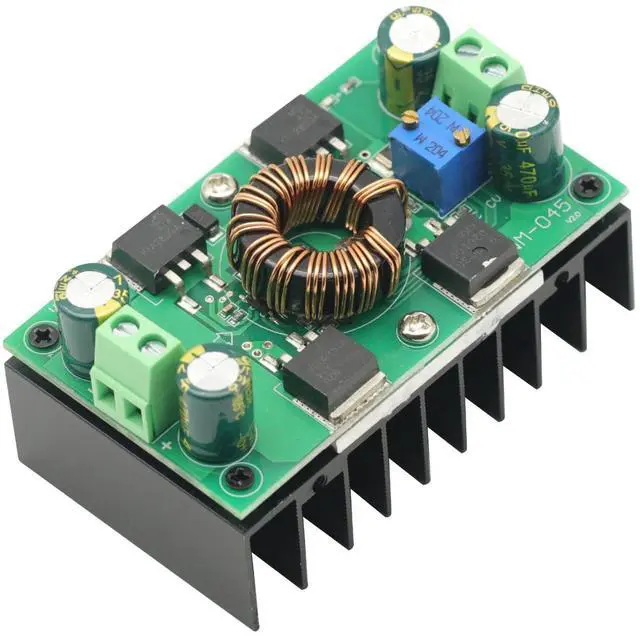

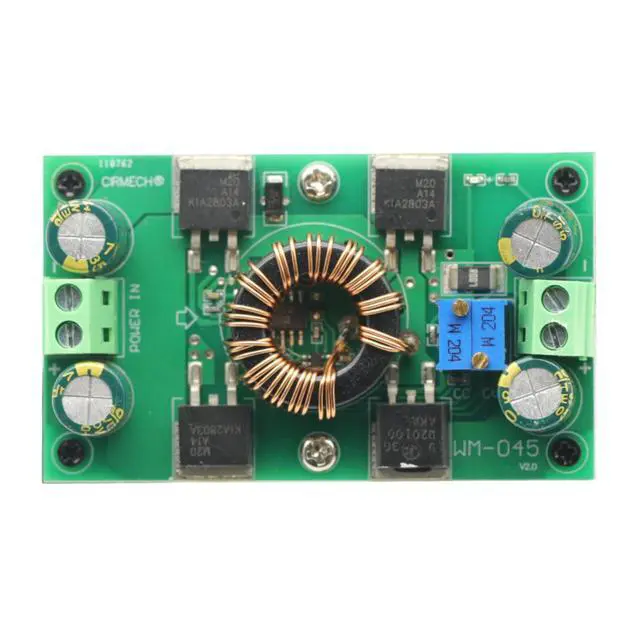

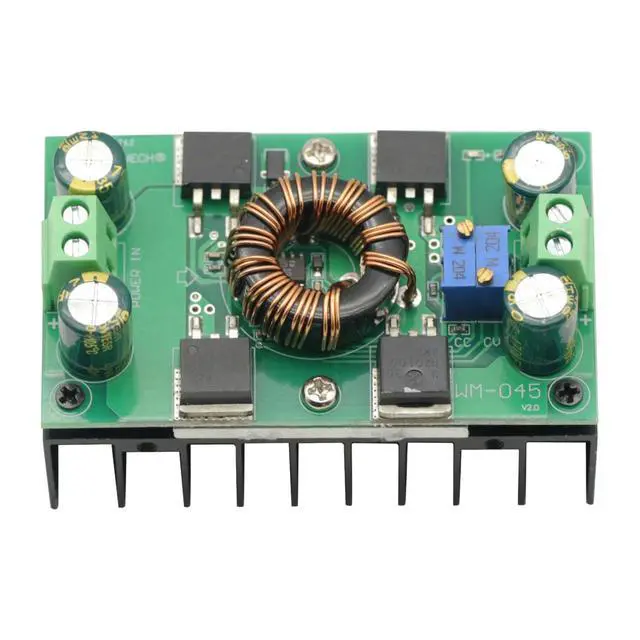

300W DC-DC Max 10A Automatic Step Up Step Down Boost Buck Converter 5V-30V to 1.25-30V Power Supply Module Voltage Regulator
- Working frequency: 150KHz; Input voltage: DC 5V-30V Output voltage: DC 1.25V-30V; Protection function: short circuit, over current and over temperature; on-isolated Synchronous Rectification Constant Voltage Constant Current Automatic Buck-Boost Module
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Product description 300W DC-DC Max 10A Automatic Step Up Step Down Boost Buck Converter 5V-30V to 1.25 -30V Power Supply Module
Voltage Regulator Features:
1. Used in voltage stabilization occasions, as long as the input voltage range is within the voltage range of the voltage stabilization module, the output can be kept constant.
2. The voltage of the solar panel is stable. The voltage fluctuation of the solar panel is relatively large. This module can be used to supply power to the equipment or charge the battery.
3. Modular fast input and output voltage allowable range is relatively large, the output is relatively stable, it is widely used in many fields: constant voltage and constant current adjustable, safe and reliable.
4. This buck-boost module uses a large heat sink to ensure heat dissipation; four high-power tubes, three-wire and three-wire inductance with sendust, not easy to saturate, and further reduce heating loss, thicker 1.6 circuit board, increase To improve stability, high-frequency low-impedance capacitors are used for input and output, which greatly reduces output ripple.
Specification:
Name: Non-isolated Synchronous Rectification Constant Voltage Constant Current Automatic Buck-Boost Module Size: about 76*45* 43.3 mm
Net weight: about 92g
Working frequency: 150KHz
Input voltage: DC 5V-30V
Output voltage: DC 1.25V -30V
Output power: 150W maximum 300W
Output current: recommended 5A maximum 8A
Conversion efficiency: comprehensive not less than 80%
Protection function: short circuit, over current and over temperature
Notice:
1. There may be deviations in size measurement, please refer to the actual product.
2. The output efficiency depends on the step-up and step-down working methods and the pressure difference, please pay attention.
3. Pay attention to monitor the heat generation during work to improve stability, and use auxiliary heat dissipation if necessary.
4. The output current is generally recommended to be used in 5A occasions. If a larger output current is required, two modules can be used in parallel.
Packing list: 1*buck-boost module See More
Voltage Regulator Features:
1. Used in voltage stabilization occasions, as long as the input voltage range is within the voltage range of the voltage stabilization module, the output can be kept constant.
2. The voltage of the solar panel is stable. The voltage fluctuation of the solar panel is relatively large. This module can be used to supply power to the equipment or charge the battery.
3. Modular fast input and output voltage allowable range is relatively large, the output is relatively stable, it is widely used in many fields: constant voltage and constant current adjustable, safe and reliable.
4. This buck-boost module uses a large heat sink to ensure heat dissipation; four high-power tubes, three-wire and three-wire inductance with sendust, not easy to saturate, and further reduce heating loss, thicker 1.6 circuit board, increase To improve stability, high-frequency low-impedance capacitors are used for input and output, which greatly reduces output ripple.
Specification:
Name: Non-isolated Synchronous Rectification Constant Voltage Constant Current Automatic Buck-Boost Module Size: about 76*45* 43.3 mm
Net weight: about 92g
Working frequency: 150KHz
Input voltage: DC 5V-30V
Output voltage: DC 1.25V -30V
Output power: 150W maximum 300W
Output current: recommended 5A maximum 8A
Conversion efficiency: comprehensive not less than 80%
Protection function: short circuit, over current and over temperature
Notice:
1. There may be deviations in size measurement, please refer to the actual product.
2. The output efficiency depends on the step-up and step-down working methods and the pressure difference, please pay attention.
3. Pay attention to monitor the heat generation during work to improve stability, and use auxiliary heat dissipation if necessary.
4. The output current is generally recommended to be used in 5A occasions. If a larger output current is required, two modules can be used in parallel.
Packing list: 1*buck-boost module See More
