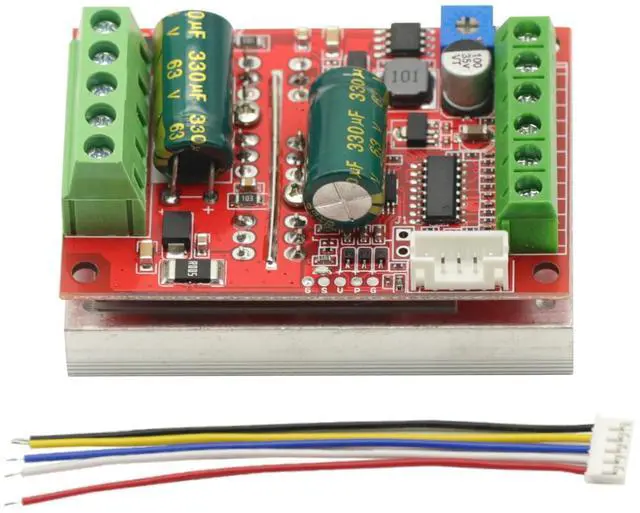

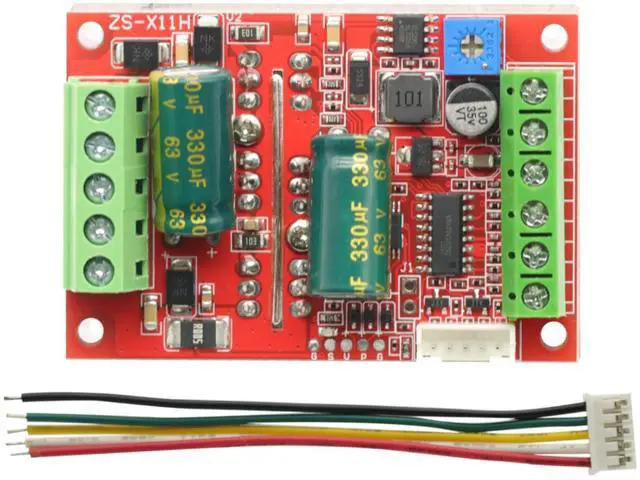

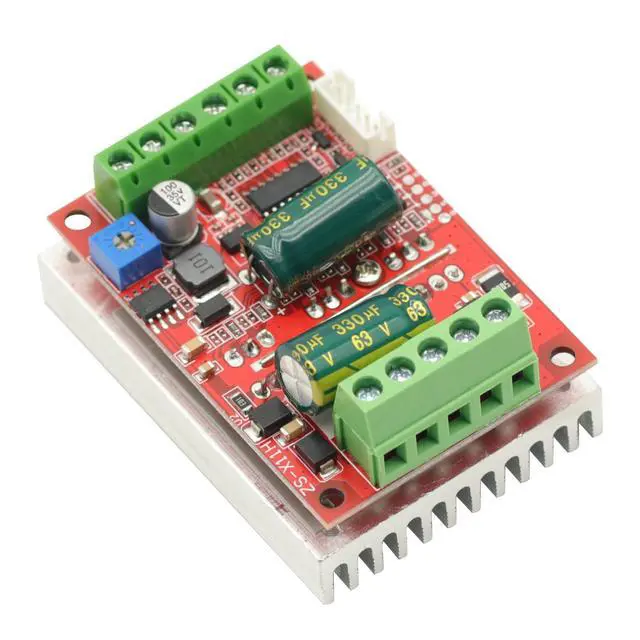

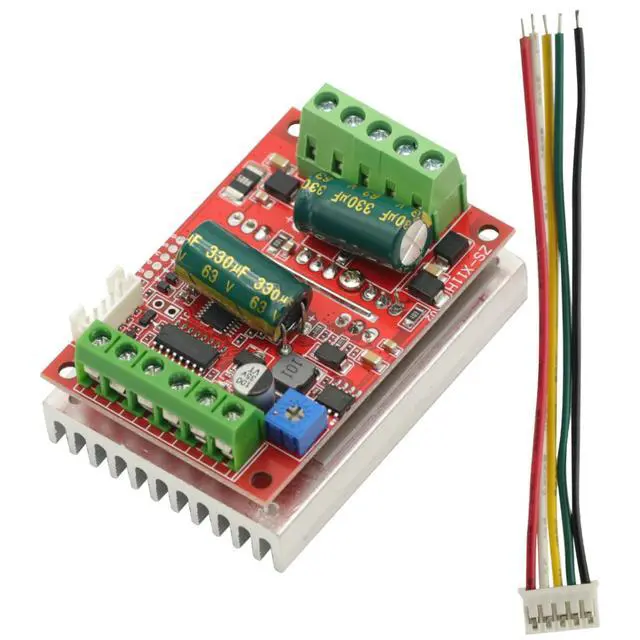

DC 6-60V 400W 3 Phases Hall Brushless Motor Controller Board BLDC PWM PLC Driver Module with Forward/Reverse/Brake Function
- MA MB MC phase line output connection motor; Ha Hb Hc +5V GND Hall signal Power input, generally with Hall's motor has five corresponding lines Full patch process Stable performance with positive/reverse function; positive and negative reversing control interface (also can be connected to the external switch) VR speed control signal input (onboard with potentiometer speed control can also be connected to 0-5V analog simulation PWM duty cycle to support dual signal input speed regulation); VCC GND motor main power supply (external DC power supply) SC speed pulse signal output; 5V GND motherboard comes with 5V power supply (current does not exceed 30MA)
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Product description DC 6-60V 400W 3 Phases Hall Brushless Motor Controller Board BLDC PWM PLC Driver Module with Forward/Reverse/Brake Function Stable performance after upgrading with forward and reverse rotation, stopping and braking function.
Note: This driver is a DC three-phase brushless control board, which requires the motor to have Hall to work properly. This driver is only suitable for DC brushless motors with Hall at an electrical angle of 120 degrees. Newly upgraded BLDC wide voltage 6-60V high power 400W DC three-phase brushless hall controller, support for PLC 0-5V touch volume control support PWM control amplitude 2.5 -5V. Humanized design, the interface using the terminal standard heat sink board integrated speed potentiometer to the hands of the power can be used to save time and effort!
Main board specifications parameters: Product
name: 400W brushless DC motor driver with
Hall Operating voltage: 6 to 60V
Maximum current: rated 16A peak 20A
Maximum power: 400W
Overcurrent protection: Yes
Product size: L63MM*W45MM*H31MM See More
Note: This driver is a DC three-phase brushless control board, which requires the motor to have Hall to work properly. This driver is only suitable for DC brushless motors with Hall at an electrical angle of 120 degrees. Newly upgraded BLDC wide voltage 6-60V high power 400W DC three-phase brushless hall controller, support for PLC 0-5V touch volume control support PWM control amplitude 2.5 -5V. Humanized design, the interface using the terminal standard heat sink board integrated speed potentiometer to the hands of the power can be used to save time and effort!
Main board specifications parameters: Product
name: 400W brushless DC motor driver with
Hall Operating voltage: 6 to 60V
Maximum current: rated 16A peak 20A
Maximum power: 400W
Overcurrent protection: Yes
Product size: L63MM*W45MM*H31MM See More
