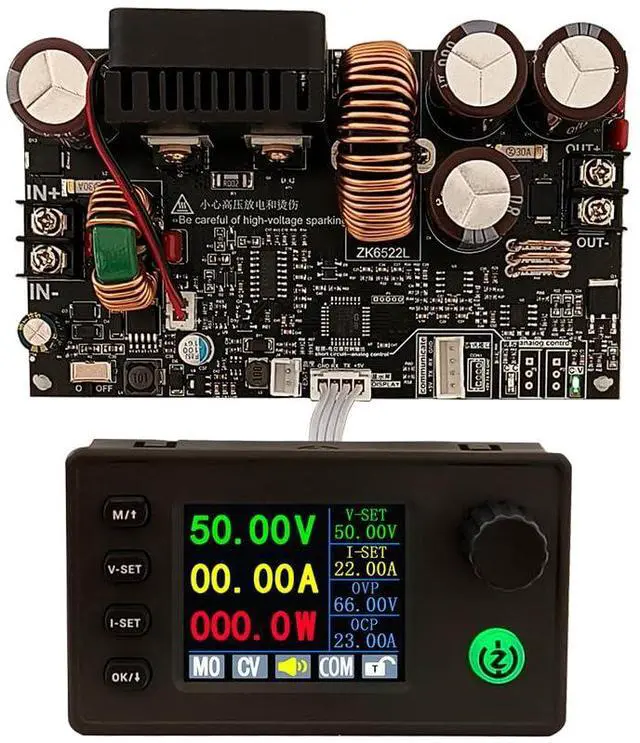

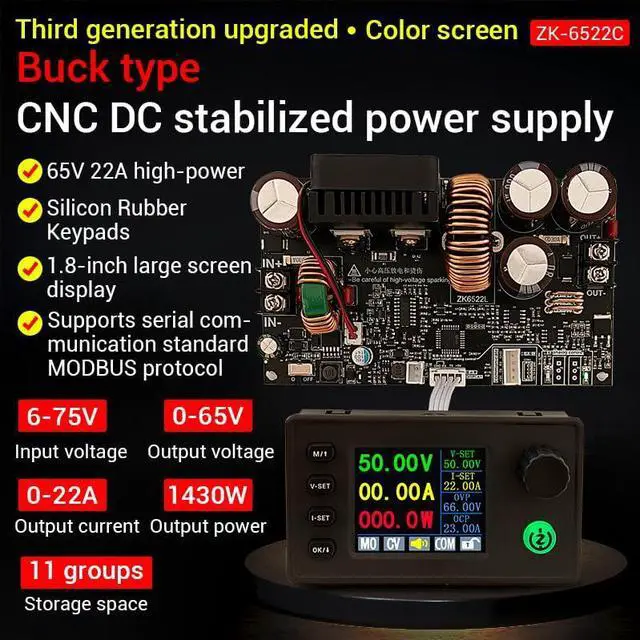

22A 1400W DC 6-75V Stabilized Voltage Power Supply Step-Down Module CNC Adjustable Voltage Regulators

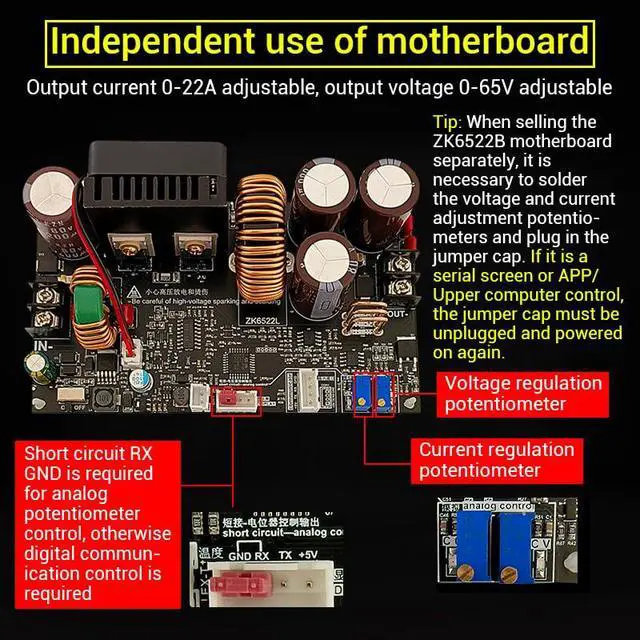

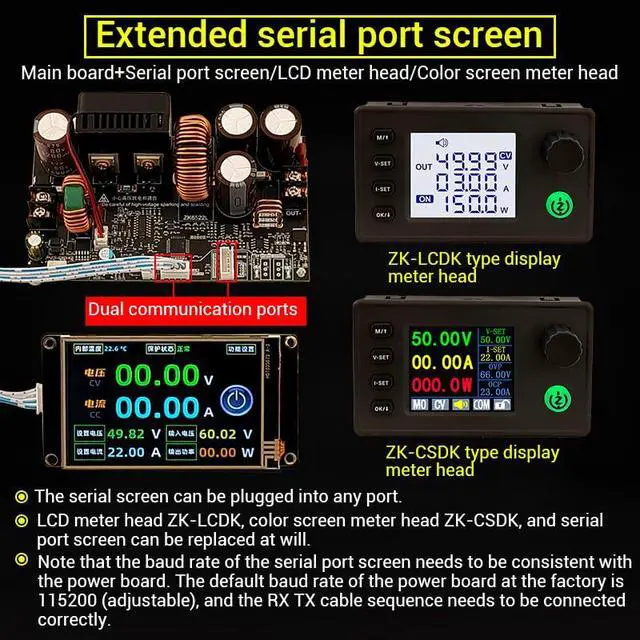

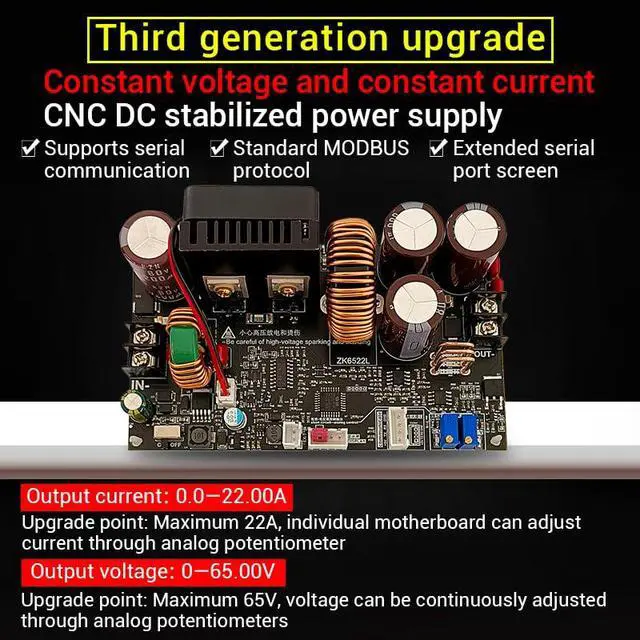

Product description 1. LCD display board sinking gold process, put an end to oxidized poor contact, put an end to long-time use of incomplete display 2. Independent silicone key to set the voltage or current, a key to enter, a key to exit, fast and concise, refuse to cumbersome 3.1. 8 inch large color screen display content is more rich and intuitive, the operation of the setup is more simple 4. Individual motherboard use flexible, support current stepless adjustment, voltage stepless adjustment 5. PCB immersion gold process, to prevent key failure after long-term use, to protect the circuit board pad is not oxidized, improve PCB conductivity, reduce line impedance and contact resistance
Parameter: Input
voltage: 6.0 - 75.00V
Output current: 0-22A
Output power: 0-1430W
Output Voltage: 0.0 - 65.00V
Output voltage accuracy: ± 0.3 %+3 words (calibratable)
Output current accuracy: ± 0.5 %+3 words (calibratable)
Current resolution: 0.01A
Voltage resolution: 0.01V
Data set storage: 11 sets
Screen size: 1.8 -inch upgraded large screen 36 * 29mm viewing range
Cooling fan on conditions: temperature > 45 ° C or current > 2A or power > 30W
Silicon buttons: 5
Buzzer: Yes
Protection mechanism: Input
undervoltage protection (LUP): 5.5 -64V adjustable, factory default 5.5V
Output overvoltage protection (OUP): 1-66V adjustable, factory default 66V
Output overcurrent protection (OCP): 0.01 -23A adjustable, factory default 23A
Output over power protection (OPP): 1-1450W adjustable, factory default 1450W Over
Temperature Protection (OTP): 30-99 adjustable, factory default
60.
Overtime protection (OHP): 1 minute-99 hours 59 minutes, factory default off
Over capacity protection (OAH): 0.001 -9999Ah, factory default off
Over-energy protection (OPH): 0.001 -4000KWh, factory default off
1. No AC input, not to mention the 220V utility
2. Input voltage up to 75V, can not be over-voltage input or reverse positive and negative poles
3. The output can not be completely guaranteed to prevent backflow, connect the battery to ensure that the output voltage of the power supply module is always higher than the battery voltage, or in the output anode series diode single conduction, to prevent the battery voltage backflow burned power supply
4. When connecting the battery to the output terminal, please pay attention to the positive and negative poles not to be connected to the opposite side.
5. The product is a step-down module, the maximum output voltage = input voltage * 0.95 -1V See More
