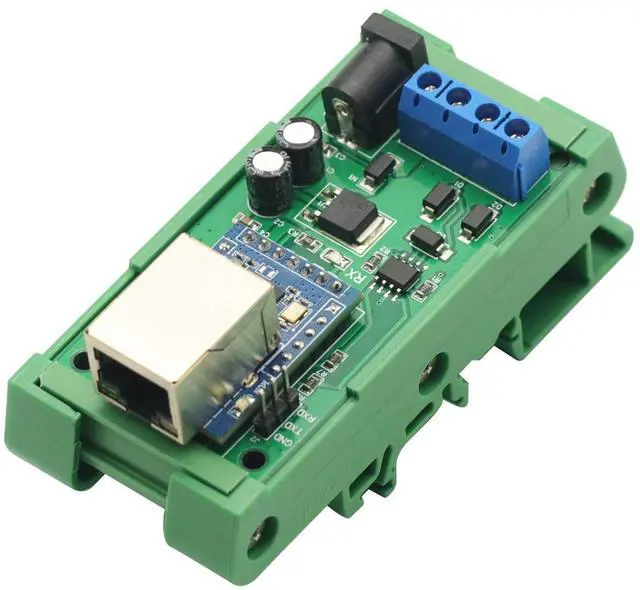

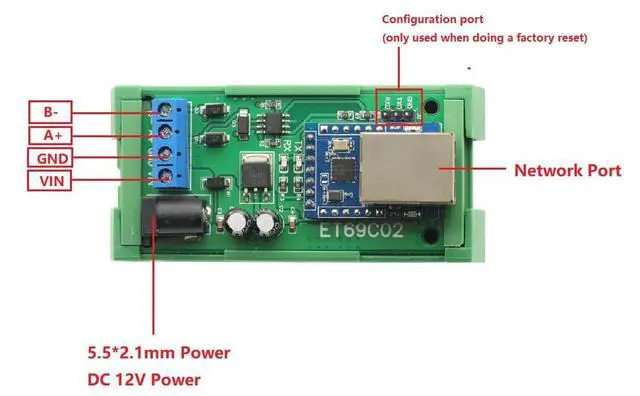

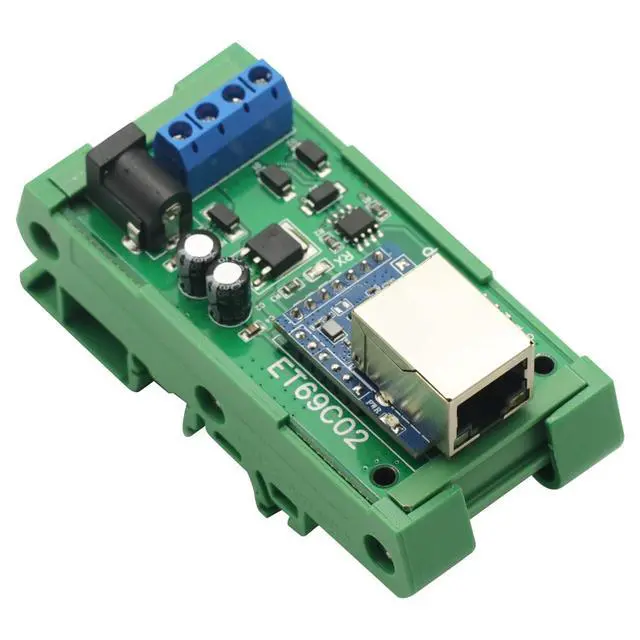

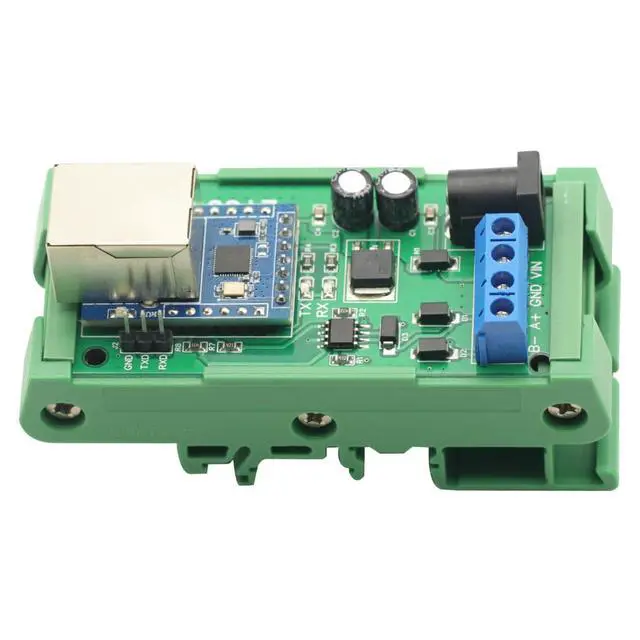

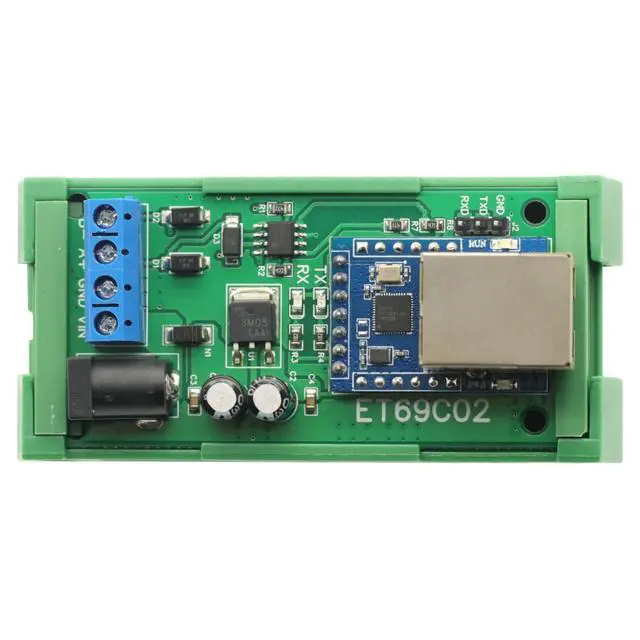

RS485 to Ethernet TCP/IP Converter for MQTT Modbus RTU Module with Rail Box
- The default baud rate is 9600BPS. Baud rate can be selected through WEB settings 1200 2400 4800 9600 19200 38400 57600 115200BPS; TVS anti-surge protection; Working voltage: DC 12V (DC 6.5-25V) Working current: 20-25mA Working mode: UDP, TCP Client, TCP Server, For Modbus Slave, For Modbus Master, MQTT; Installation method: DIN35 and C45 rails; Ethernet to RS485 Bus
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Product description RS485 to Ethernet TCP/IP Converter for MQTT Modbus RTU Module with
Rail Box Description: Working
voltage: DC 12V (DC 6.5 -25V)
Working current: 20-25mA
Working mode: UDP, TCP Client, TCP Server, For Modbus Slave, For Modbus Master, MQTT TVS anti-surge protection The default baud rate is 9600BPS. Baud rate can be selected through WEB settings 1200 2400 4800 9600 19200 38400 57600 115200BPS Parity can be no parity, even parity and odd parity
Size: 72*37*24mm (PCB board only); 82*41*40mm (with DIN rail box)
Weight: 24g (PCB board only); 58g (with DIN rail box) Application Ethernet to RS485 Bus Smart Home, Home Automation, Wiser Home; Security Monitoring recognition system; IP camera LED light driver Automatic Curtain Control DIN rail
Box parameters: Item
model number: UM72
Color: green
Width: suitable for PCB board width UM72 (72mm)
Insulation grade: flame retardant VO grade
Backboard length: suitable for 37mm PCB board
Net weight: 34g
Installation method: DIN35 and C45 rails
Package Include: 1*RS485 to Ethernet TCP/IP Converter Module
Rail Box Description: Working
voltage: DC 12V (DC 6.5 -25V)
Working current: 20-25mA
Working mode: UDP, TCP Client, TCP Server, For Modbus Slave, For Modbus Master, MQTT TVS anti-surge protection The default baud rate is 9600BPS. Baud rate can be selected through WEB settings 1200 2400 4800 9600 19200 38400 57600 115200BPS Parity can be no parity, even parity and odd parity
Size: 72*37*24mm (PCB board only); 82*41*40mm (with DIN rail box)
Weight: 24g (PCB board only); 58g (with DIN rail box) Application Ethernet to RS485 Bus Smart Home, Home Automation, Wiser Home; Security Monitoring recognition system; IP camera LED light driver Automatic Curtain Control DIN rail
Box parameters: Item
model number: UM72
Color: green
Width: suitable for PCB board width UM72 (72mm)
Insulation grade: flame retardant VO grade
Backboard length: suitable for 37mm PCB board
Net weight: 34g
Installation method: DIN35 and C45 rails
Package Include: 1*RS485 to Ethernet TCP/IP Converter Module
