90W DC DC Buck Boost Converter CNC Regulated Power Supply Module Adjustable Boost/Buck with Protection Constant Voltage Constant Current Controller

Product description

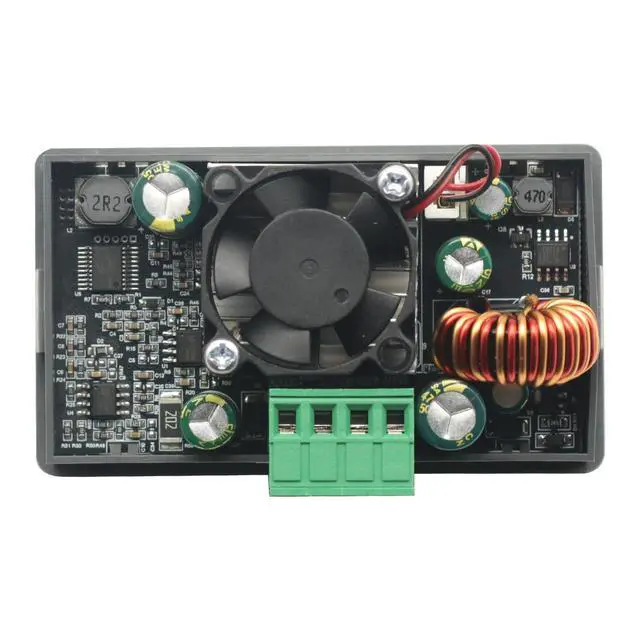

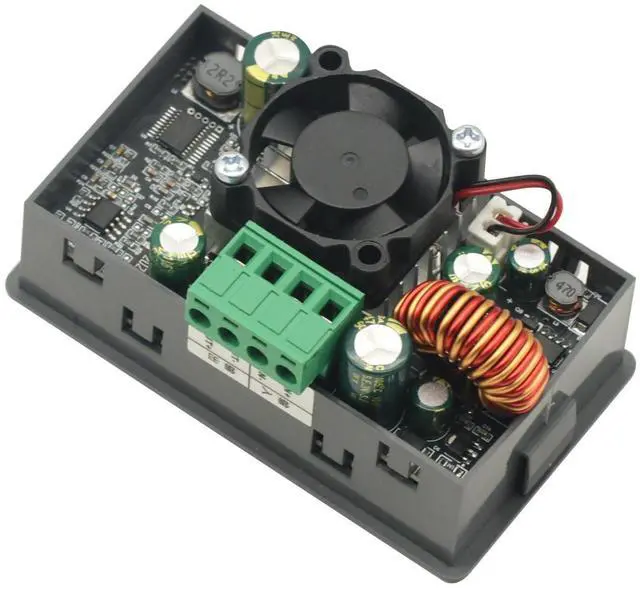

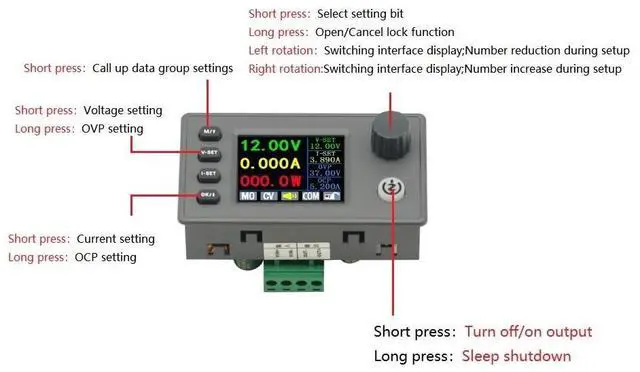

Features: 1. PCB immersion gold process to prevent the key from malfunctioning after long-term use, protect the circuit board pad from oxidation, improve PCB conductivity, reduce line impedance and contact resistance 2. Independent silicone keys to set the voltage or current, a key to enter, a key to exit, fast and simple, refuse to cumbersome 3.1. 8-inch large color screen display content is more rich and intuitive, the operation of the setup is more simple 4. Performance and power upgrades, including external fan port to expand the fan
5. Silicone button material is soft, comfortable touch, feel great. Compared with mechanical buttons can withstand prolonged use and frequent pressure, without wear and tear or failure, more durable, longer service life.
Input voltage: 6-36V
Output current: 0-5A
Output power: 90W
Output voltage: 0.5 -36V
Output voltage accuracy: ± 0.3 %+3 words (calibratable)
Output current accuracy: ± 0.5 %+3 words (calibratable)
Current resolution: 0.001A
Voltage resolution: 0.01V
Data set storage: 11 sets

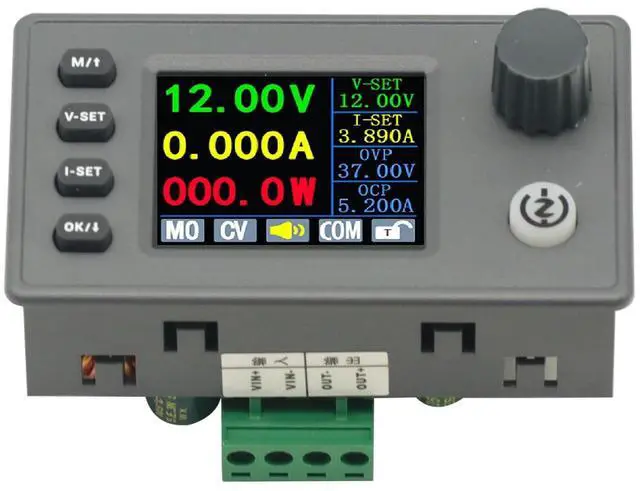

Screen size: 1.8 inch upgraded large screen 36 * 29mm visual range
Silicone buttons: 5
Buzzer: Yes
Soft start: Yes
Conversion efficiency: 88% or so
Protection mechanism: Input
anti-reverse connection: Yes
Output anti-reverse: Yes
Input undervoltage protection (LVP): 5.5 -35V adjustable, factory default 5.5V
Output overvoltage protection (OVP): 0.5 -37V adjustable, factory default 37V
Output overcurrent protection (OCP): 0.001 - 5.2A adjustable, factory default 5.2A
Output over power protection (OPP): 0.01 -91W adjustable, factory default 91W Over
Temperature Protection (OTP): 30-99 adjustable, factory default
60.
Overtime protection (OHP): 1 minute-99 hours 59 minutes, factory default off
Over capacity protection (OAH): 0.001 -9999Ah, factory default off
Over-energy protection (OWH): 0.001 -4000KWh, factory default off See More
