Strain Gauge Bending Detection Test Sensor Module Flex Sensor Weigh Amplifier Voltage Output

Product description Strain Gauge Bending Detection Test Sensor Module Flex Sensor Weigh Amplifier Voltage Output
1.
The device profile Model: BF350-3 AA / 1.5
AA Sensitive factor: 2.0
Strain limit: 2%
Gate: length x width 2 x3.
5 mm Basal size: length x width 5 x4.
5 mm Base material: modified phenolic base.
Grid wire materials: lala
Value: 350 ohms
The fatigue life: > 10000000 times
Flux: the ordinary solder flux The working principle of resistance strain gauge is made based on strain effect, namely the conductor or semiconductor materials in mechanical deformation under the action of external force, the resistance value of the corresponding change, this phenomenon is called "strain effect". Will be the determination of strain gauge on the content, make its bending together as by to determine strain, so the inside of the metal foil as the bending strain. A lot of metal in the machinery with the change of the resistance to bending. 2.

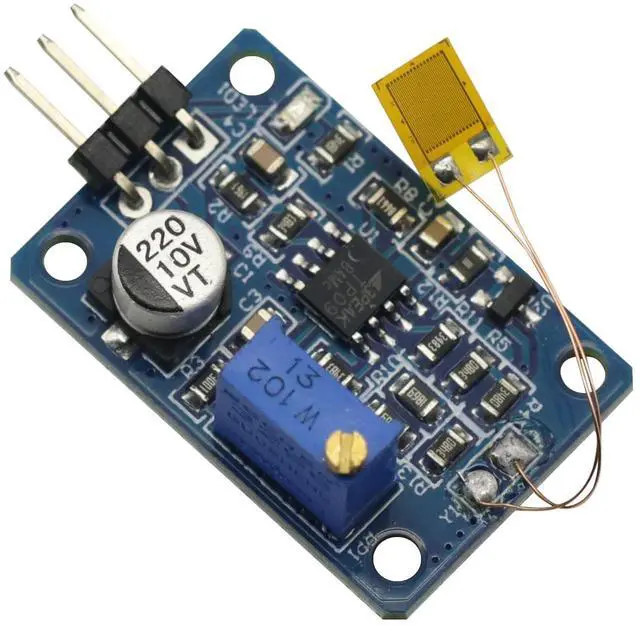

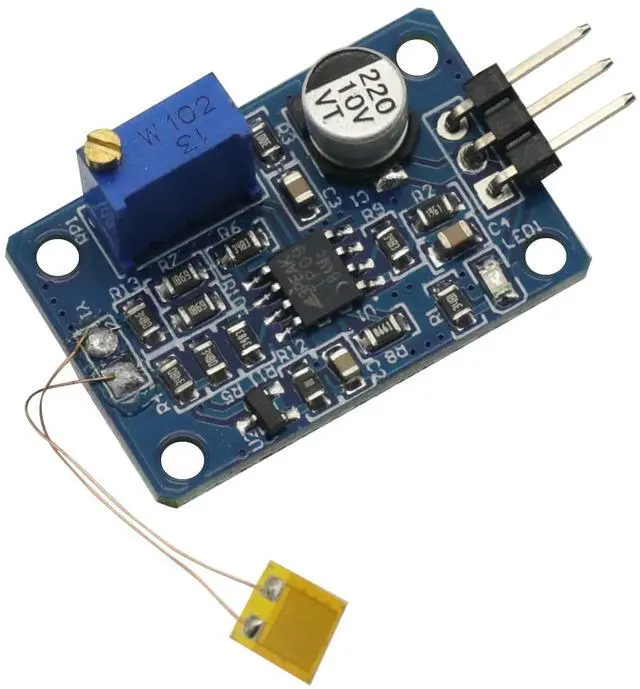

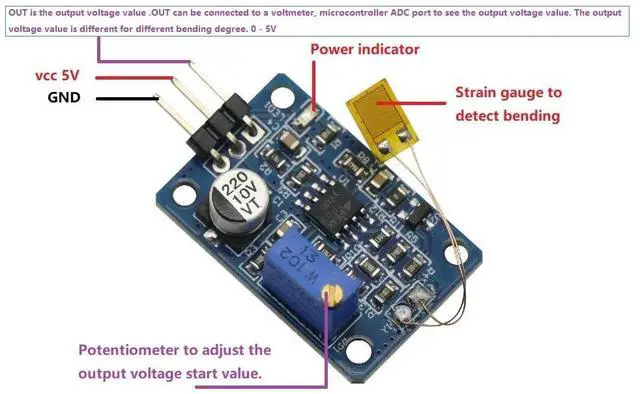

Product introduction Voltage: 5 v Diode reverse protection ~ (to prevent power supply meet the) On a board with a blue LED power light Analog output The higher the bending, the greater the output voltage With zero potentiometer Can use potentiometer to adjust output starting voltage 0- 3.5 V output analog voltage

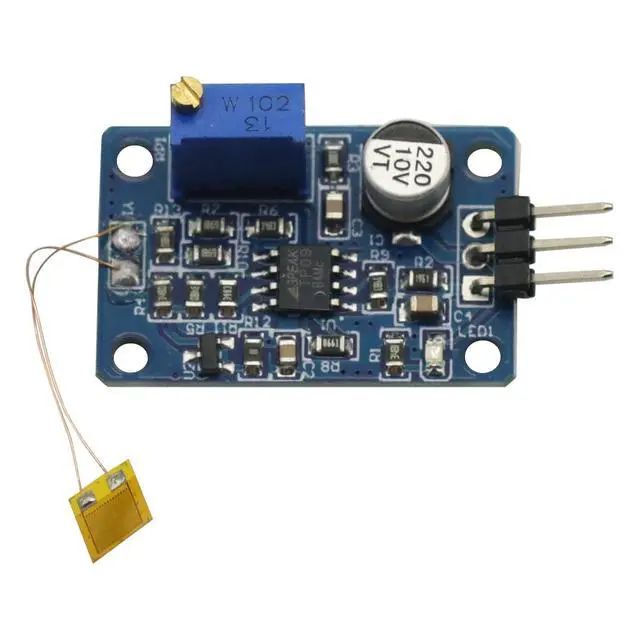

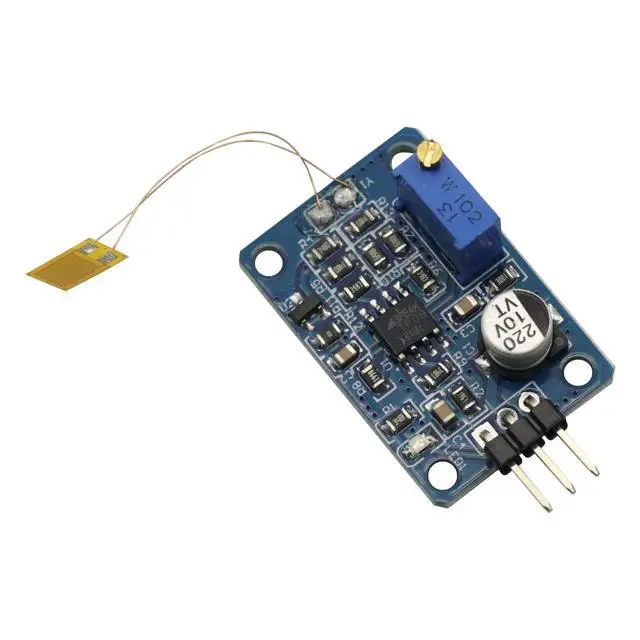

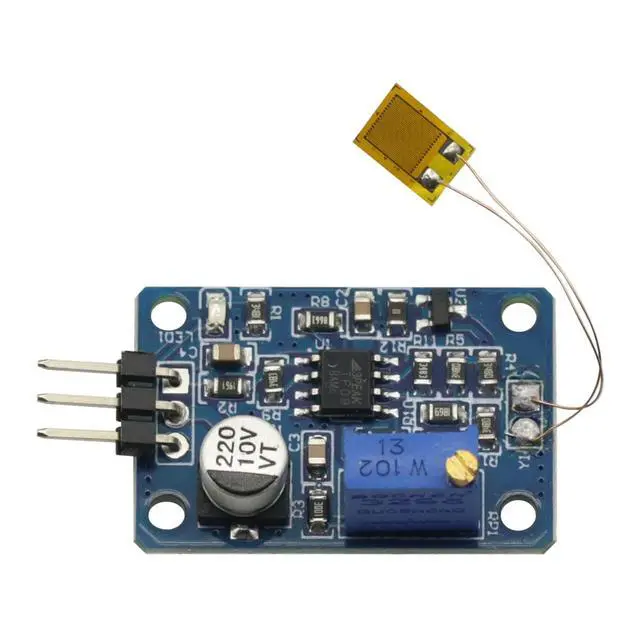

The board size: 32 X 17 mm The board back output pin definition (bending strain gauge Can change output voltage)
Q: how does this use, principle? This is bend sensor Detecting principle is also, bending degree of conversion, the strain gauge on the carrier, such
as: iron and aluminum plastic sheet Then bend the carrier, bending strain gauge detected output voltage will change. Can stick strain gauge on any objects, bending test, and then we bending module switching voltage.
