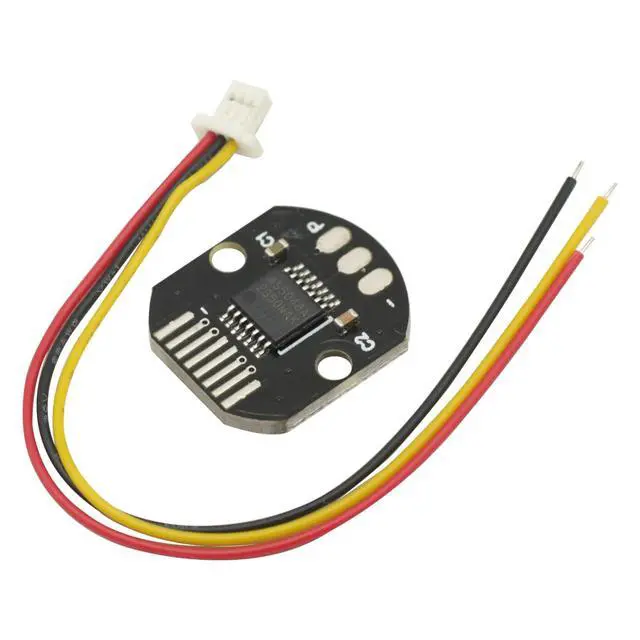

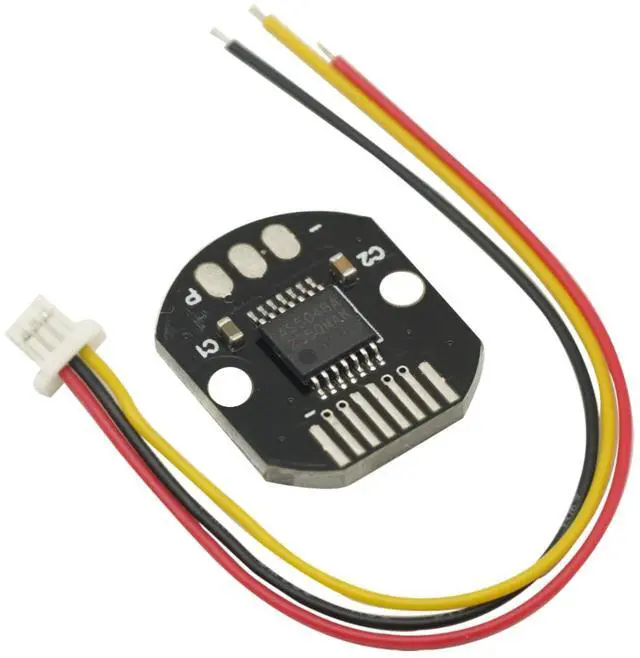

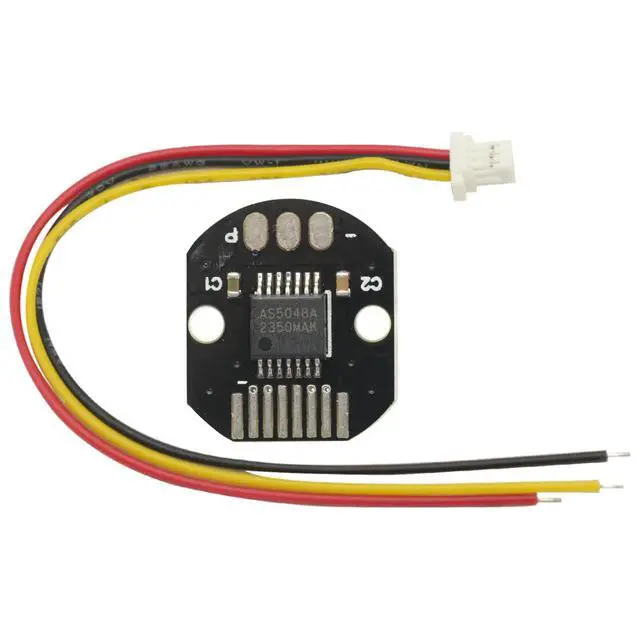

AS5048A Magnetic Encoder PWM and SPI Interface 14bit High Precision Magnetic Induction Angle Measurement Sensor Module Board

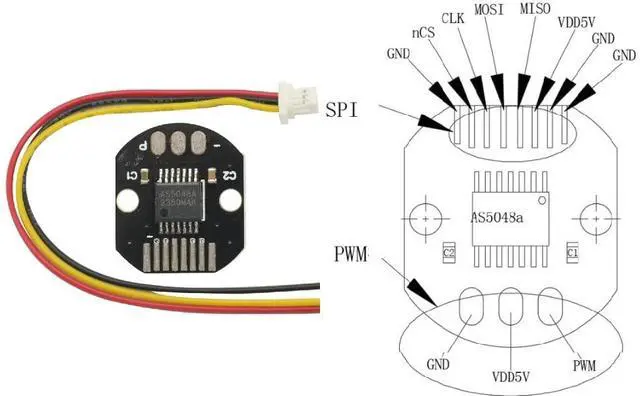

- AS5048A Magnetic Encoder PWM and SPI interface 14bit High precision Magnetic induction Angle measurement sensor Module Board; 360°contact Angle position sensor; Standard SPI or high-speed I2C interface; Pulse width modulation output (PWM); simple programmable zeros via SPI or I2C; AS5048A encoder/code disk, high precision 14bit (bit);
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Product description AS5048A Magnetic Encoder PWM and SPI interface 14bit High precision Magnetic induction Angle measurement sensor Module Board 1.360 °contact Angle position sensor 2. Standard SPI or high-speed I2C interface 3. Pulse width modulation output (PWM) 4. simple programmable zeros via SPI or I2C The command 1. No programming required 2.14 full range resolution is 0.0219 ° / LSB 3. the system after linearization 0.05 ° Angle precision° On average 1. Daisy chain function 2. Air space resistance
Field input range: 30MT- out of 70mT To 40 ° C to + 150 ° C temperature range 3.3 v /5V compatibility 4. 14 pin TSSOP encapsulation (5x 6.4 mm)
Package included: 1 x AS5048 encoder
Size: AS5048A
Field input range: 30MT- out of 70mT To 40 ° C to + 150 ° C temperature range 3.3 v /5V compatibility 4. 14 pin TSSOP encapsulation (5x 6.4 mm)
Package included: 1 x AS5048 encoder
Size: AS5048A
