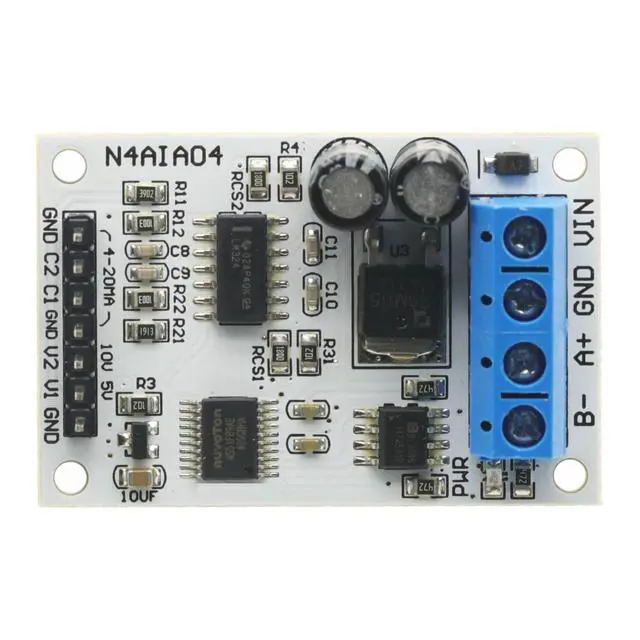

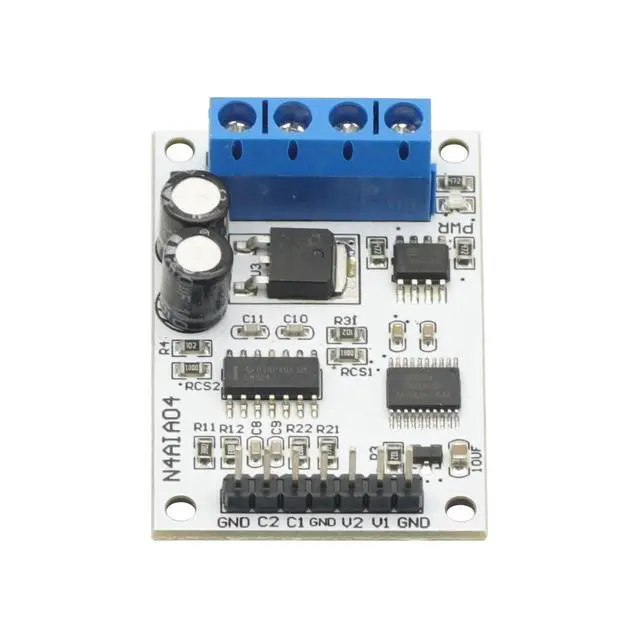

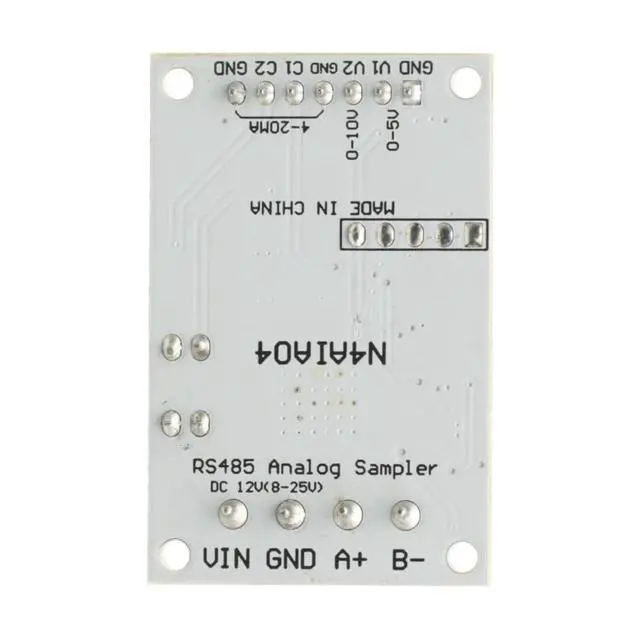

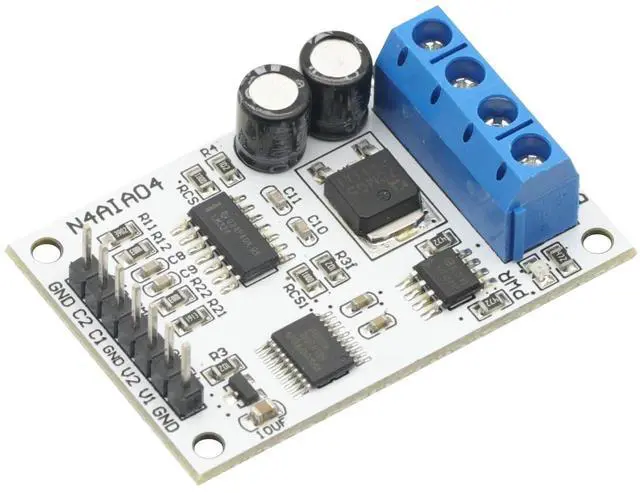

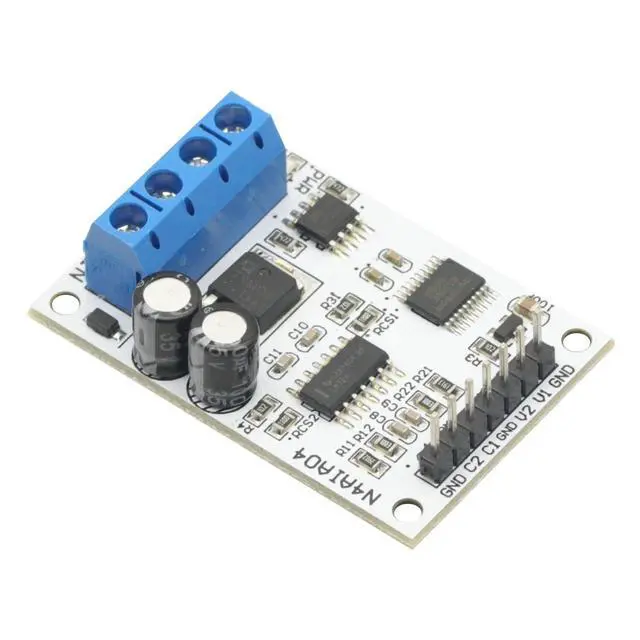

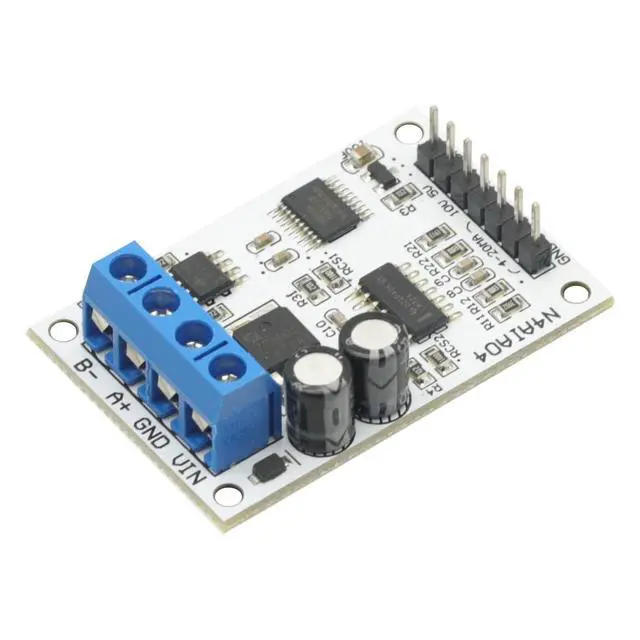

DC 12V 4-20mA 0-5V 0-10V Voltage Signal Acquisition RS485 Modbus RTU Module for PLC Current Transmitter Measuring Instruments
- DC 12V 4-20mA 0-5V 0-10V Voltage Signal Acquisition RS485 Modbus RTU Module for PLC Current Transmitter Measuring Instruments; Operating Voltage : DC 8-24V(DC 9V 12V 15V 24V); Operating Current : 10-14MA; Under the MODBUS command mode, it can support up to 247 devices in parallel; 4-20MA/0-20MA Sensor,Voltage/Current analog acquisition,Automated industry PLC
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Product description DC 12V 4-20mA 0-5V 0-10V Voltage Signal Acquisition RS485 Modbus RTU Module for PLC Current Transmitter Measuring Instruments Description:
1: Operating
Voltage: DC 8-24V (DC 9V 12V 15V 24V) 2: Operating
Current: 10-14MA
3: MODBUS RTU Command support 03 06 function code 4: V1 (CH1) channel voltage measurement range is 0-5V, V2 (CH2) channel voltage measurement range is 0-10V, C1/C2(CH3/4) channel current measurement range is 0-20MA/4-20MA 5: Voltage resolution is 0.01V, measurement accuracy is 1%; current resolution is 0.1MA, measurement accuracy is 1%; if the error is greater than 1%, it
can be calibrated 6: MODBUS commands can be made serial (serial assistant)

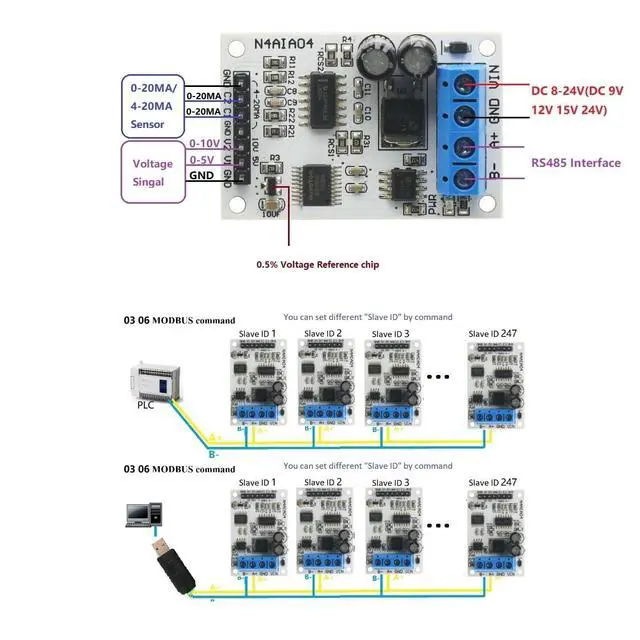

OR PLC Enter; 7: Under the MODBUS command mode, it can support up to 247 devices in parallel 8:
Size: 45 * 30 * 15mm 9:
Weight: 11 g Application 4-20MA/0-20MA Sensor Voltage/Current analog acquisition Automated industry PLC Smart Home, Home Automation; Identification system; RS485 Remote monitoring; Multimeter voltmeter Electronic Measuring Instruments
1: Operating
Voltage: DC 8-24V (DC 9V 12V 15V 24V) 2: Operating
Current: 10-14MA
3: MODBUS RTU Command support 03 06 function code 4: V1 (CH1) channel voltage measurement range is 0-5V, V2 (CH2) channel voltage measurement range is 0-10V, C1/C2(CH3/4) channel current measurement range is 0-20MA/4-20MA 5: Voltage resolution is 0.01V, measurement accuracy is 1%; current resolution is 0.1MA, measurement accuracy is 1%; if the error is greater than 1%, it
can be calibrated 6: MODBUS commands can be made serial (serial assistant)
OR PLC Enter; 7: Under the MODBUS command mode, it can support up to 247 devices in parallel 8:
Size: 45 * 30 * 15mm 9:
Weight: 11 g Application 4-20MA/0-20MA Sensor Voltage/Current analog acquisition Automated industry PLC Smart Home, Home Automation; Identification system; RS485 Remote monitoring; Multimeter voltmeter Electronic Measuring Instruments
