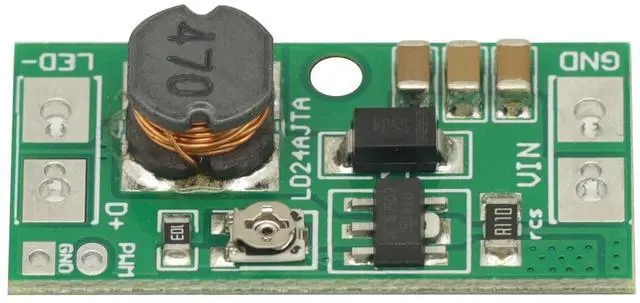

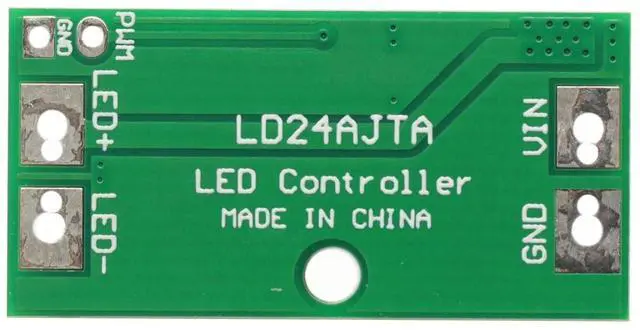

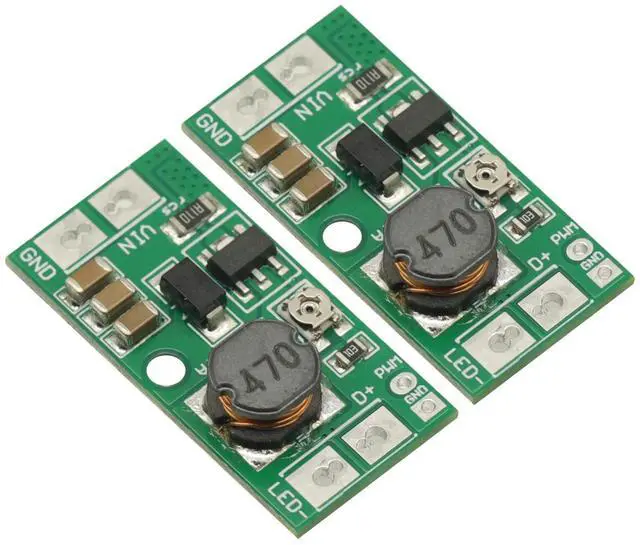

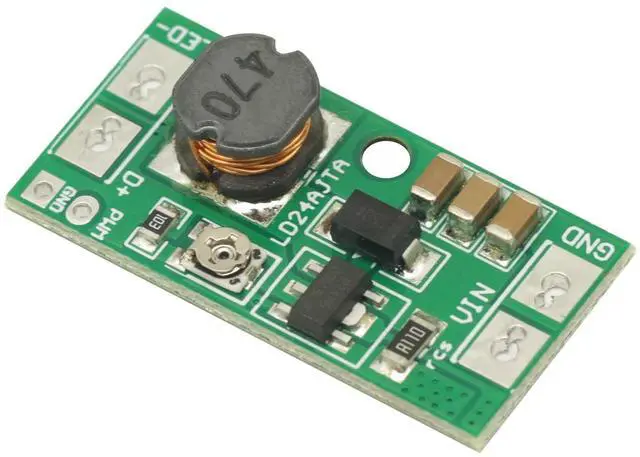

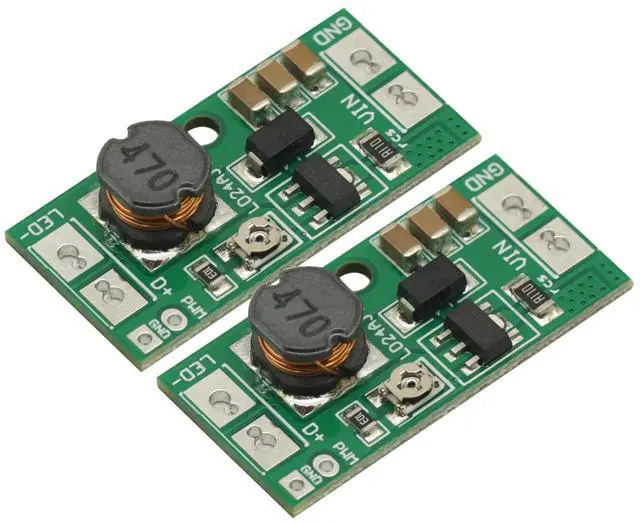

2Pcs DC9V 12V 18V 24V 6~25V 20W Adjustable LED Driver PWM Controller DC-DC Step-Down Constant Current LED Driver Converter
- 2Pcs DC 9V 12V 18V 24V 20W Adjustable LED Driver PWM Controller DC-DC Step-down Constant Current LED Driver Converter; 6-25V 900mA Step-down High Brightness LED Driver with 5000:1 Dimming; Working voltage : DC 6-25V(Perfect for 6V 9V 12V 18V 24V LED or LED strip); Output Current: 30-900MA;By changing the RCS resistance, the maximum current can reach 1200MA; Maximum output power: 20W; Current regulation: 1 through adjustable resistance; 2 through PWM control
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Product description 2Pcs DC 9V 12V 18V 24V 20W Adjustable LED Driver PWM Controller DC-DC Step-down Constant Current LED
Driver Converter Description: 6-25V 900mA Step-down High Brightness LED Driver with 5000:1
Dimming Working voltage: DC 6-25V (Perfect for 6V 9V 12V 18V 24V LED or LED strip)
Output Current: 30-900MA; By changing the RCS resistance, the maximum current can reach 1200MA
Maximum output power: 20W
Current regulation: 1 through adjustable resistance; 2 through PWM control Single pin on/off and brightness control using DC voltage or PWM Up to 1MHz switching frequency Typical 5% output current accuracy Inherent open-circuit LED protection High efficiency (up to 97%)
High-Side Current Sense Hysteretic Control: No Compensation Adjustable Constant LED
Current Size: 30mm x 15mm x 6.3 mm

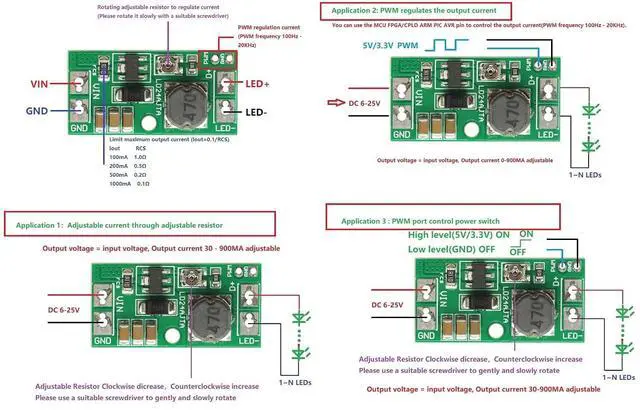

Application 1: Wiring in accordance with the following figure, use a suitable screwdriver gently and slowly rotate the adjustable resistance.
Application 2: Ignore the adjustable resistance, control the output current through the PWM port, the current is 0-900MA adjustable
Application 3: Add an enable control switch based on application 1.
Driver Converter Description: 6-25V 900mA Step-down High Brightness LED Driver with 5000:1
Dimming Working voltage: DC 6-25V (Perfect for 6V 9V 12V 18V 24V LED or LED strip)
Output Current: 30-900MA; By changing the RCS resistance, the maximum current can reach 1200MA
Maximum output power: 20W
Current regulation: 1 through adjustable resistance; 2 through PWM control Single pin on/off and brightness control using DC voltage or PWM Up to 1MHz switching frequency Typical 5% output current accuracy Inherent open-circuit LED protection High efficiency (up to 97%)
High-Side Current Sense Hysteretic Control: No Compensation Adjustable Constant LED
Current Size: 30mm x 15mm x 6.3 mm
Application 1: Wiring in accordance with the following figure, use a suitable screwdriver gently and slowly rotate the adjustable resistance.
Application 2: Ignore the adjustable resistance, control the output current through the PWM port, the current is 0-900MA adjustable
Application 3: Add an enable control switch based on application 1.
