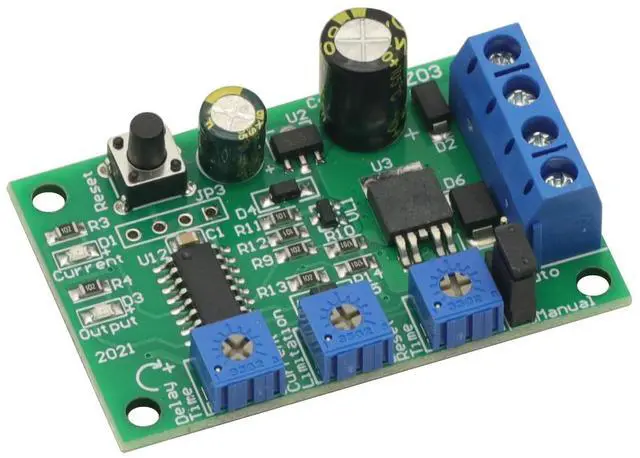

10A 6-24V DC Motor Overcurrent Protection Board Blocked Rotor Overload Protector Module Adjustable Current Limit Switch 12V 24V

Product description 10A 6-24V DC Motor Overcurrent Protection Board Blocked Rotor Overload Protector Module Adjustable Current Limit Switch 12V 24V

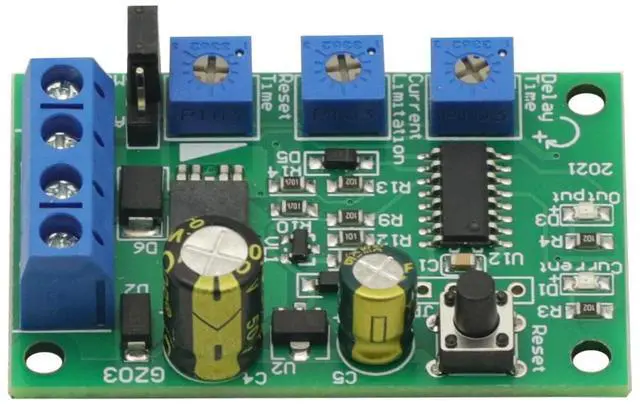

Features: DC Overload Protector used for overcurrent protection, short circuit protection, motor blocked protection, auto-stop overload protection. The input voltage is DC 6V-28V
Output current: 8A max (resistance load); 5A max (motor load) The protected
Delay Time: 0-20s The
Current Limitation: 0.2A -10A

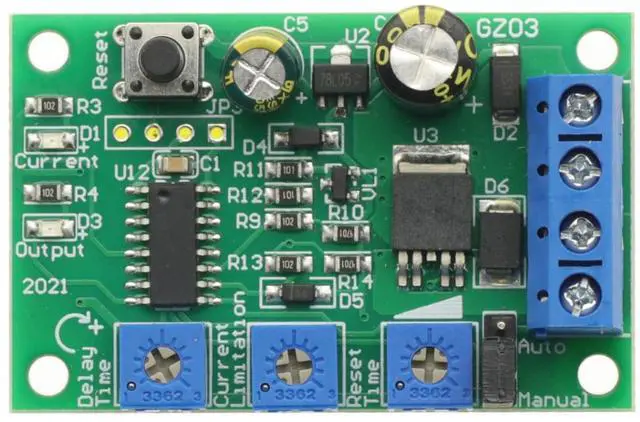

The Reset Time: 1-600s (automatic mode) Include Power-on LED and current-limit-protected alarm LED Adjustable current limitation, Adjustable protected delay time, and Adjustable reset time
Item size: 32mm * 50mm * 15mm ( 1.3" * 2" * 0.6" )
Operating Instruction: Before you attempting to wire the protector, make sure power is off.

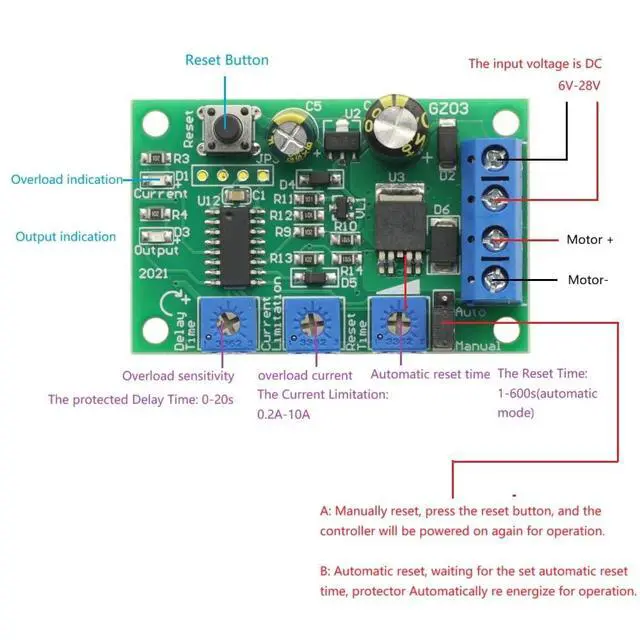

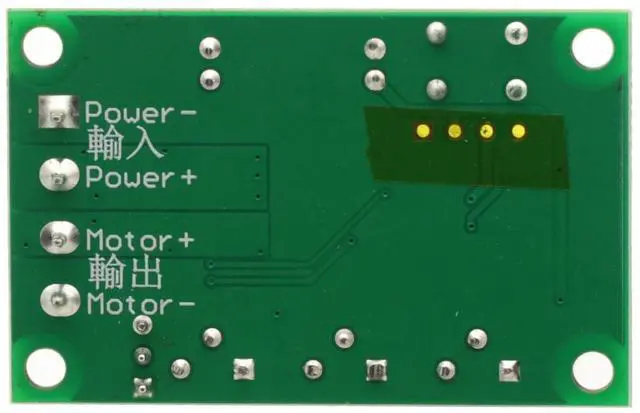

1. Connect wires refer to the "wiring diagram"

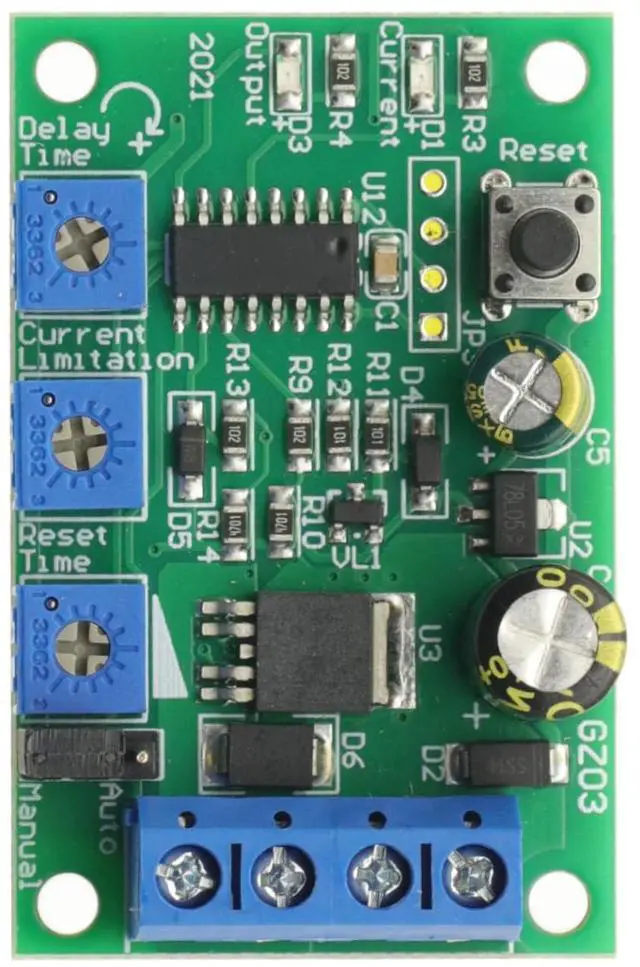

2. Install the jumper to Auto or Manual modes. (Default is automatic mode. )
3. Set parameters of Current Limitation, Delay Time and Reset Time (automatic mode).
4. Turn on the power.

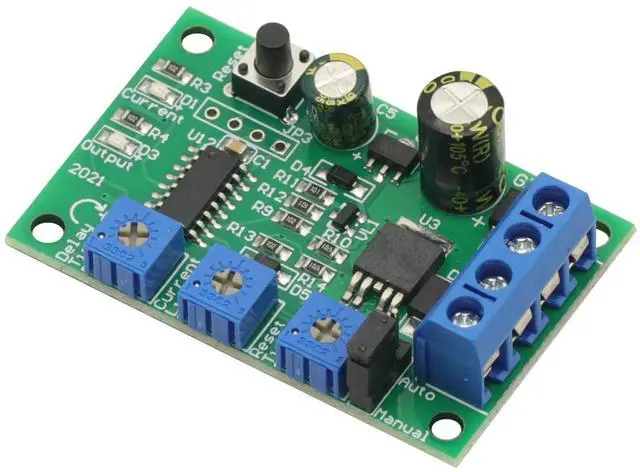

Current Limit Adjustment: When the red alarm LED is lighting, eliminate the overcurrent factors, it will automatic reset (automatic mode), or push the Reset Button, reset the power (Manual Mode). Reset the current limitation pot should as follow:
1. Turn off the power.
2. Adjust the Current Limitation pot until the desired maximum current is reached.
3. Reset the power.
Package Includes: 1 x DC Current Overload Protector
