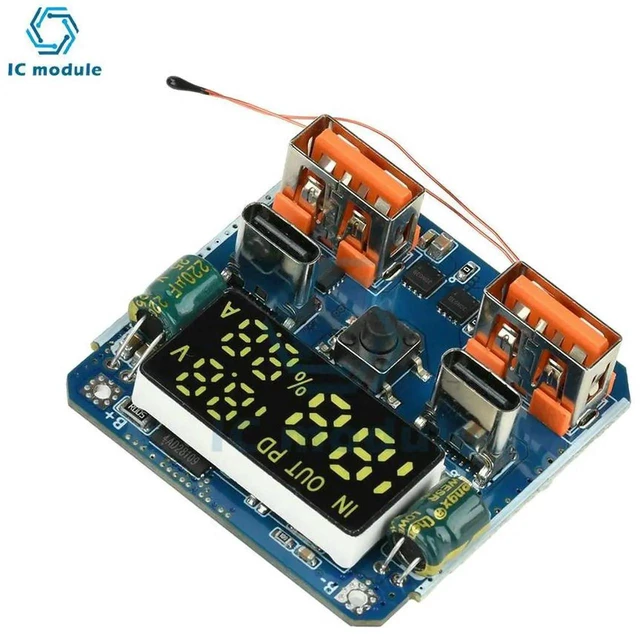

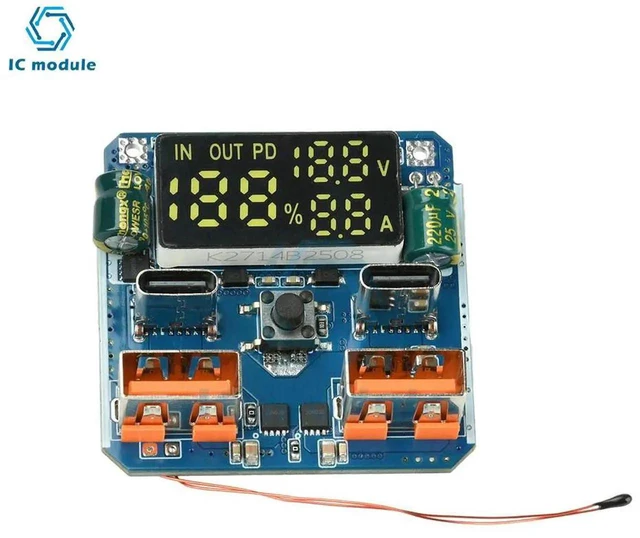

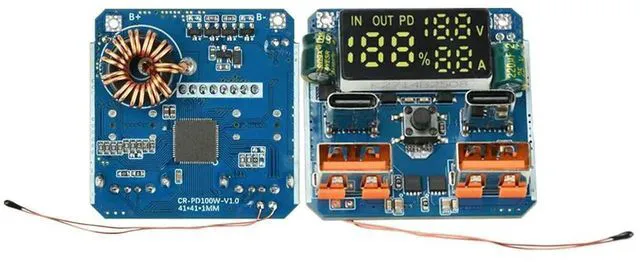

AJMRTC 4S PD 100W Bidirectional BuckBoost Module, 20V 5A HighPower Lithium Battery Charger Discharger, PD Fast Charging Step Up Down Power Converter Module for DIY Electronic Project
- 4S PD 100W bidirectional buckboost power module, supports both lithium battery charging and discharging, max 20V 5A highpower output for DIY powerrelated projects.
- PD fast charging compatible design, realizes bidirectional energy conversion, stepup and stepdown function for flexible voltage adjustment in different power supply scenarios.
- Stable circuit structure with multiple builtin protection mechanisms against overvoltage, overcurrent and shortcircuit, improves safety during battery charge and discharge cycles.
- Compact power converter module, ideal for lithium battery power supply modification, portable power station building, experimental development and electronic equipment transformation.
- Please follow correct wiring specification for operation; basic electronic knowledge is required, improper wiring may cause module damage or safety risk.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
AJMRTC 4S PD 100W bidirectional buckboost module is a highperformance lithium battery charge and discharge integrated power converter module, rated for maximum 20V 5A power capacity. It supports PD fast charging protocol and realizes bidirectional energy transmission, capable of completing stable stepup and stepdown voltage conversion.
This module works as both lithium battery charger and discharger. It can use PD power supply to charge 4S lithium battery pack, and also convert battery energy into stable output voltage to supply power for external loads. Multiple safety protection circuits are embedded on the board to prevent overvoltage, overcurrent, shortcircuit and reverse connection risks during chargedischarge circulation, protecting the module and connected lithium cells.
Compact board size makes it fit various DIY development demands. Widely applied in homemade portable power stations, lithium battery power transformation, laboratory power test, electronic equipment modification and other DIY electronic projects. Notice: correct wiring must be strictly followed. Users should possess basic electronic operation experience. Wrong connection will burn out the module and battery.
SpecificationsBrand: AJMRTC Product Name: 4S PD 100W Bidirectional BuckBoost Module Max Power: 100W Max Current: 5A Output Voltage: 20V Function: Bidirectional Charge & Discharge, StepUp StepDown Conversion Supported Battery: 4S Lithium Battery Charging Protocol: PD Fast Charging Protection Feature: Overvoltage, Overcurrent, Shortcircuit Protection Application: DIY Power Station, Electronic Development Project Package Content: 1 × Bidirectional BuckBoost Module
