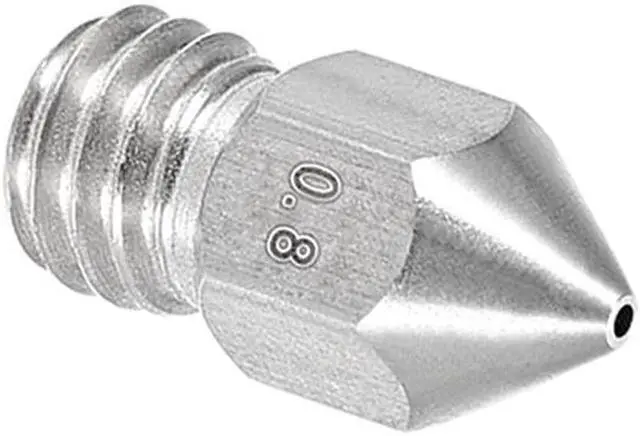

0.8mm 3D Printer Nozzle, Fit for MK8, for 1.75mm Filament Stainless Steel 5pcs

Feature:

Stamp size on surface, convenient to pick the one you need.

The hole of print nozzle is consistent size and machining, the thread is clean and well formed.

Extruder brass print heads are usually applied to print non-abrasive material filaments such as PLA, ABS, PCL etc.

Specification:

Fit for 3D
Printer: MK8

Material: Stainless Steel

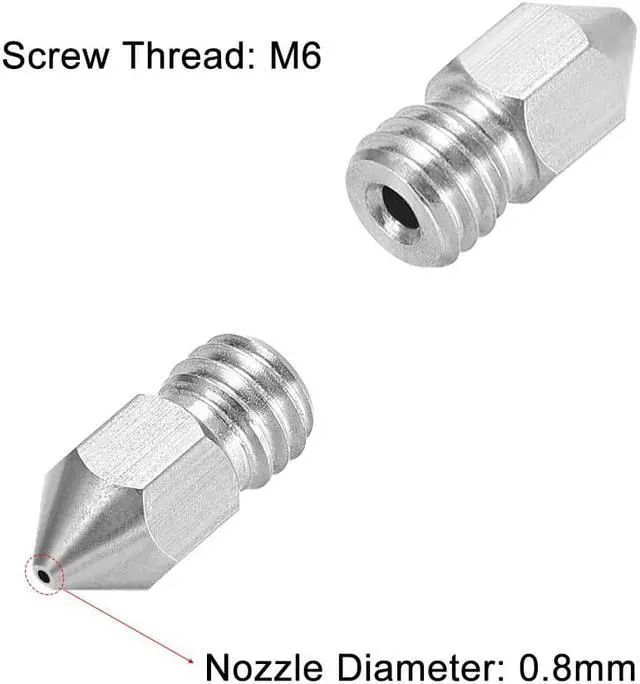

Screw Thread: M6

Thread Length: 5mm

Nozzle Diameter: 0.8 mm

Input Diameter: 2mm

Fit Filament Diameter: 1.75 mm

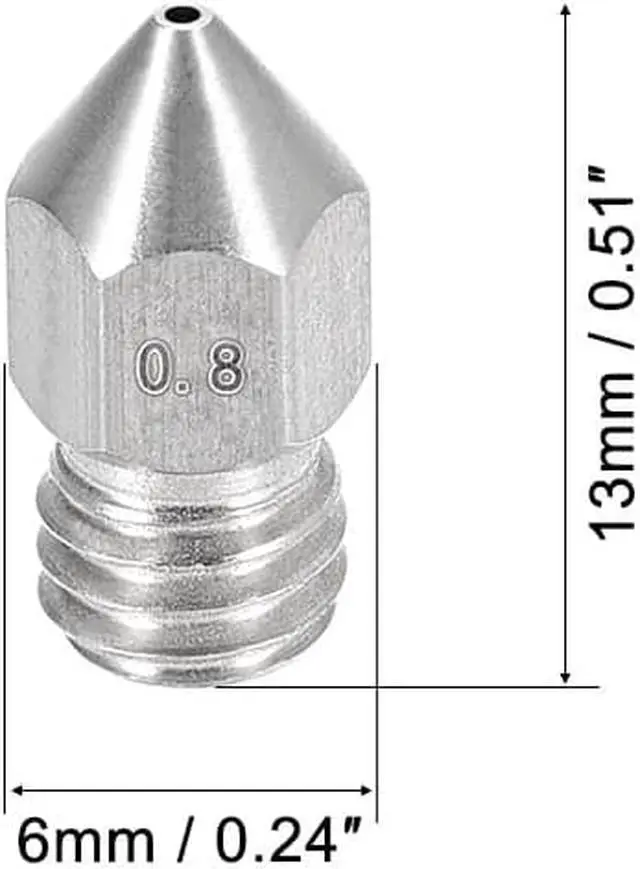

Overall Size: 13 x 6 mm / 0.51 x 0.24 inch (L*D)

Package Content:

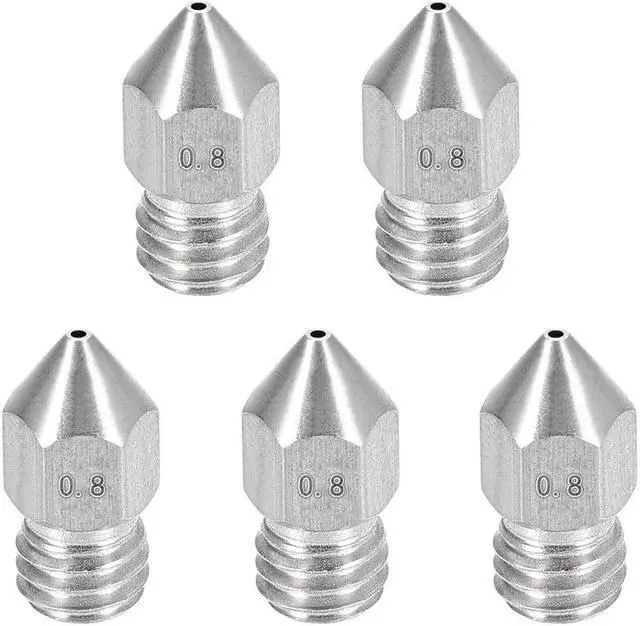

5 x Nozzle

NOTE:

Small accessories, please keep away from kiddie.

After replacing the nozzle, please recalibrate the distance between nozzle and build plate to ensure the quality of print parts.

How to Replace Nozzles?

1: Turn on 3D printer, heat the nozzle and heat block to the target temperature (PLA: 180-220, ABS: 240-280)
.

2: After heat finishing, close printer, take spanner to hold the heat block. Then use socket screwdriver to screw old nozzle extruder out.

Notice: Please don’t touch the old nozzle and heat block to avoid scalding.

3: Spanner keep to hold the hear block, use the socket screwdriver screw the new nozzle in, make sure tight.
