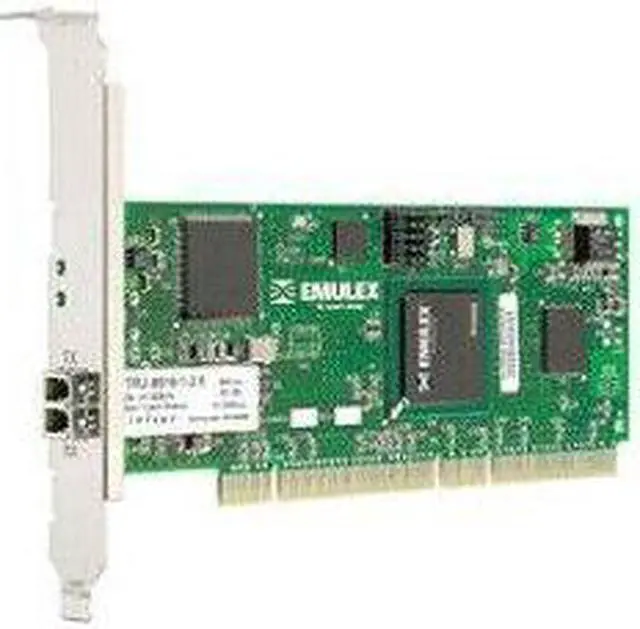

Emulex LightPulse LP982 PCI-X host bus adapter

The LP982 PCI-X host bus adapter offers a highly integrated 2Gb/s Fibre Channel HBA for use in servers based on either PCI or the latest PCI-X expansion bus. The LP982 delivers exceptional performance through the use of an Emulex Pegasus ASIC, a 266MIPs onboard processor, an embedded 1Gig/2Gig SERDES, and a high performance unified QDR SRAM. The LP982 features automatic topology detection and automatic speed negotiation capability. These capabilities allow complete compatibility with existing 1Gb/s Fibre Channel SANs, while allowing seamless upgrades to higher speed 2Gb/s SANs.

The features of this PCI-X based HBA provide the flexibility and broad interoperability needed for complex, highly scalable SANs. The LP982 provides a combination of features, fabric support using F_Port and FL_Port connections, full-duplex data transfers, high data integrity features, support for all Fibre Channel topologies, and support for service classes 2 and 3.

Features

* Product Type: Fibre Channel Host Bus Adapter
* Number of LC Ports: 1
* Total Number of Fibre Channel Ports: 1
* Fibre Channel Class Supported: Class 2
* Fibre Channel Class Supported: Class 3
* Brand Name: Emulex
* Data Transfer Rate: 1.06 Gbit/s
* Data Transfer Rate: 2.13 Gbit/s
* Topology: Point-to-Point
* Topology: Arbitrated Loop
* Topology: Switched Fabric
* Host Interface: PCI
* Host Interface: PCI-X
* Product Type: Fibre Channel Host Bus Adapter
* Fiber Optic Cable Standard: 62.5/125 µm
* Fiber Optic Cable Standard: 50/125 µm
* Number of LC Ports: 1
* Media Type Supported: Optical Fiber
* Fiber Mode Supported: Multi-mode
* Total Number of Fibre Channel Ports: 1
* Height: 2.5"
* Width: 6.6"
* Fibre Channel Class Supported: Class 2
* Fibre Channel Class Supported: Class 3
* Brand Name: Emulex
* Compatibility:

Driver Support:

• Windows Server 2003
• Windows 2000
• Windows NT
• Linux
• NetWare
• 66/100/133MHz PCI-X 1.0a and PCI 2.2 compatibility

* Form Factor: Low-profile MD2
* Product Name: LightPulse LP982 PCI-X host bus adapter
* Data Transfer Rate: 1.06 Gbit/s
* Data Transfer Rate: 2.13 Gbit/s
* Product Line: LightPulse
* Topology: Point-to-Point
* Topology: Arbitrated Loop
* Topology: Switched Fabric
* Limited Warranty: 3 Year
* Host Interface: PCI
* Host Interface: PCI-X
